Features
1. With function of REF, KER, K&R, CLBC, SIZE, RMK-70O can meet all of your measurement requirement.
2. Convenient trying on mode, patient can experience the measurement result on the machine. Omitting all the trouble of trying again and again.
3. Z-map measurement mode is much more vivid than traditional cornea measuring. By the result of outputing to PC, the patient can understand all the details of his vision.
PRECISION

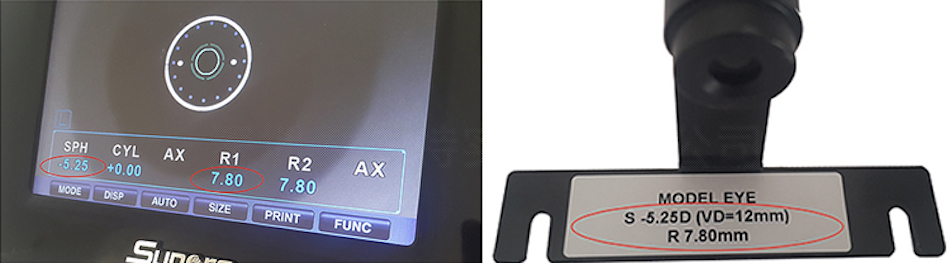

In the comparison test of refraction accuracy, we take the result of the test eye as the standard, where the result is accurate,Ref is -5.25, Ker. In units of 7.80 mm
Modo Z-MAP

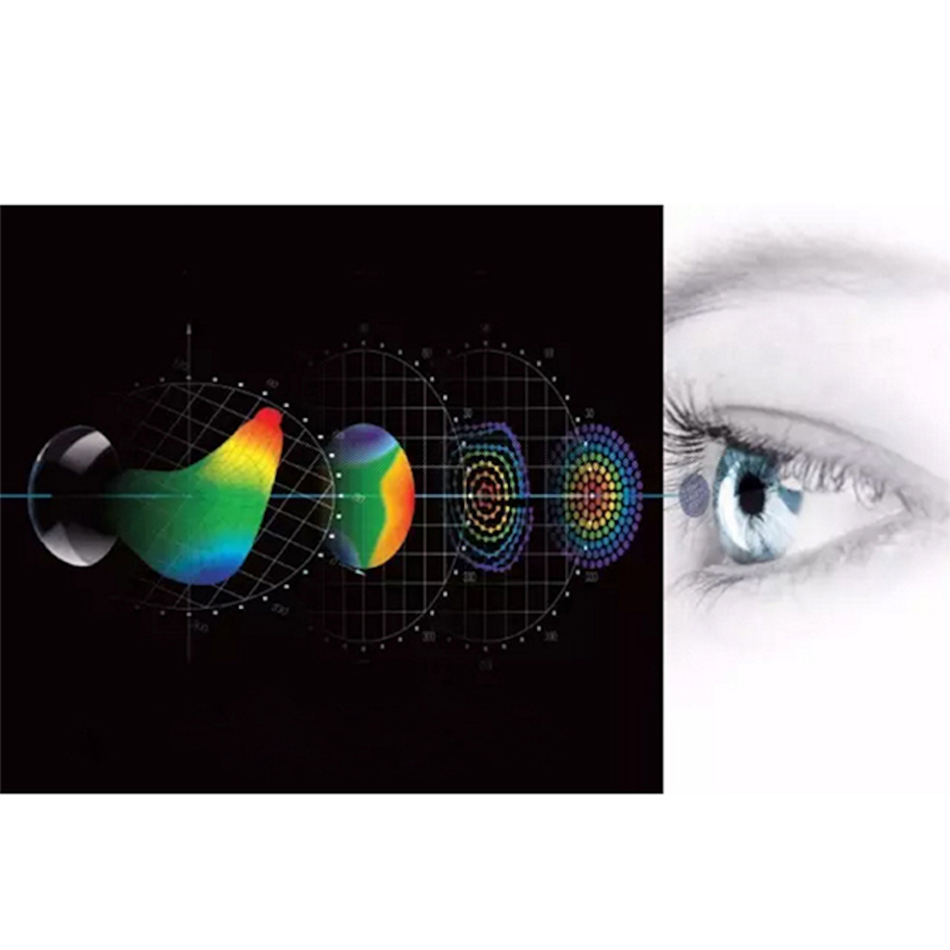

Wavefront technology, which measures and maps imperfections of the cornea, these imperfections are divided into low-order aberrations such as: Myopia, Hyperopia and Astigmatism, and high-order aberrations that affect night vision.
The Hartmann-Shack sensor projects waves of light into the patient's eye and maps the waves that are projected through the pupil by detecting low and high order aberrations.

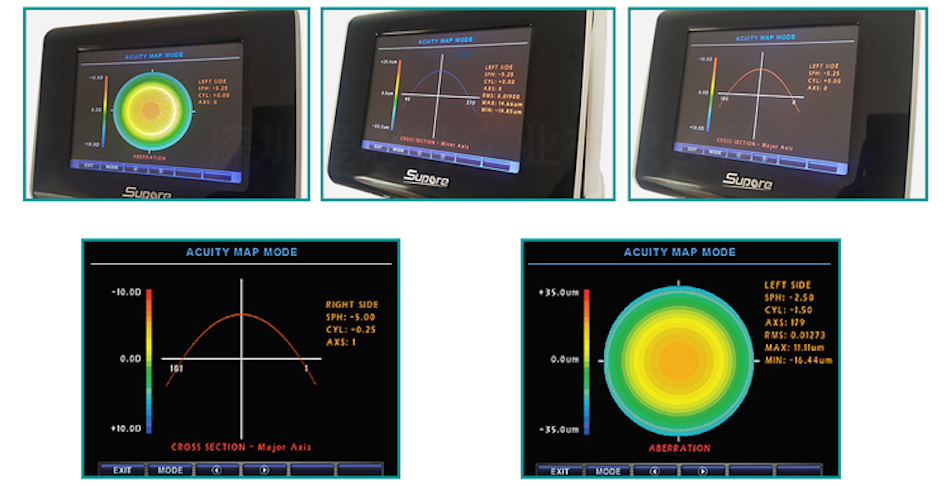

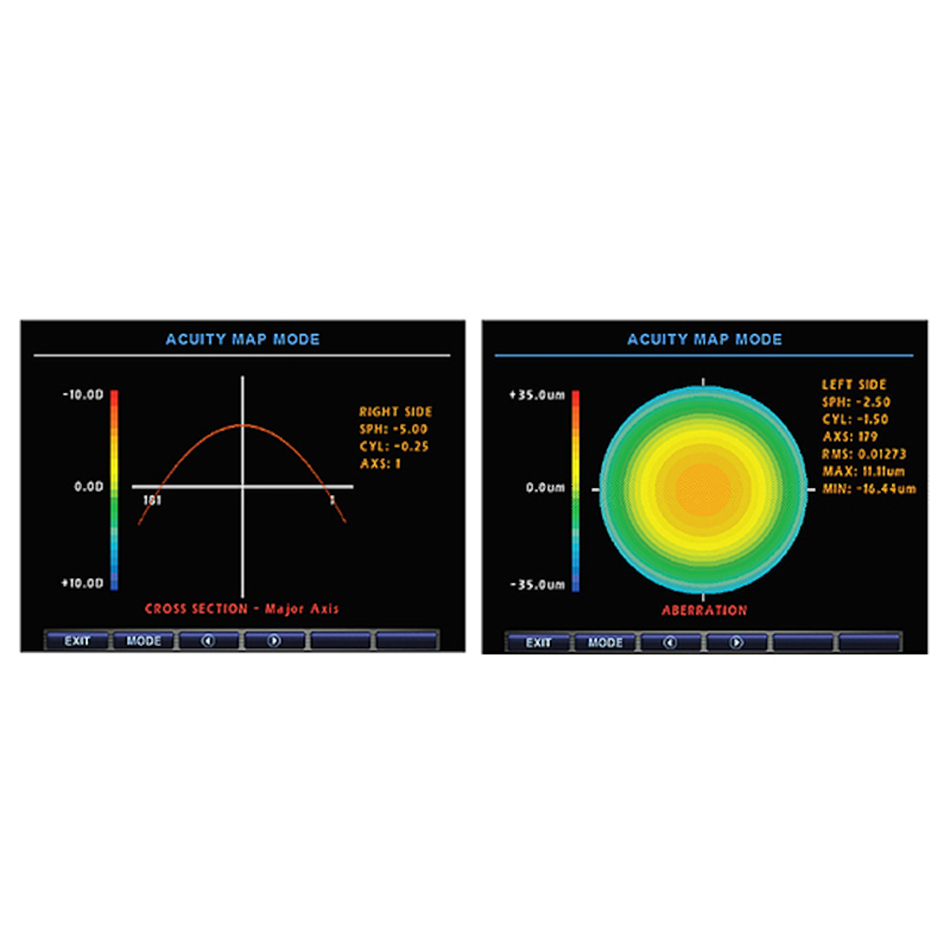

The information obtained is processed on the computer and is called the Zernike map, which can be seen in the following images.
Specifications
Technical parameter | |
Vertex Distance: | 0.0mm,12.00mm,13.5mm,15.00mm |
Spherical Degree: | -20.00D~20.00D,(VD=12mm,step:0.12D/0.25D) |
Cylinder degree : | -10.00D~+10.00D(step:0.12D/0.25D) |
Axis: | 1°~180°(step1°) |
Cylinder symbol: | -,+,MIX |
The degree of arming turning: | 90° |
Minimum pupil diameter: | 2.0mm |
Radius of curvature: | 6.5mm~9.4mm(step:0.02mm) |
Printer: | Thermal printer |
Monitors : | 6.4inch of TFT monitors |
Power supply: | AC220V,50Hz |
Power: | 75VA |
Product size: | 506L x 269Wx 477H(mm) |
Package size: | 720L x 480Wx 720H(mm) |
Weight: | About 21Kg |
