Features
1. Humanized detail design
2. Comfortable operation and smooth measurement

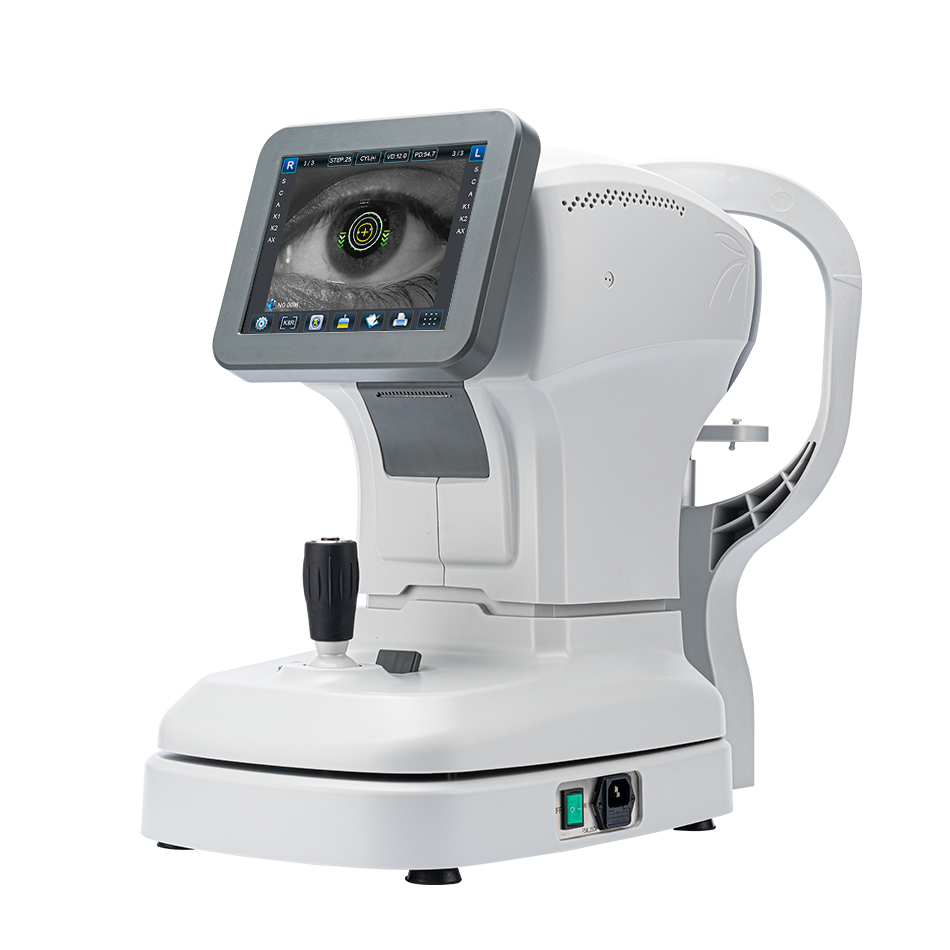

3. Adjustable LCD screen for convenient measurement
4. Hartmann’s Principle
5. New light path design, clear human eye imaging effect
6. The screen can be rotated freely up and down
7. Automatic eye tracking for lifting, automatic measurement
8. Electric lifting amount tow
9. Off-speed printer
10. High-speed image acquisition system, advanced image processing and analysis
Specifications
Range of measurement | Sphere | -20~+20D(VD=12) 0.12D/25D step |
Cylinder | -10~+10D 0.12D/25D step | |
Axis | 0°~180° (1°step) | |
PD | 10-85mm,1mm step | |
VD | 0mm,12mm,13.75mm | |
Min Pupil Size | 2.0mm | |
Keratometry | Corneal apex distance | 0.0, 12.0, 13.75, 15.0 |
Spherical mirror degree | -20.00D ~ + 20.00D (VD = 12mm, 0.01, 0.06, 0.12, 0.25 units) | |
Axis position | 10 ~ 180 ° (1 ° unit) | |
Cornea diopter | 33.00D ~ 67.0D (when the corneal equivalent diopter is 1.3375) | |
Cornea curvature radius | 5.0 ~ 10.0mm (0.01mm accuracy) | |
Measure light energy | <30uw (ensure measurement safety) | |
Others | Stored data | 10 measurements each |

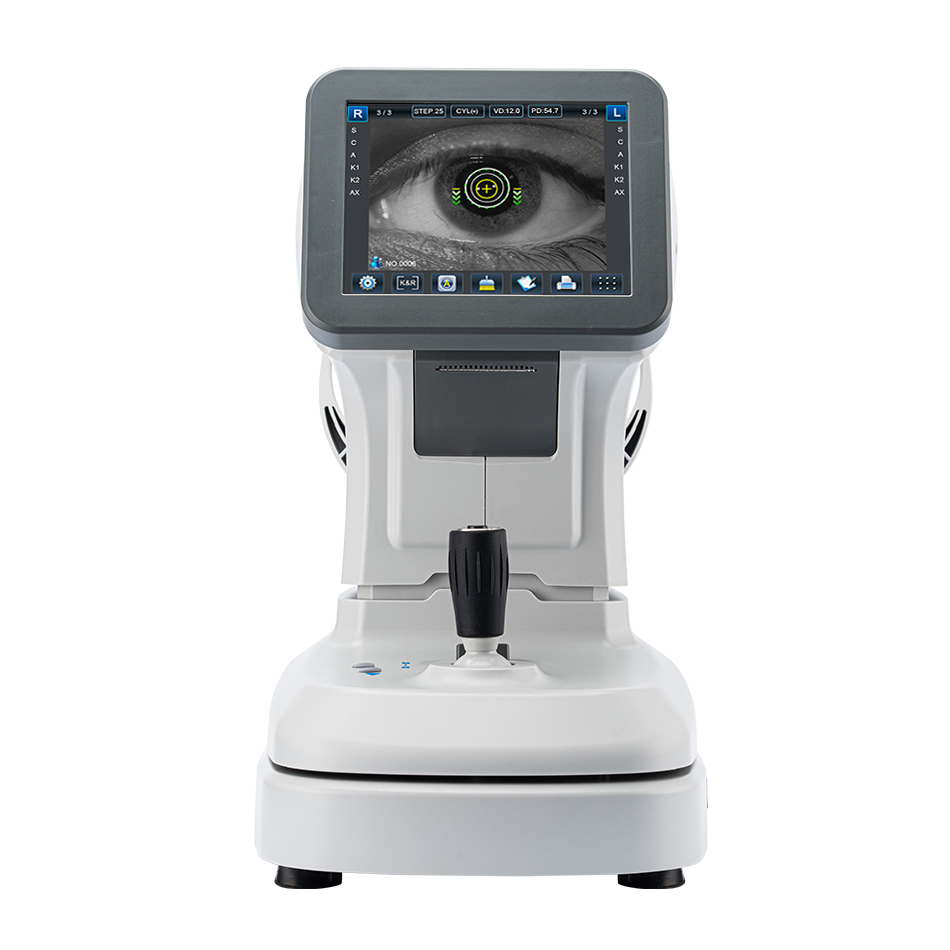

Display | 8-inch TFT touch screen (adjustable viewing angle) | |
57mm thermal printer | ||

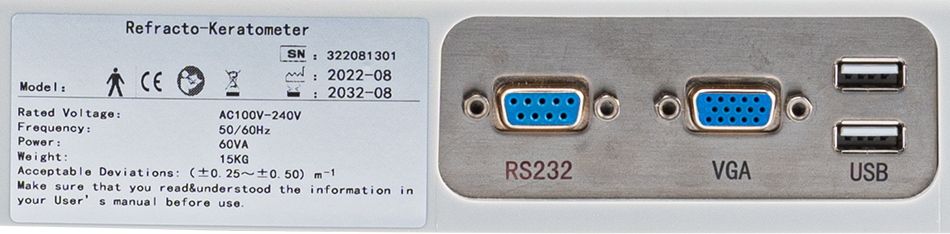

Power supply | AC 100 ~ 250V, 50 / 60Hz, wide power supply | |
Dimension | 680mm x (width) 400mm x (height) 640mm | |
Gross weight | ~26KG |
