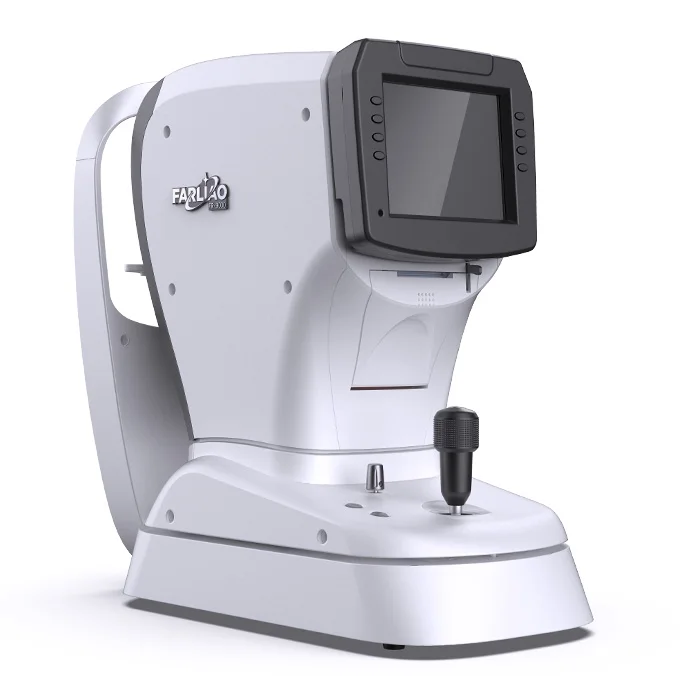

Auto refratometer
FKR-900 with keratometer function
FR-900 Without keratometer function
Main Feature :
1.use rotating prism principle , very high accuracy .
2.6.5" color screen
3.auto measure function
4. Motorized vertical moving auto tracking
5.Motorized joystick automatic
6. IOL function , can measure the eye did cataract surgical before,
Configuration | Specification | |
Diopter measurment | Vertex distance (VD) | 0mm,12.0mm,13.75mm,15.00mm |
Spherical refractive power | -25.00D~+25.00D | |
Cylindrical refractive power | -10D~+10D | |
Direction of astigmatic axis | 0°~180° | |
PD measurement | 10mm~85mm | |
Corneal measurement | Minimum pupil diameter | Φ2.0mm |
Corneal curvature radius | 5mm~10mm | |
Direction of corneal astigmatic axis | 0°~180° | |
Cornea diameter | 2.0mm~12.0mm | |
Product specifications | Monitor | 6.5 inch LCD monitor |
printer | Auto-Cut Data Paper | |
Saving mode | 1/5/10/20/40 minutes automatic screensaver | |
Power supply | AC220V; 50HZ 75VA | |
Dimensions/Weight | 300(W)*450(D)*500-530(H)mm/20Kg | |
