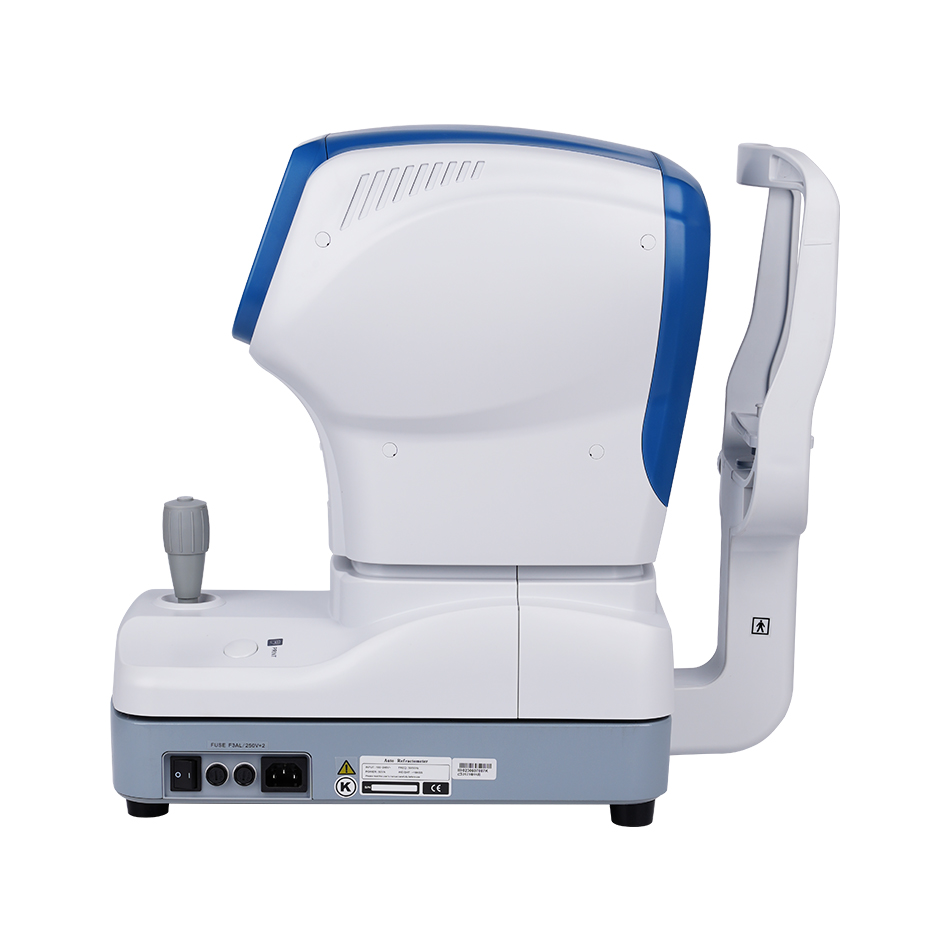

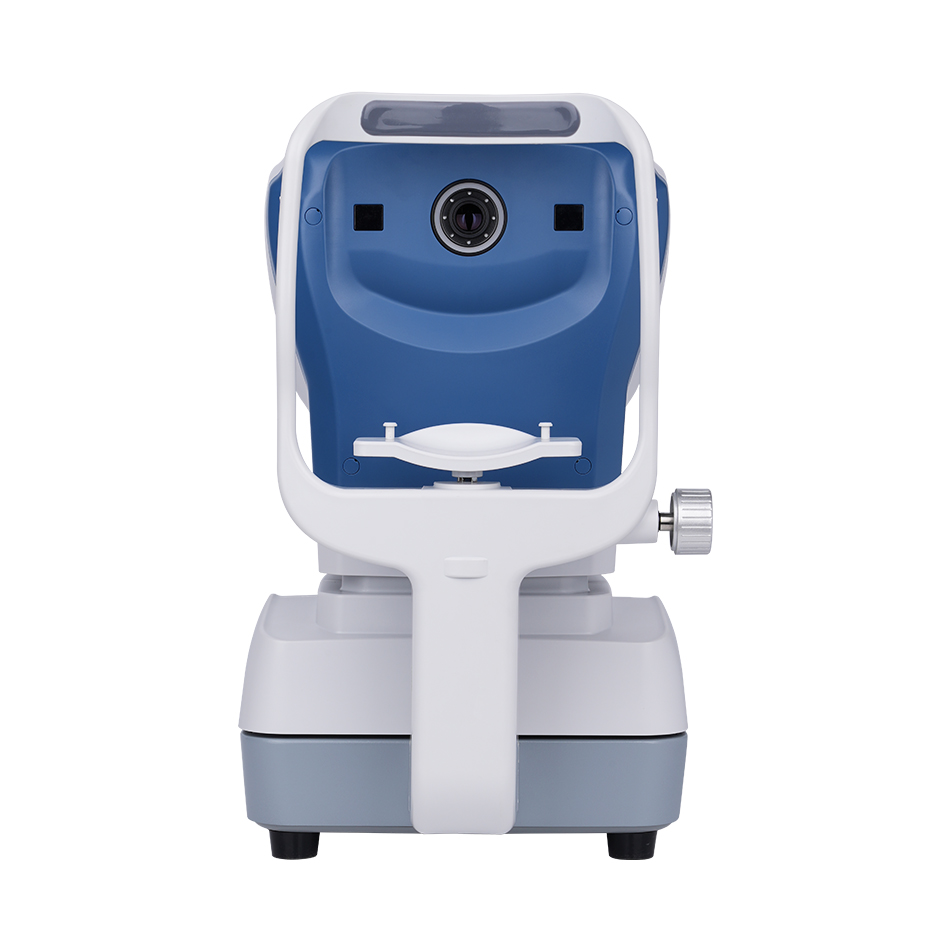

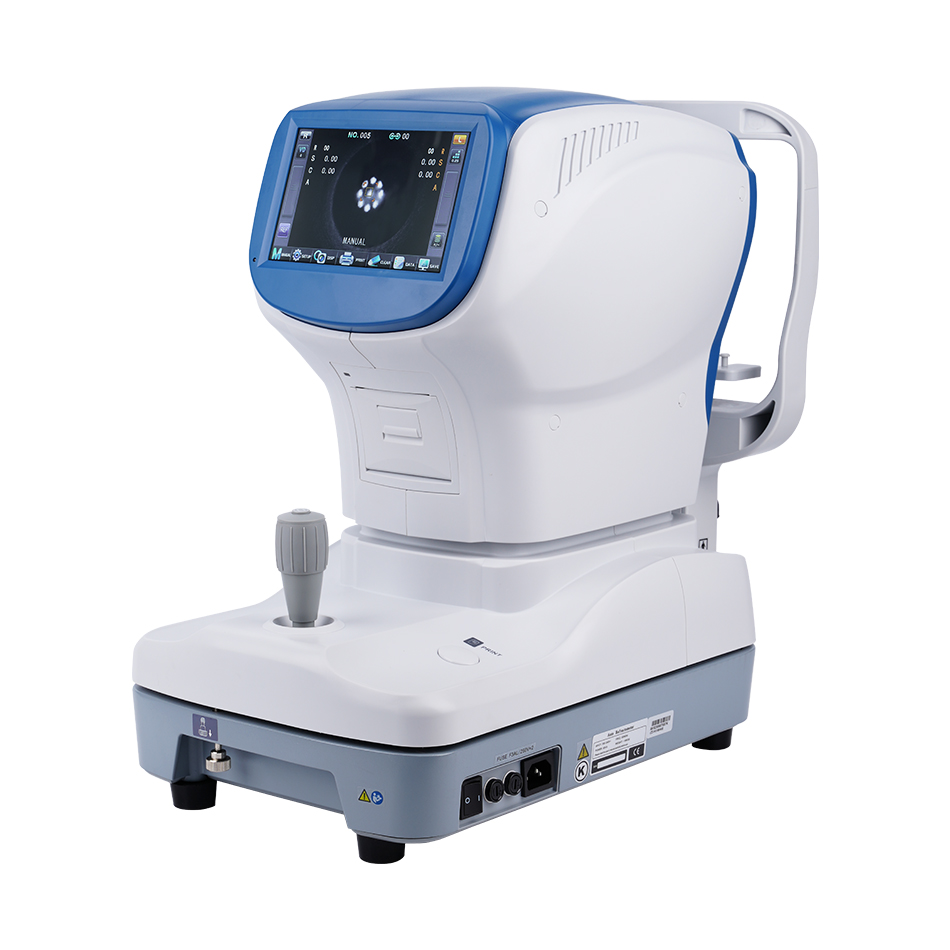

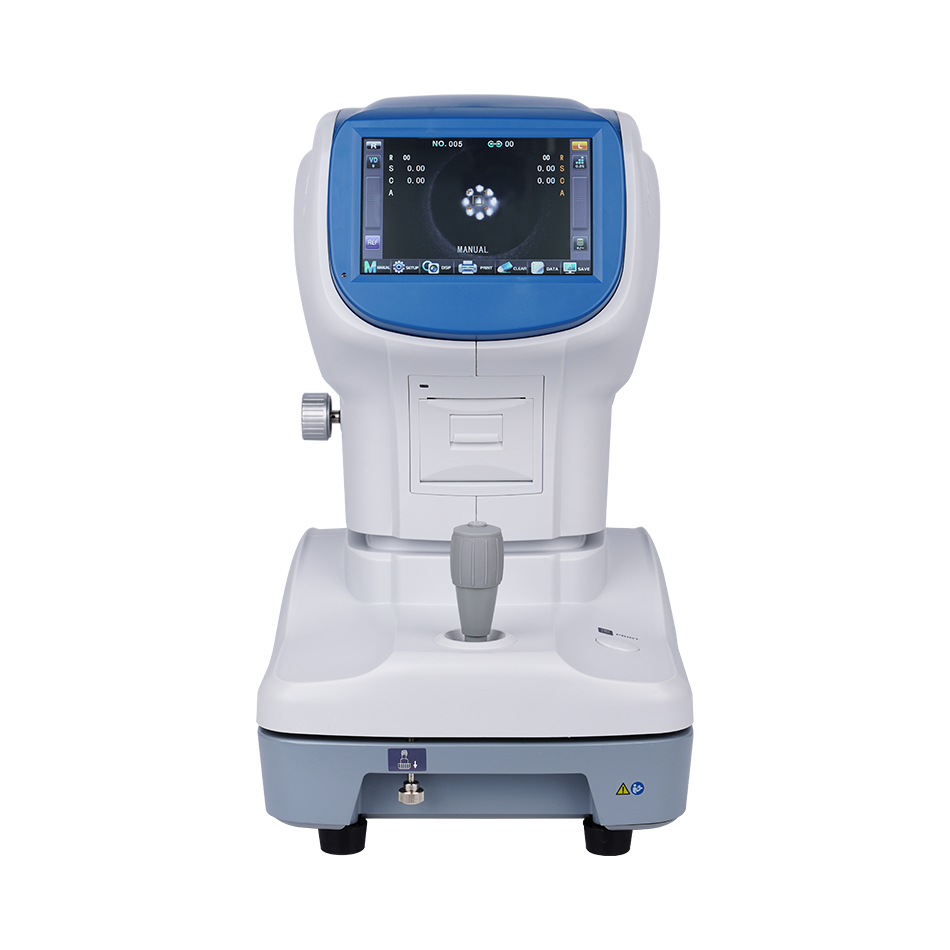

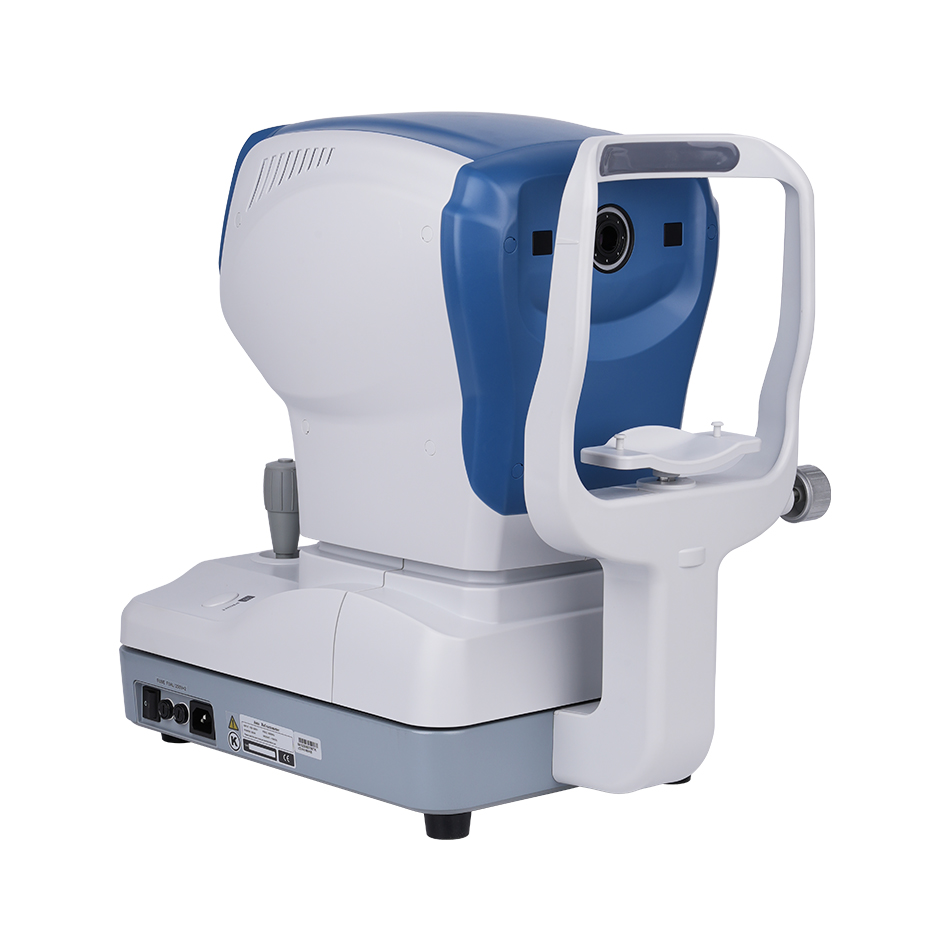

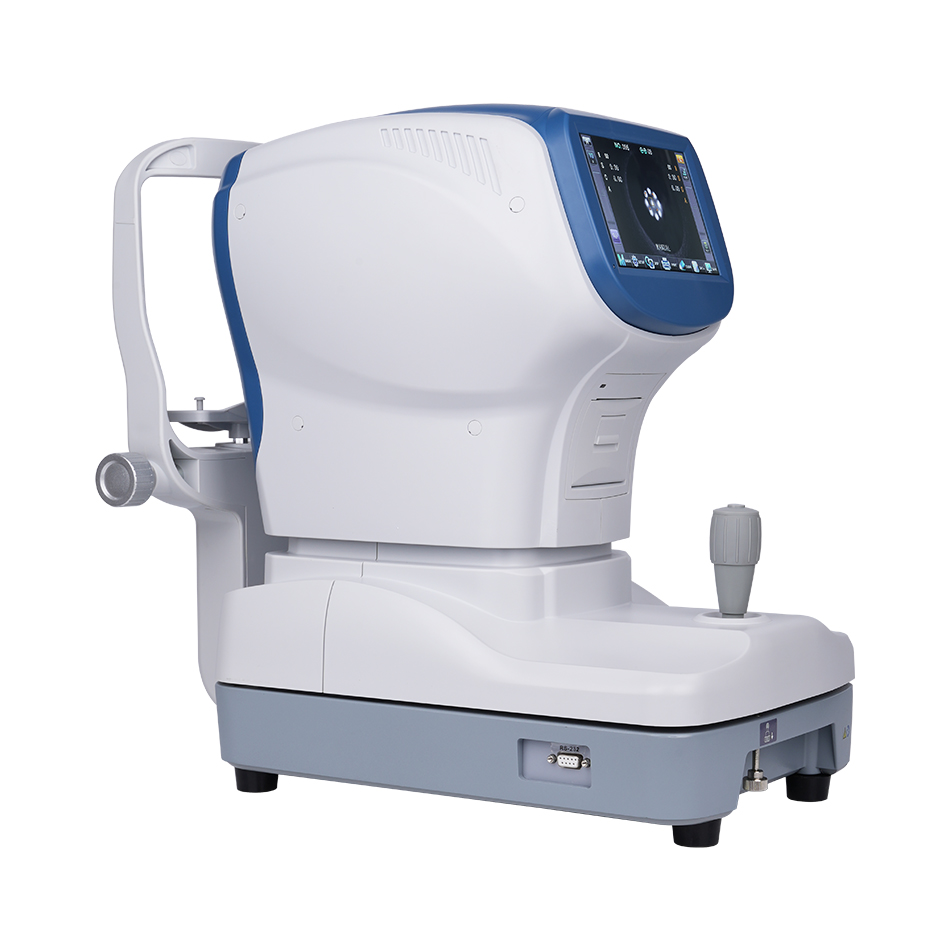

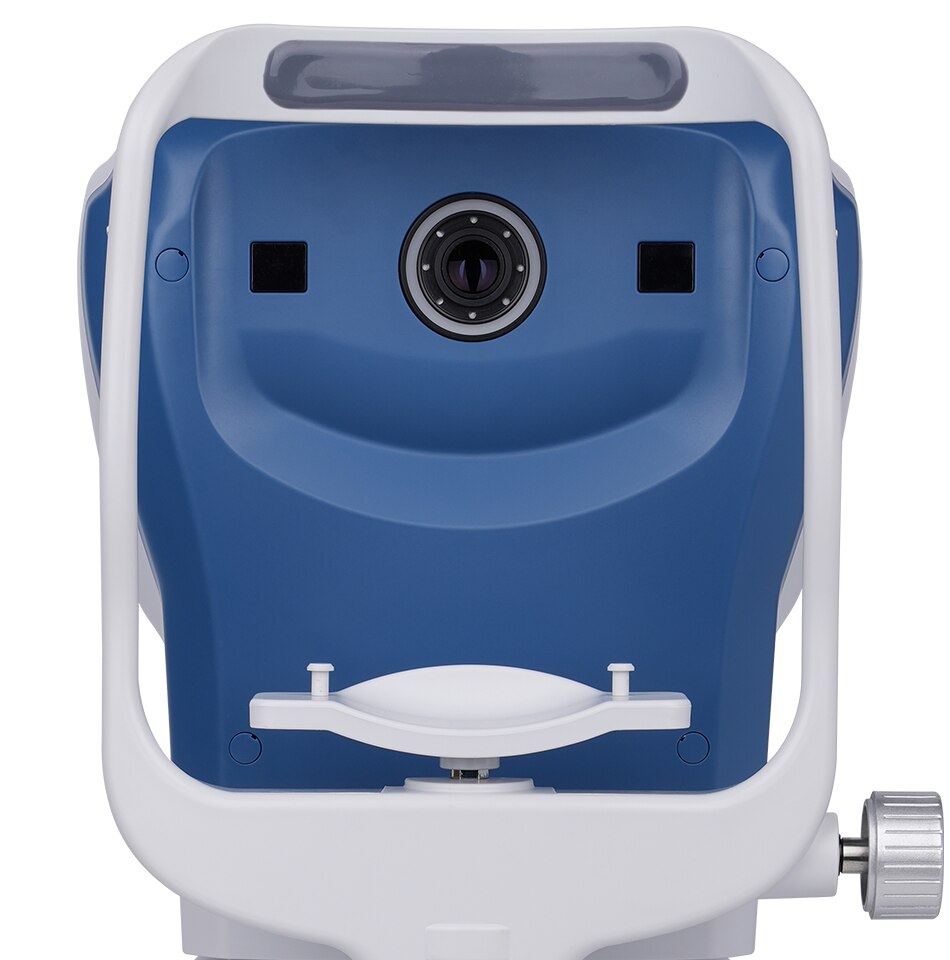

FA-9500K Auto Ref-keratometer
Features
1. Display screen: The CRT Monitor make the measurement results and setting image display on an easy-to view screen.
2. AUTO PD measurement: The PD will be automatically calculated after measurement.

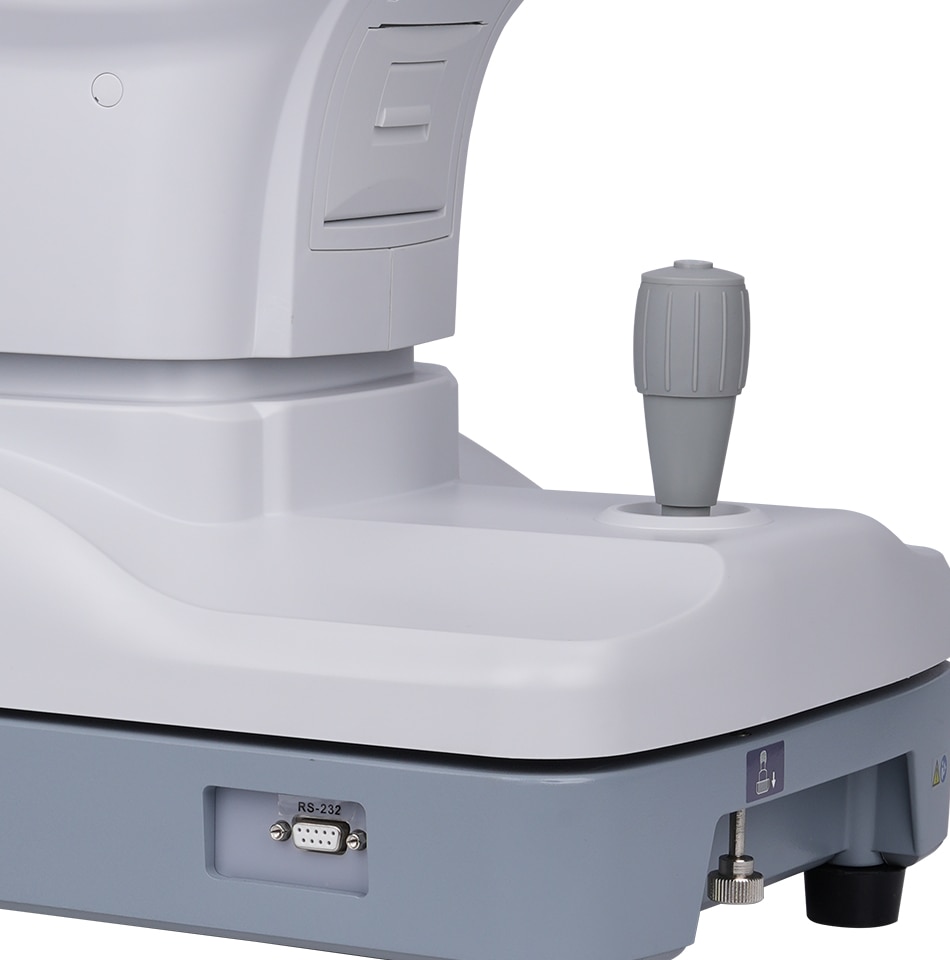

3. Easy to operate, one-hand control: All operations, including UPDown, RightLeft, ForwardBackward and Start can be easily controlled with one hand through the control stick.
4. Faster and more accurate measurement.
5. More broad measurement range of Min.pupil size to 2.0mm.
6. Auto I manual focus function.
7. Convenient user menu setting.
8. Keratometry and refractometry mode select.
Specifications
Refractometer | |
Vertex distance | 0mm, 12mm,13.75mm |
Spherical | -20 – +20D (VD=12) 0.12/0.25m-1 Step |
Cylinder | -8 – +8m-1 0.12/0.25m-1 step |
Axis | 0~180° 1°Step |
Cylinder form | -, +, + |
Pupil distance | 45-88mm, 1mm step |
Min. pupil size | 2.0mm |
Keratometry | |
Radius of curvature | 5.0-10mm (increment:0.01mm) |
Corneal Power | 33.75-67.50D (when corner equivalent refractive index is 1.337) |
Increment selectable from 0.12,0.25m-1 | |
Corneal astigmatism | 0.00-8.00m-1 (Increment selectable from 0.12,0.25m-1 ) |
Axis | 1~180°(increment:1°) |
Corneal diameter | 2.0 -14mm (increment:0.1mm) |
Others | |
Chart | Auto fog |
Memory of data | 10 meature value for each right and left eye |
Display | 7″LCD/TFT |
Thermal printer | |

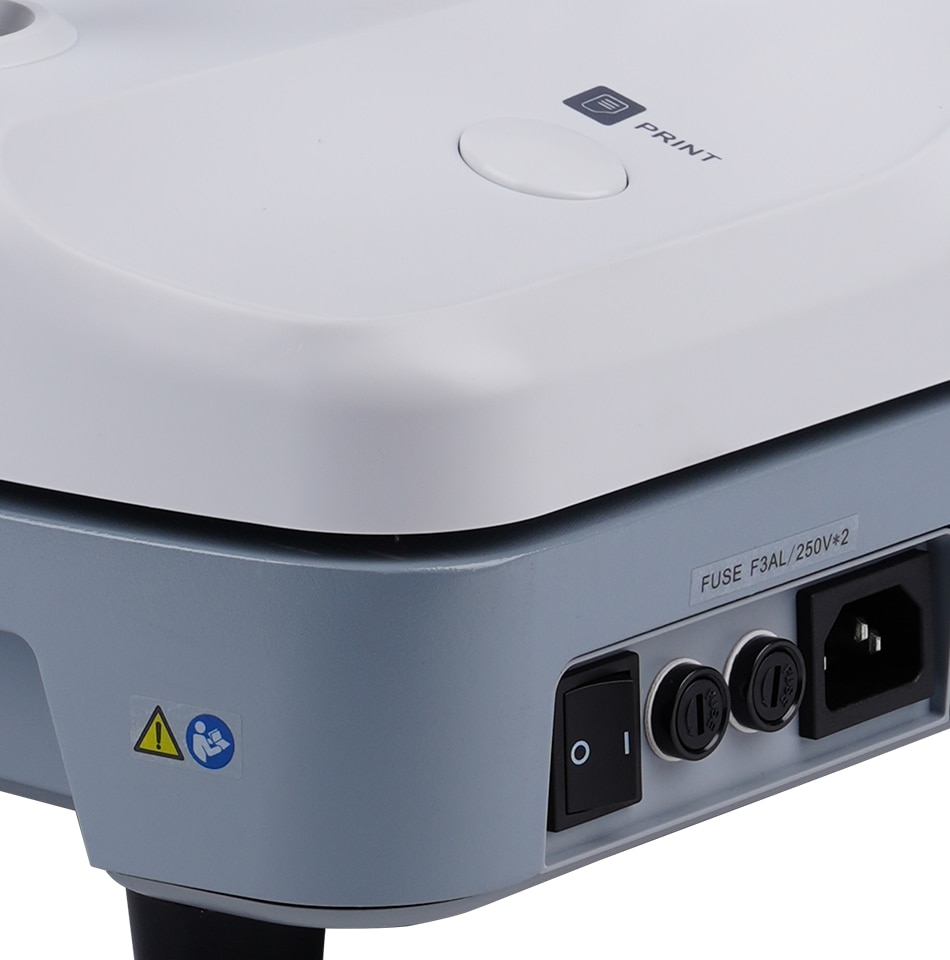

Power supply | 100 – 240V 50/60HZ |
Dimension | 490mm•280mm•470mm |
Weight | 15.5kg |
