Sphere: -20~+20D (0.12/0.25D step)
Cylinder: 0.00~+-10.00D (0.12/0.25D step)
Axis: 0~180°(1° Step)
Pupil Distance: 30~85mm Vertex Distance: 0, 12, 13.75, 15mm

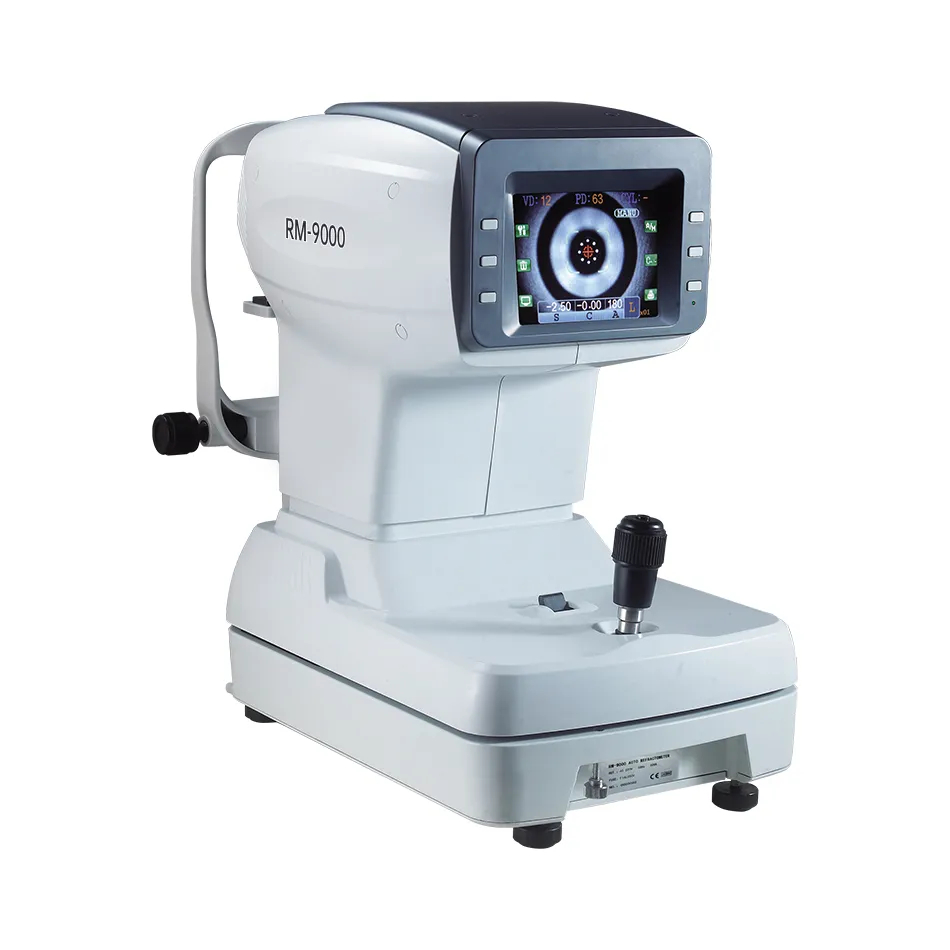

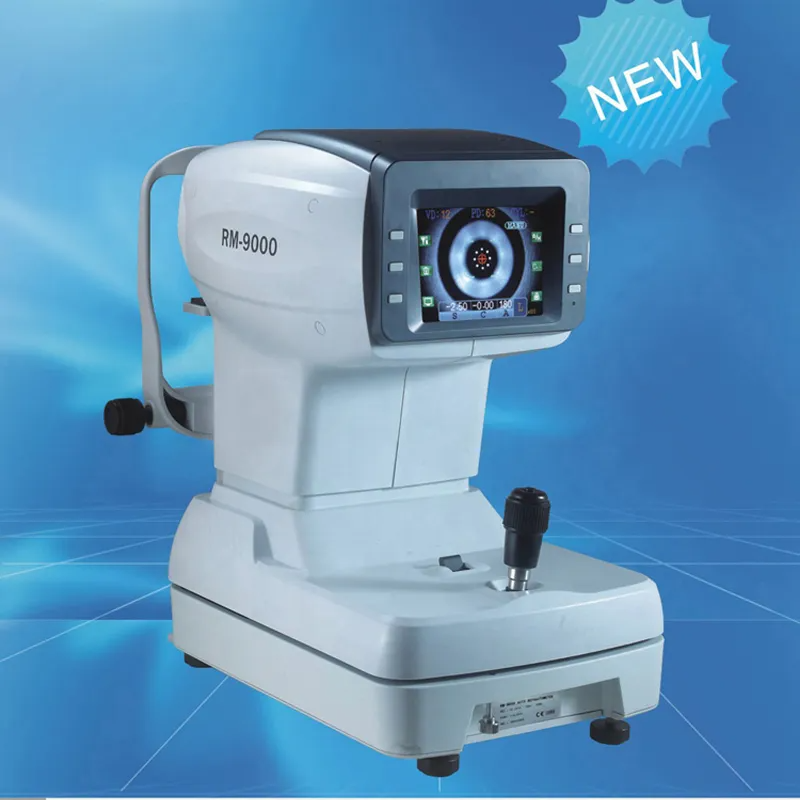

RM-9000 Auto Refractometer is using ARM processor, which makes the device

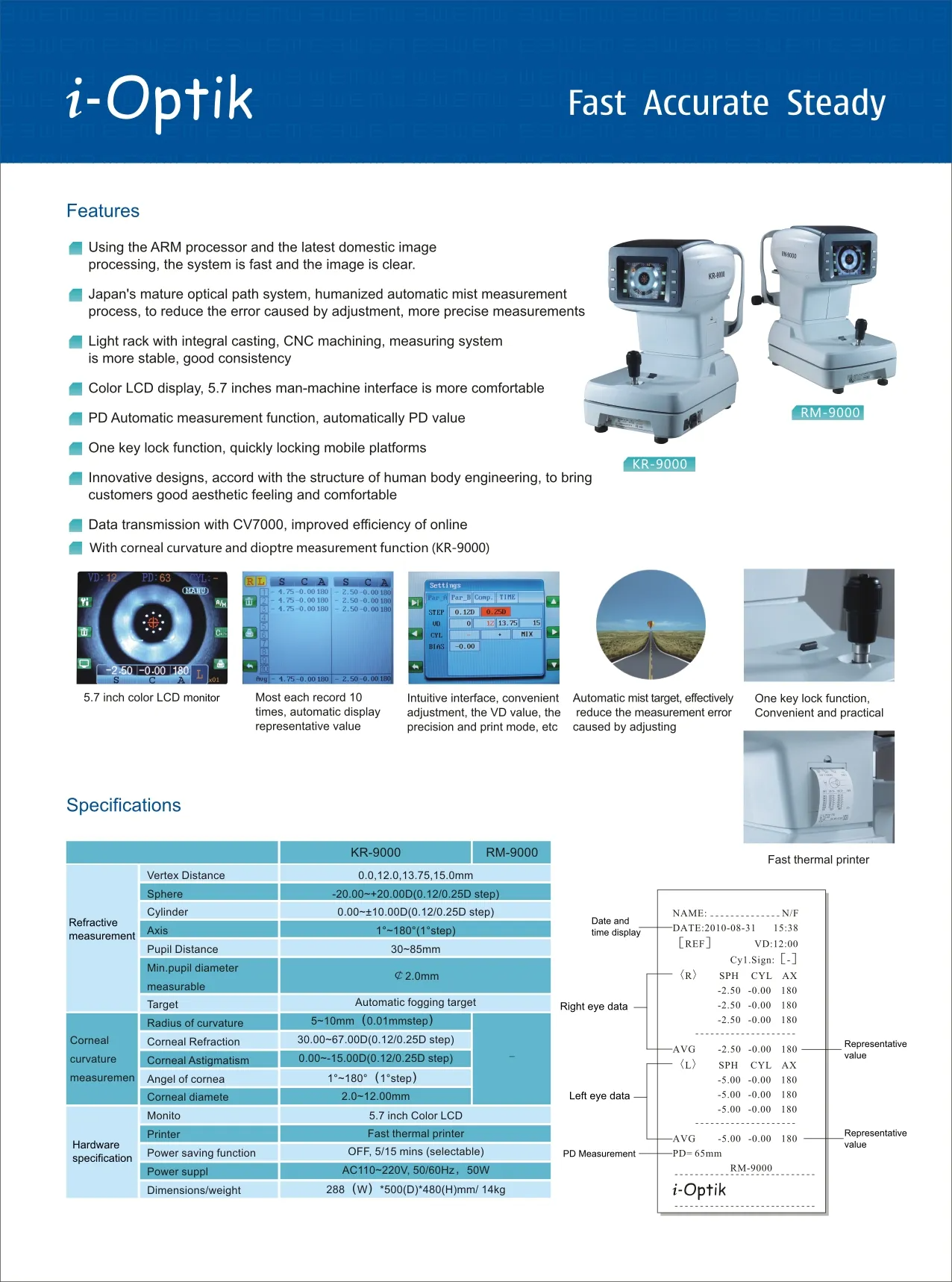

Features
1. With corneal curvature and diopter measurement function (KR-9000).
2. Using the ARM processor and the latest domestic image processing, the system is fast and the image is clear.
3. Japan's mature optical path system, humanized automatic mist measurement process, to reduce the error caused by adjustment, more precise measurements.
4. Light rack with integral casting, CNC machining, measuring system is more stable, good consistency.
5. Color LCD display, 5.7 inches man-machine interface is more comfortable.
6. PD Automatic measurement function, automatically PD value.
7. One key lock function, quickly locking mobile platforms.
8. Innovative designs, accord with the structure of human body engineering, to bring customers good aesthetic feeling and comfortable.
Specifications
Model | RM-9000 | ||
Refractive measurement | Vertex Distance | 0,12,13.75,15mm | |
Sphere | -20~+20D (0.12/0.25D step) | ||
Cylinder | 0.00~+-10.00D (0.12/0.25D step) | ||
Axis | 1D-180D (1D step) | ||
Pupil Distance | 30~85mm | ||
Min. Pupil diameter measurable | 2.0mm | ||
Target | Automatic fogging target | ||
Hardware specification | Monitor | 5.7 inch Color LCD | |
Printer | Fast thermal printer | ||
Power Saving Function | OFF, 5/15 mins (Selectable) | ||
Power supply | AC 110~220V, 50/60HZ, 50W | ||
Dimensions/weight | 69 (W) * 43(D)*72 (H)cm/ 21kg | ||
