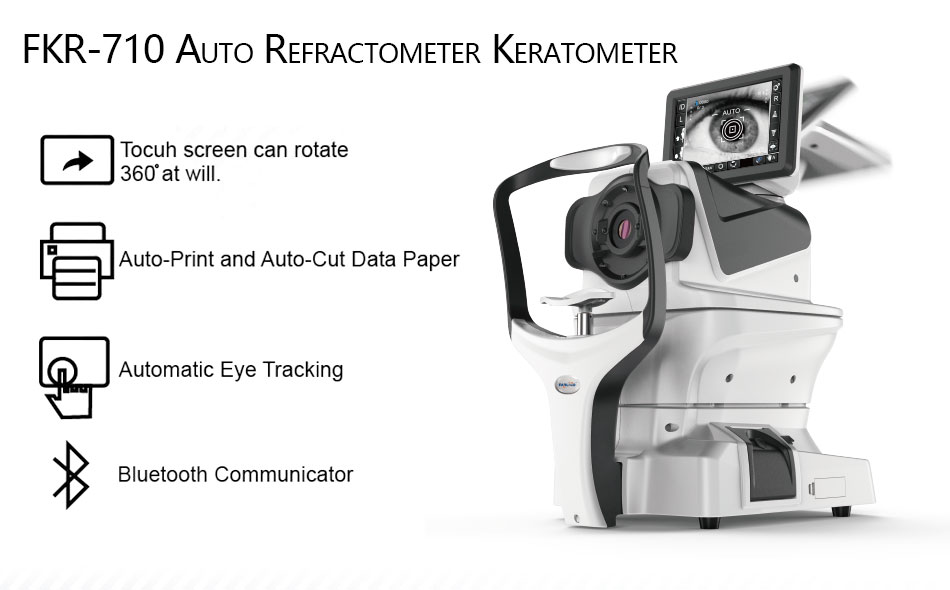

Features

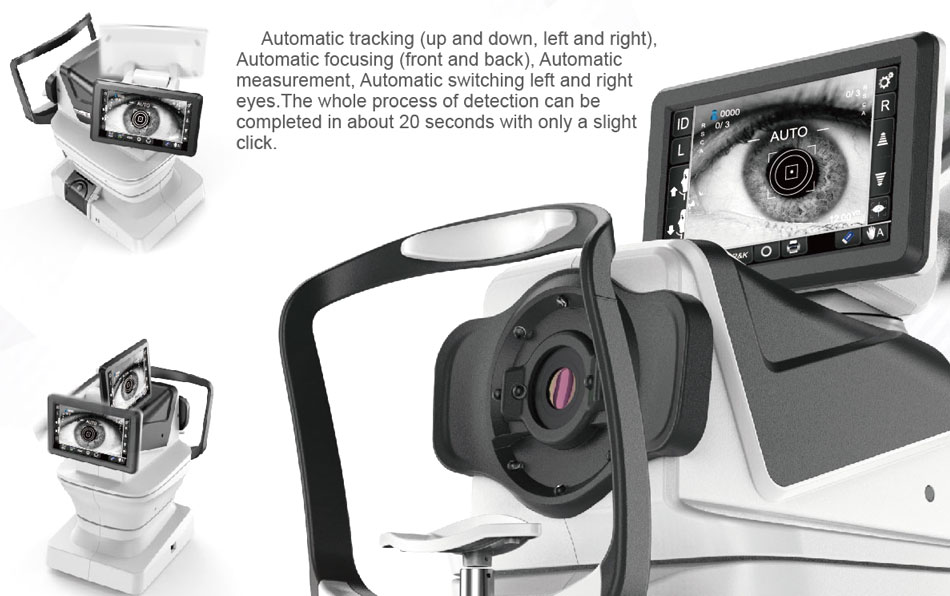

1. Full automatic machine, only power on , put your head on chinrest, press any area on the screen, it will be automatic adjust the chinrest , the machine position , and automatic meausre, automatic print and cut paper .

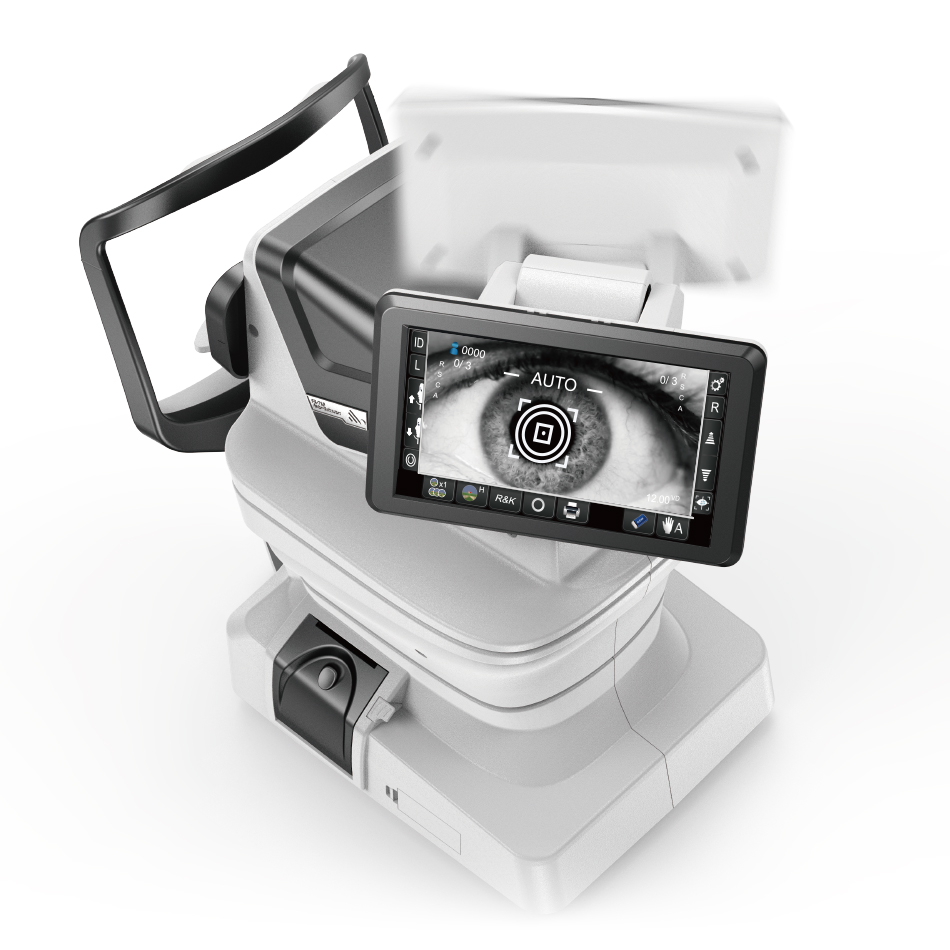

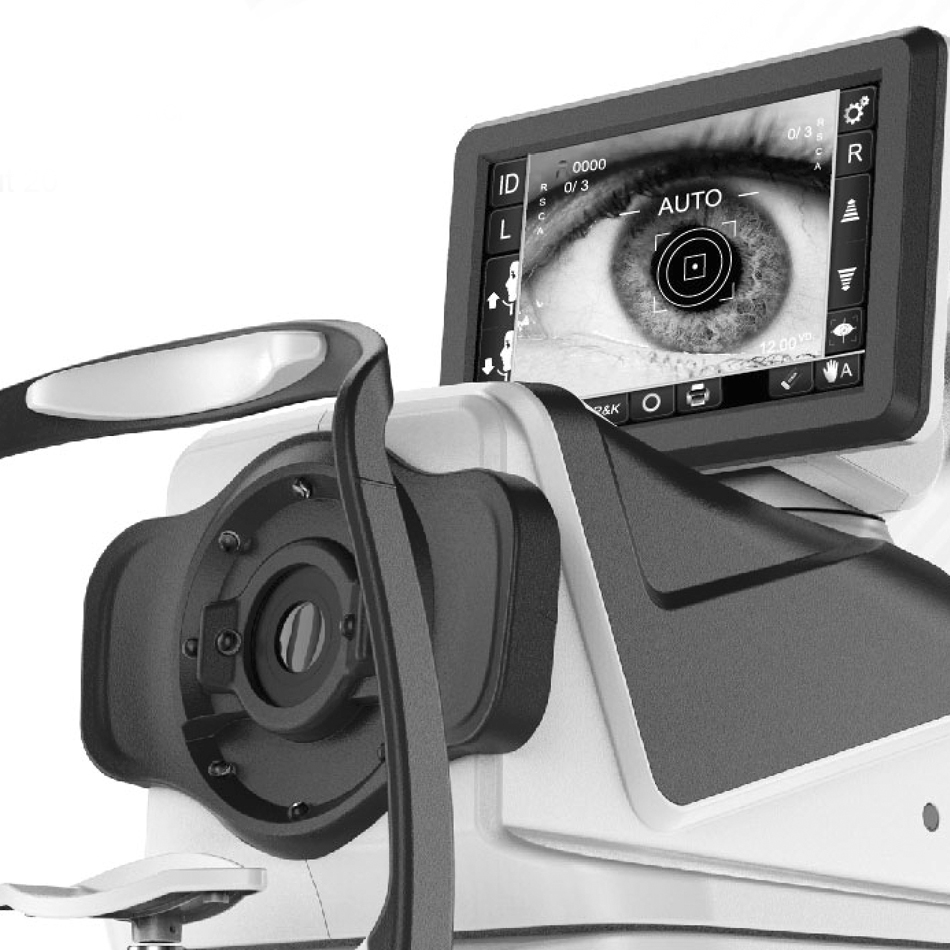

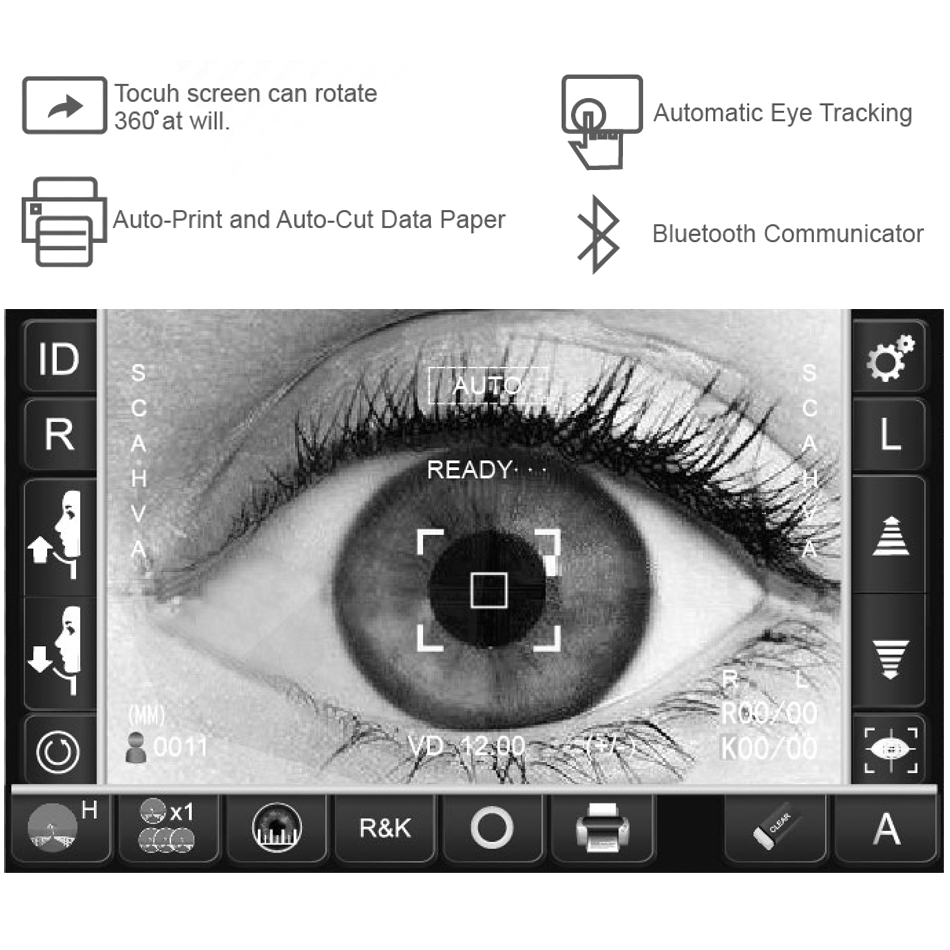

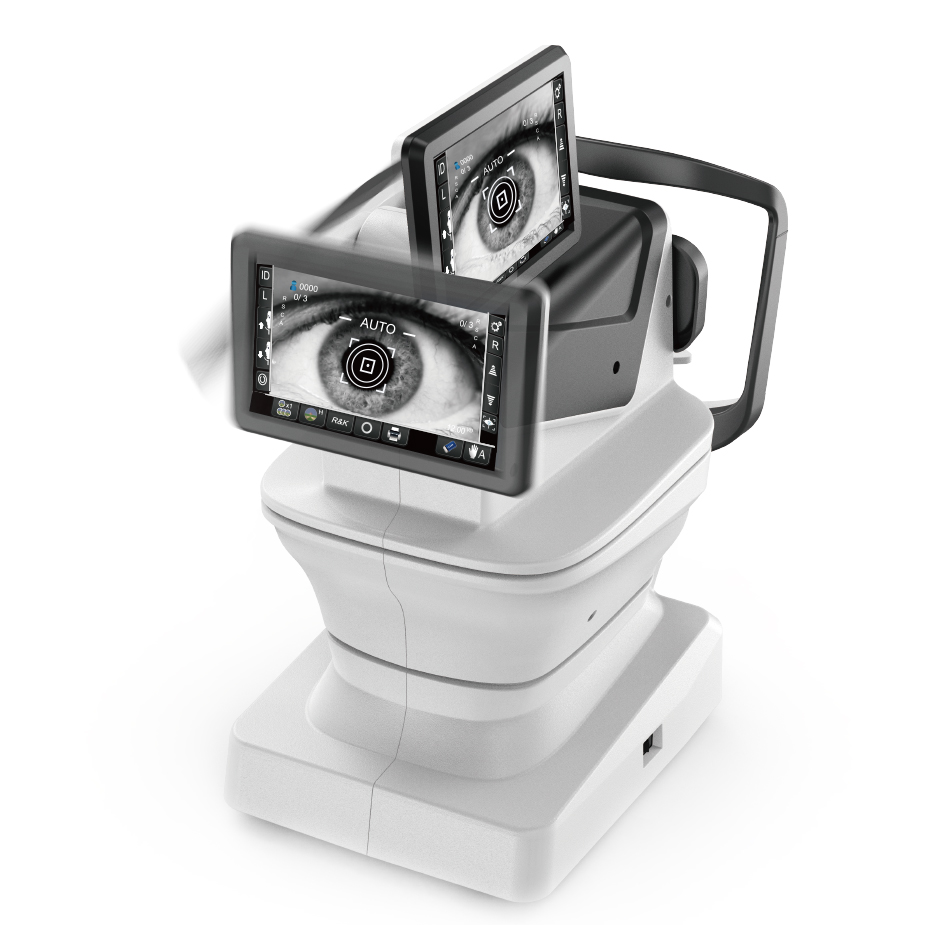

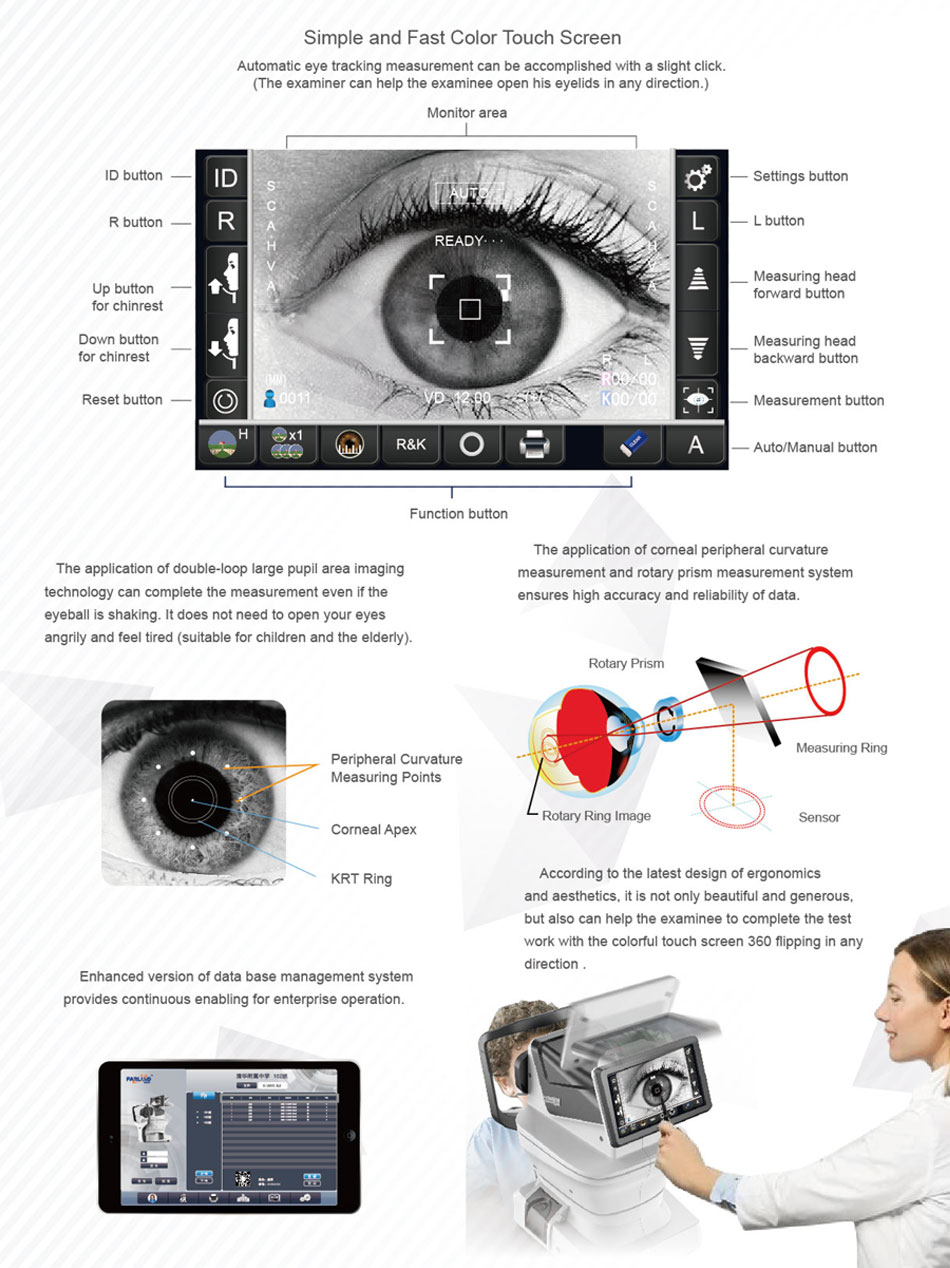

2. 9" color and touch screen , 360° rotating screen .
3. R/L Fully automated measurement
4. Motorized main boday horizontal and vertical moving automatic
5. Motorized joystick automatic
6. IOL function , can measure the eye did cataract surgical before.
Specifications
K/R mode: | Diopter and corneal curvature measurements | |
Measurement mode | REF mode: | Diopter measurement |
KRT mode: | Corneal curvature measurement | |
Vertical distance (VD) | 0mm、12.0mm、13.75mm、15.00mm | |
Spherical degree measurement range | .-25.00D～+25.00 | |
Column mirror measurement range | .-10D～+10D | |
Diopter measurement | Axis measurement range | 0°～180° |
Interpupillary distance measurement range | 10mm～85mm | |
Minimum measurement pupil diameter | ф2.0mm | |

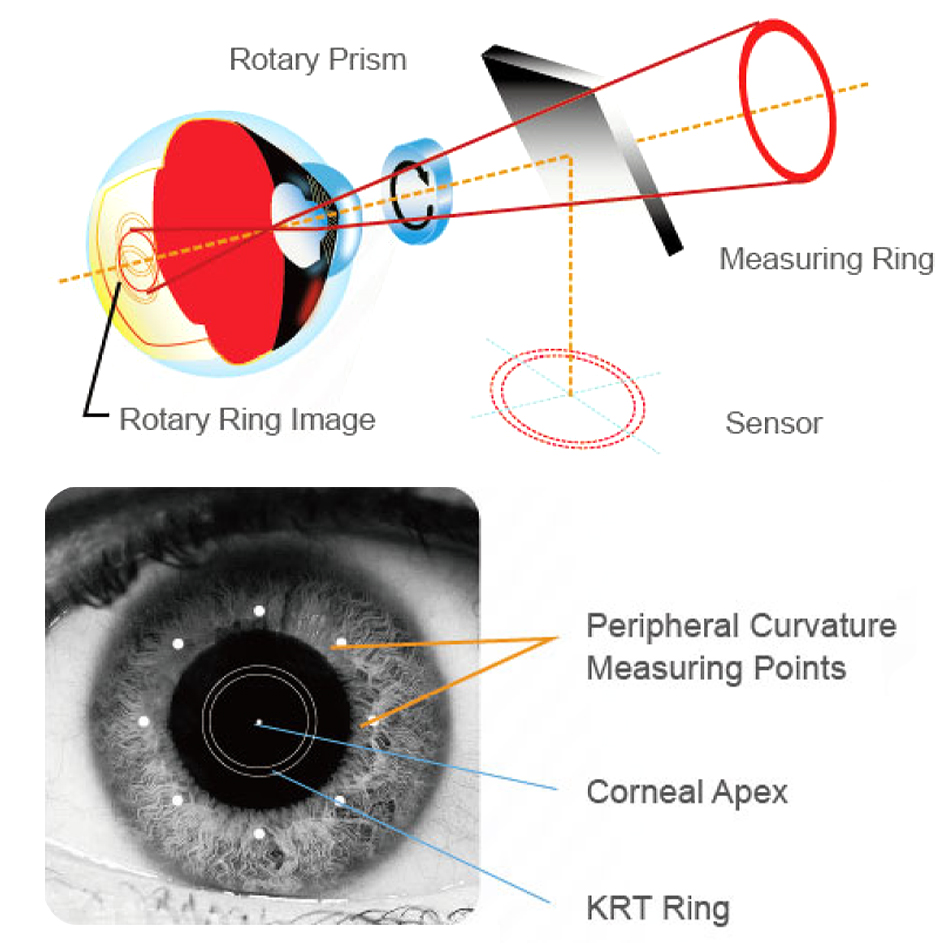

Corneal measurement | Radius of curvature measurement range | 5mm～10mm |
Direction of corneal Astigmatic axis | 0°～180° | |
Corneal diameter | 2.0mm～12mm | |
Display | 9” Touch LCD monitor | |
Printer | Import thermal printer | |
Power saving mode | 1/5/10/40 minutes no operation | |
Product specifications | Power supply | AC220V;50Hz 75VA |
Size/Weight | 300(W)*450(D)*500-530(H)mm/20kg | |
Chart | Automatic fogging method |
