1. Sphere: -25.00~ 22.00DD(0.12/ 0.25D Step) (VD=12mm)
2. Cylinder: 0.00~±10.00D (0.12/0.25 Step)
3. Axis: 0~180°(1° Step)
4. Pupil Distance: 10~85mm
5. Vertex Distance: 0.0, 12.0, 13.75, 15.0mm

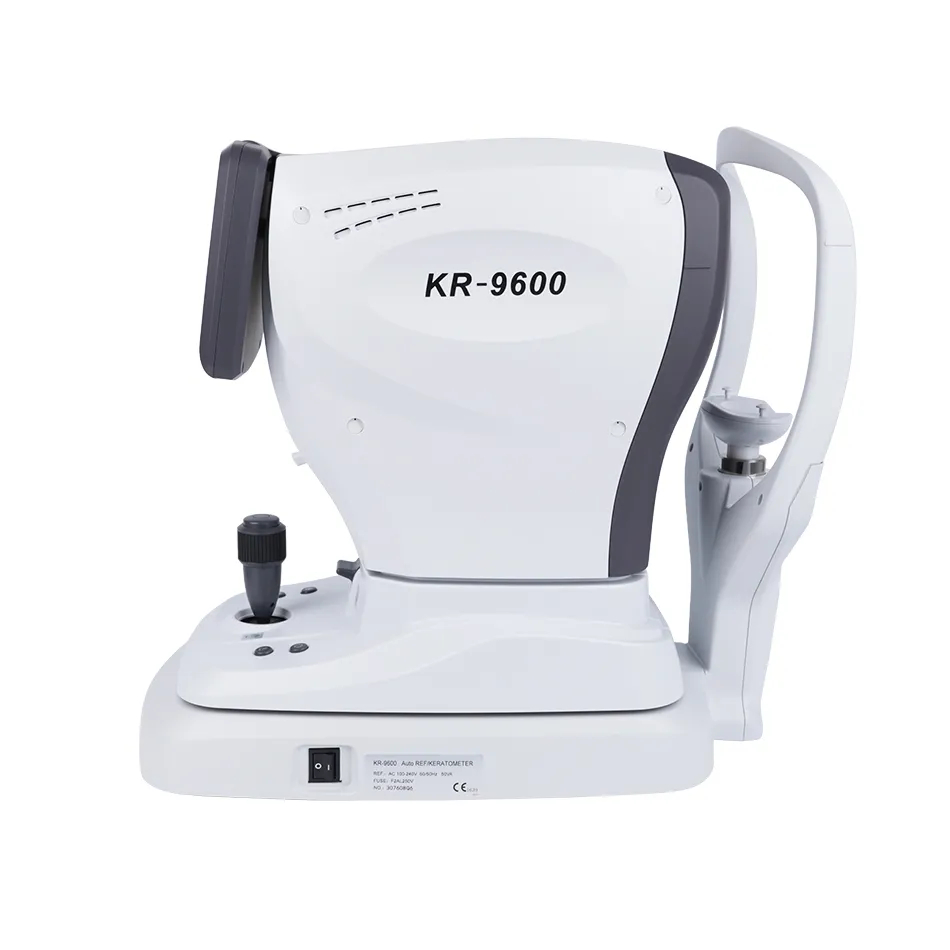

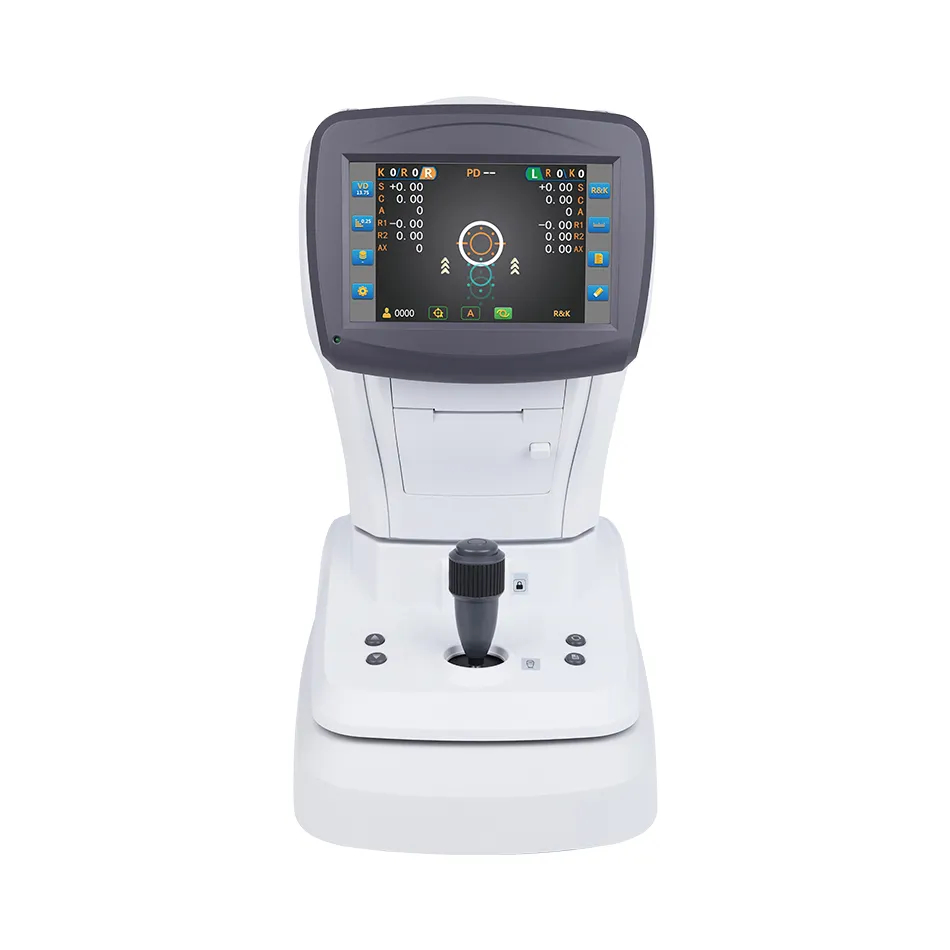

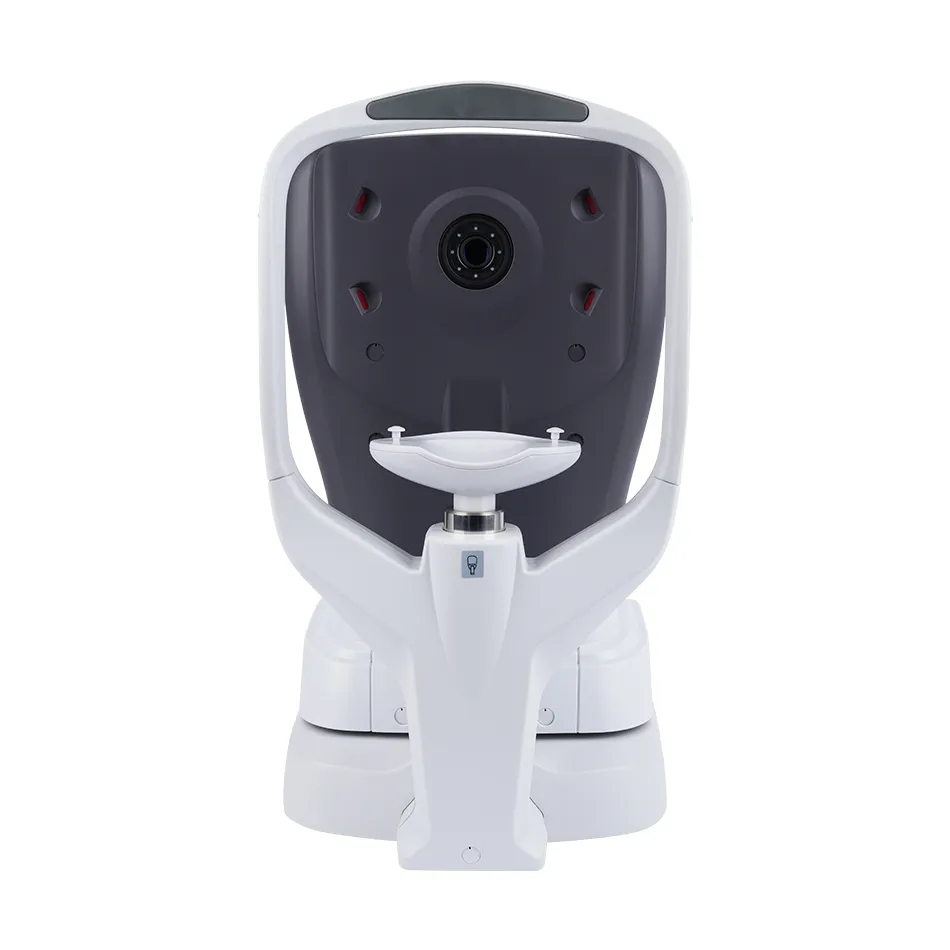

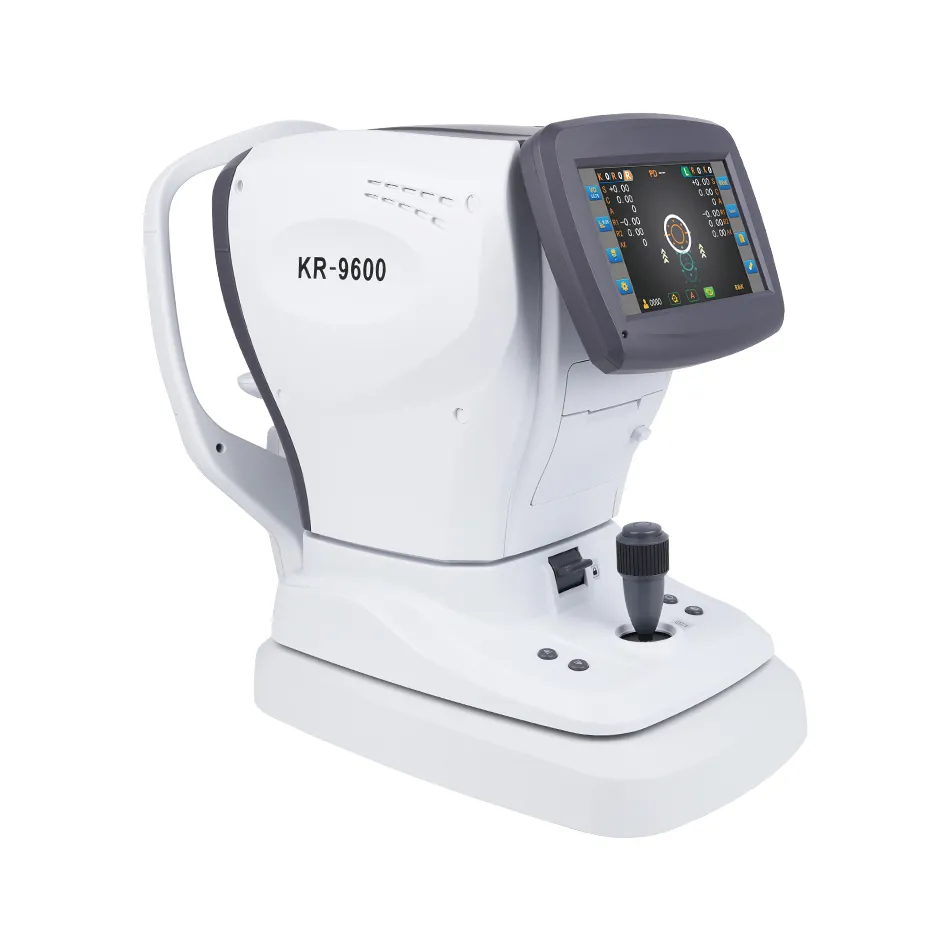

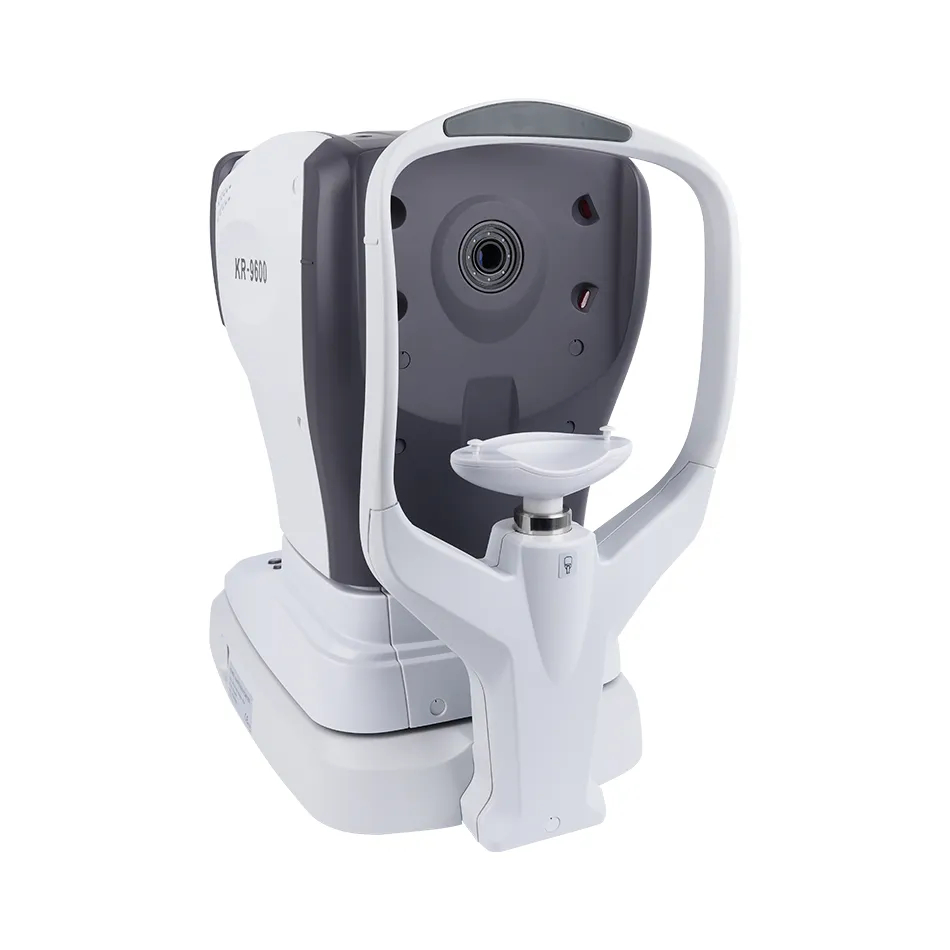

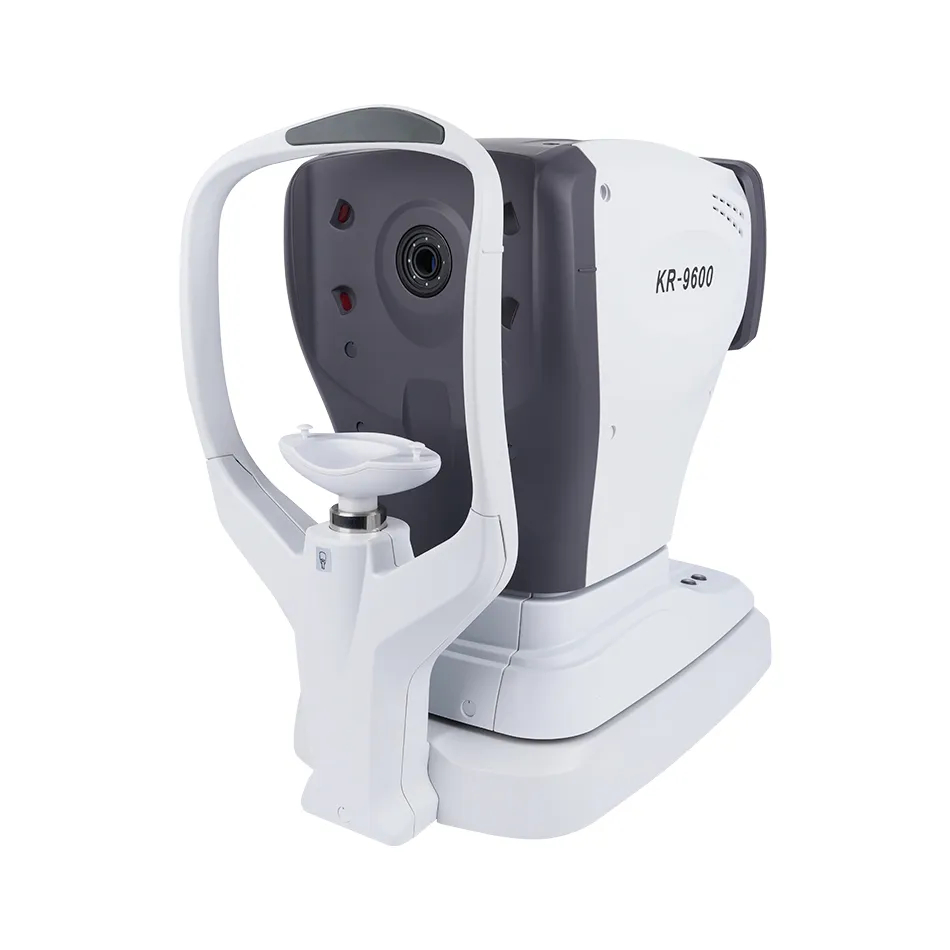

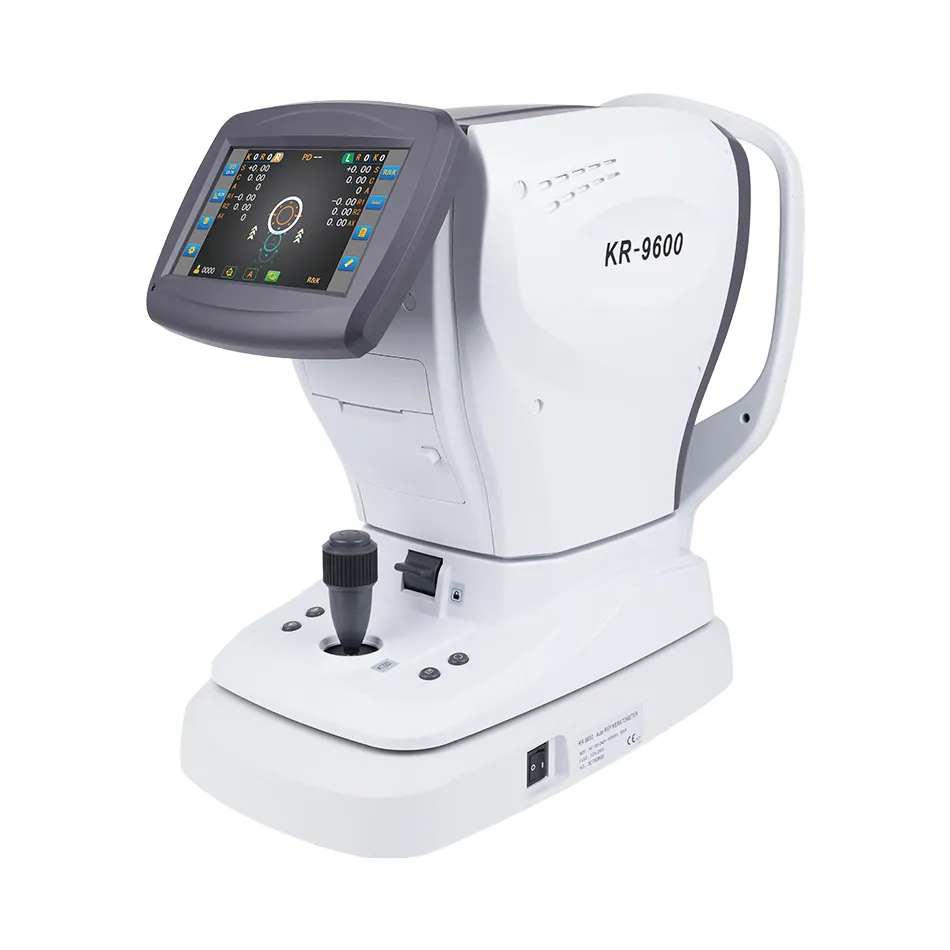

RM-9600 Auto Refractometer is manufacturered with advanced refraction
Features
1. Fashion and compact design.
2. Adopt the ARM Cortex-A8 processor provides faster measurement.
3. Advanced refraction measurement technology, image analysis more entirely, enable the reliable measurement result and optimize date consistency.
4. Automatic identification the best measurement position for keratometry, avoid the operating error and enable the accurate Keratometry measurement.
5. IOL function available.
Specifications
Measurement | K/R | refractive and keratometry measurement |
REF | refractive measurement | |
KER | keratometer measurement | |
Refractive | Vertex istance(VD) | 0.0,12.0,13.75,15.0mm |
Sphere | -20.00~+20.00D(0.12/0.25D setup)(VD=12mm) | |
Cylinder | 0.00~±10.00D(0.12/0.25D setup) | |
Axis | 0°~180°(setup 1°) | |
PD range | 10~85mm | |
Minumun measurable PD | 2.0mm | |
Target | auto fogging | |
Keartometry | Corneal curvature radius | 5～10mm(0.01mm setup) |
Corneal refractory power | 33.75～67.50D(0.12/0.25D setup) | |
Corneal astigmatic power | 0.00～-15.00D(0.12/0.25D setup) | |
axis | 0°～180°(setup 1°) | |
Corneal radius | 2.0～12.00mm | |
Hardware | Screen | 7" TFT color LCD screen |
Printer | thermal printer | |
Power-saving | 5 /15 minutes | |
Data export | RS232 | |
Power supply | AC100~240V,50/60Hz,50W | |
Size/weight | 262(W)*487(D)*467(H)mm/17Kg |
