Product Description

Features:

1. Flexible and versatile

2. User-friendly color LCD panel

3. Integrated tracing and centering device

4. The display can be tilted

5. The shape imager detects the shape of a pattern, demo lens and horizontal axis automatically

6. The pattern could be stored to improve efficiency. Frame memory could save time and storage space.

7. 3D lens inspection system

8. Grooving and safety beveling

9. Processing mode for various kinds of lens materials

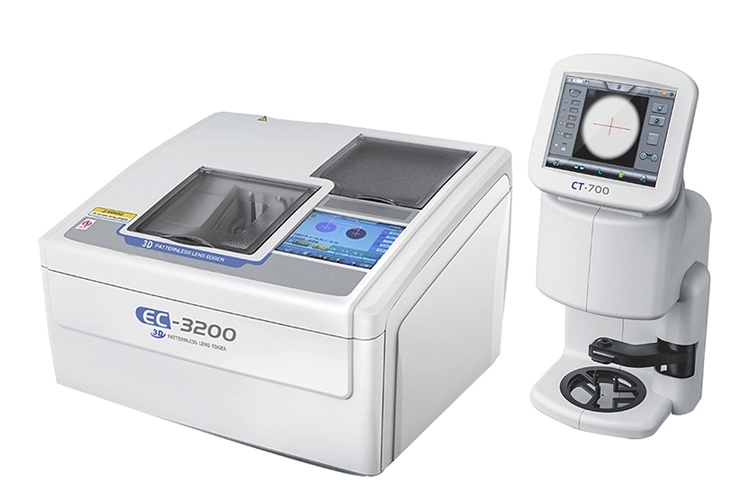

EC-3200

Processing system







Beveling, flat edging, grooving, polishing and chamfering

Auto mode and guide mode

Processing lens

glass, plastic, polycarbonate

Processing pressure

approx. 4.Skg (fixed)

Wheels







Roughing wheel for glass lens

100mm in diameter, 17mm in width

Roughing wheel for plastic lens

100mm in diameter, 17mm in width

Finishing wheel

100mm in diameter, 23mm in width

Polishing wheel (for flat edge)

100mm in diameter, 12mm in width

water supply system

Pump circulation

AC 100~230V

Processing accuracy



Size accuracy

±0.05mm

Axis angle

±1

Whole system

Display

5.6’’LCD/TFT

Dirnensrons

520mm•485mm•330mm

Weight

-45Kg(only main body)

Power supply

110/220V 50/60HZ

Power consumption

1.2KVA(max. during processing)

CT-700

Whole system

Measurement time

<3S

Measurement accuracy

<0.1mm

Display

8″LCD/TFT(800•600)

Dimensions

415mm*260mm*236mm

Weight

~9Kg(only main body)

Power supply

110/220V 50/60Hz

Power consumption

25W
