Feature:

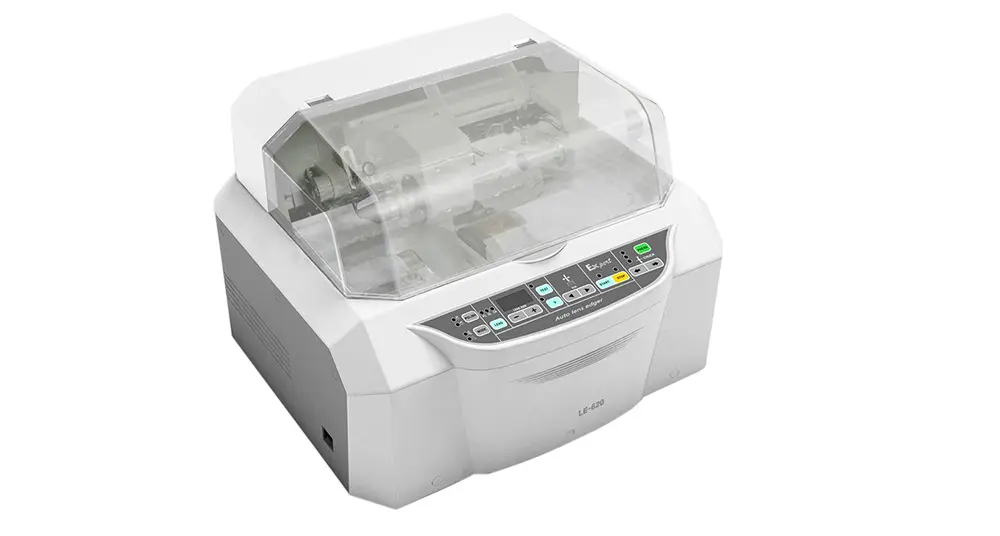

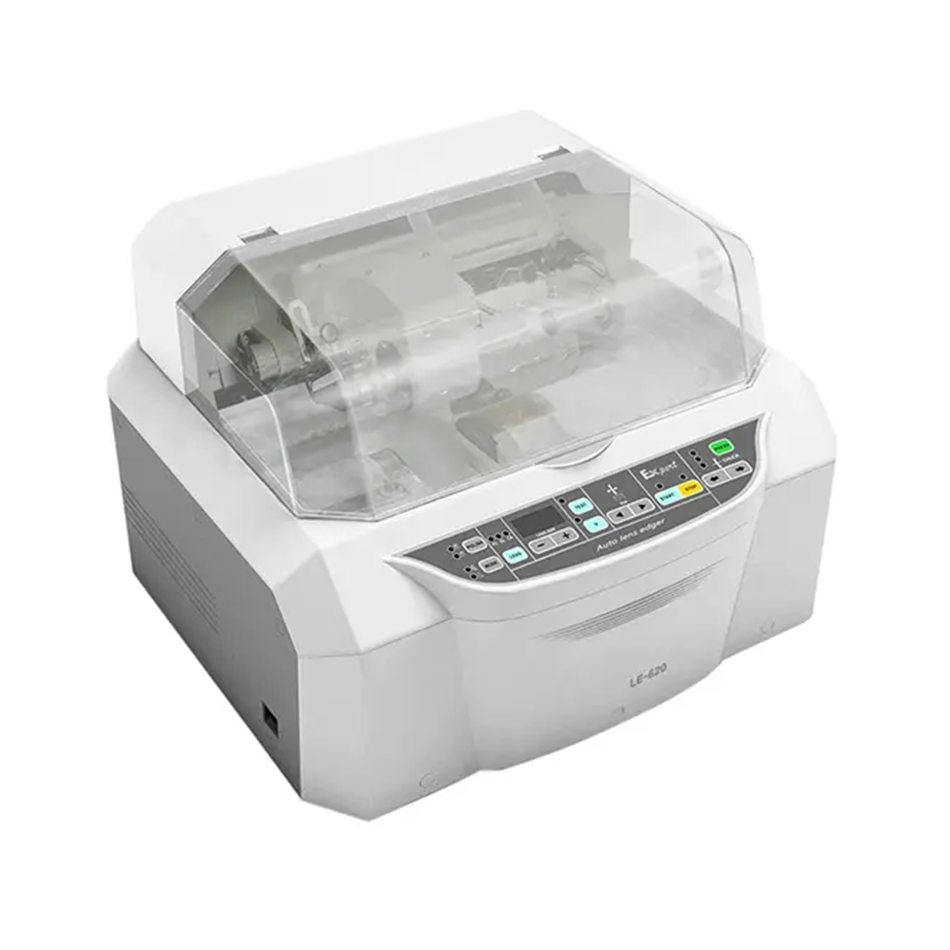

Equipped with specific materials, the LE -620 auto edger is easy to operate and able to process lens size accurately and stably. Added the automatic emendation system in this new model .it can do automatic emendation when the machine start up assure the size of lens (left and right )is uniform and improve the precision.
1. Beveling polishing function.
2. Pressurizing automatically.
3. PC auto edger.
4. The 3rd generation mainboard.
5. Double bevel model.
Specification:
The size of Diamond wheel: (The diameter and width of Grinding wheel) mm | PC Wheel: 100 x 16 Glass Wheel : 100 x 14 V Groove Wheel: 100 x 23 Bevel Polishing Wheel: 100 x 19 |
Available lens range | 22 mm~ 100 mm |
The processing type | Pointy edges, platband , flat and bevel polishing |
The lens material | CR, Glass, PC |
Size | 530(L)x 500(W)x 400(H)mm |
Voltage | Voltage: 220V ± 10%/110V ± 10%, frequency: 50Hz/60hz |
Power | 380W |
