Features

Main Functions:

The operation procedures are highly intelligent and tally digital.

Compared to the hole position of the pattern lenses, it has higher process accuracy whose process deviation is less than 0.075mmin both X-axis and Y-axis.

lt has auto position clamping equipment which allows to remain the same process accuracy after the change of clamps.

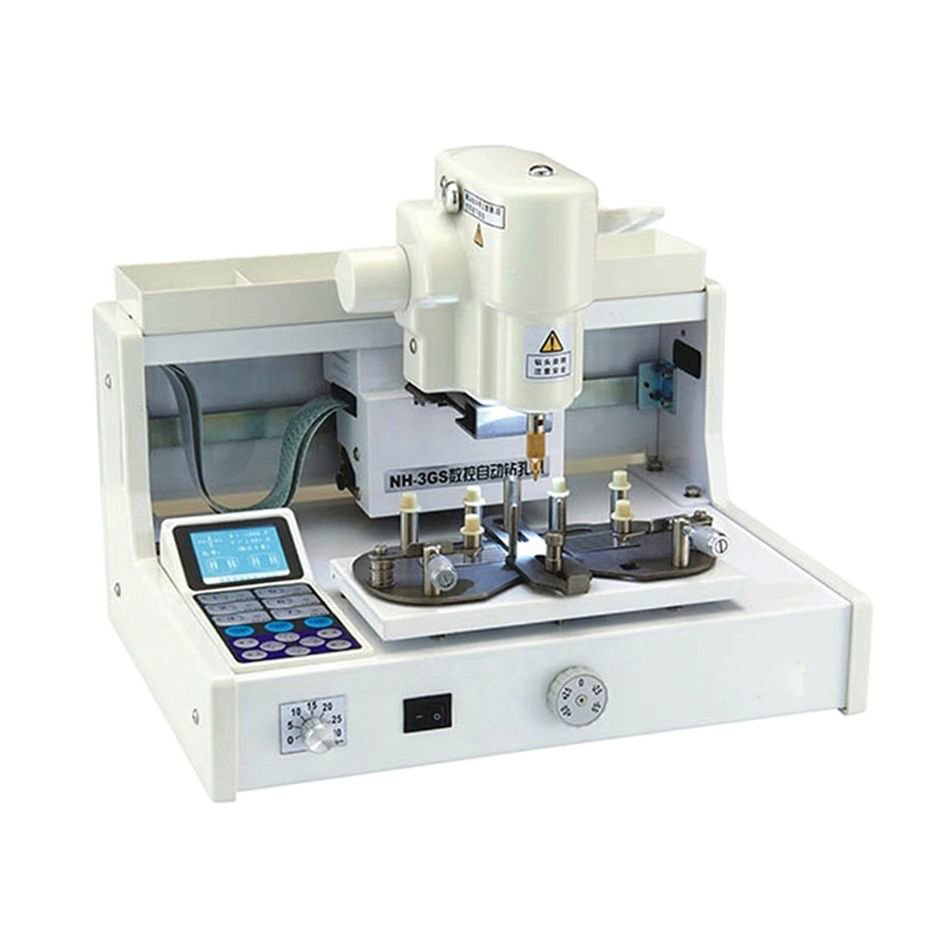

The screen shows the drill position and coordinates data, and gives guidance to the operation.

The hole position memory function allows to process the set hole positions continuously.

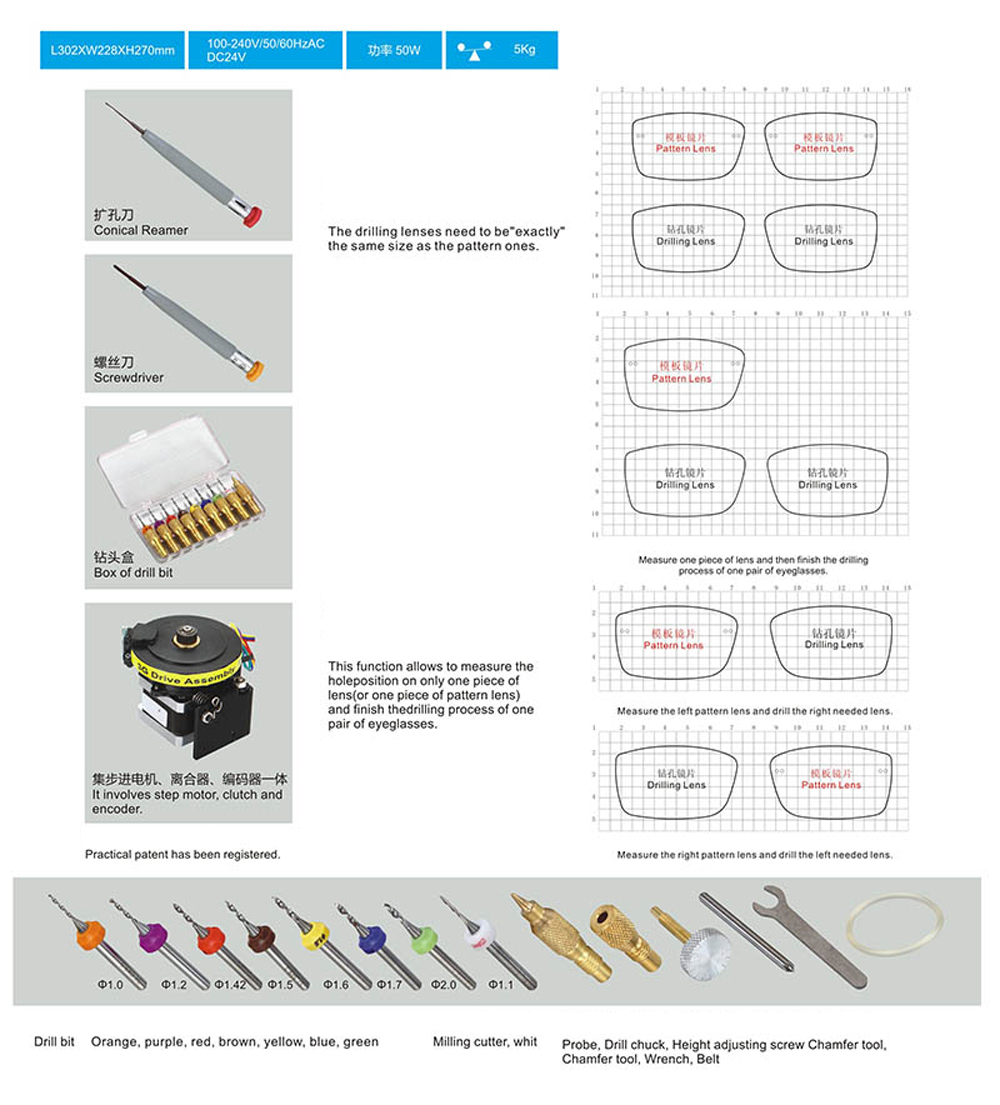

Original Pattern Measurement Measurement Mode.

Mirroring Measurement Mode.

The head can automatically reposition if it's removed from its position accidentally.

The instrument drills automatically in a set order. and can be corrected by pressing the number button if any hole is missed by wrong operations.

The Safety Instructions:

1.Please turn off the instrument immediately if there's any unusual sound, Restart it and set the zero point to continue the procedure. If it happens again, please contact us online.

2.Do not open the bottom cover in case of the danger of electric shock.

3.Do not reform or decompose the instrument in case of any effect on the accuracy

4.Do not pull the head in processing mode in case of any damage to gears or racks.

5.Do not put the instrument on an unstable platform in case of falloff

6.Do not press he spindle lock button while the drill bit is rotating.

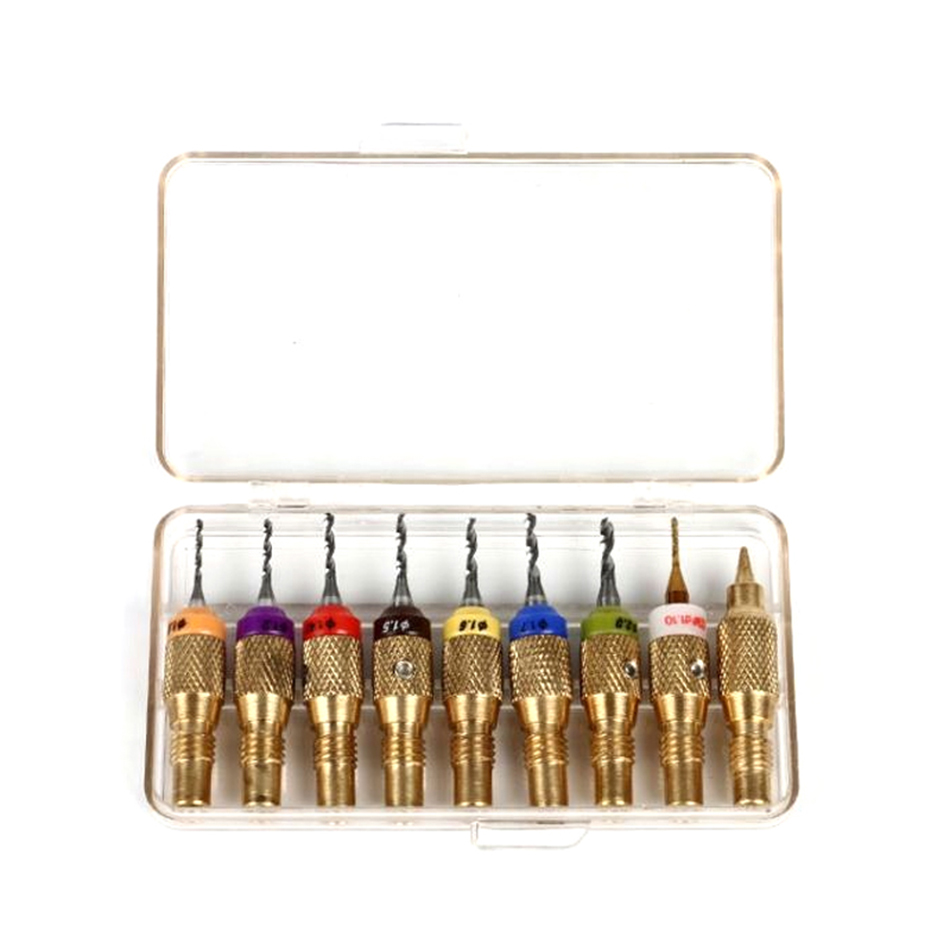

7.Do not use the spare drill provided by other manufactures in case of any effect on the accuracy of concentricity.

8.This instrument can only drill and mill on PC and CR lenses and cannot be used to other process.
