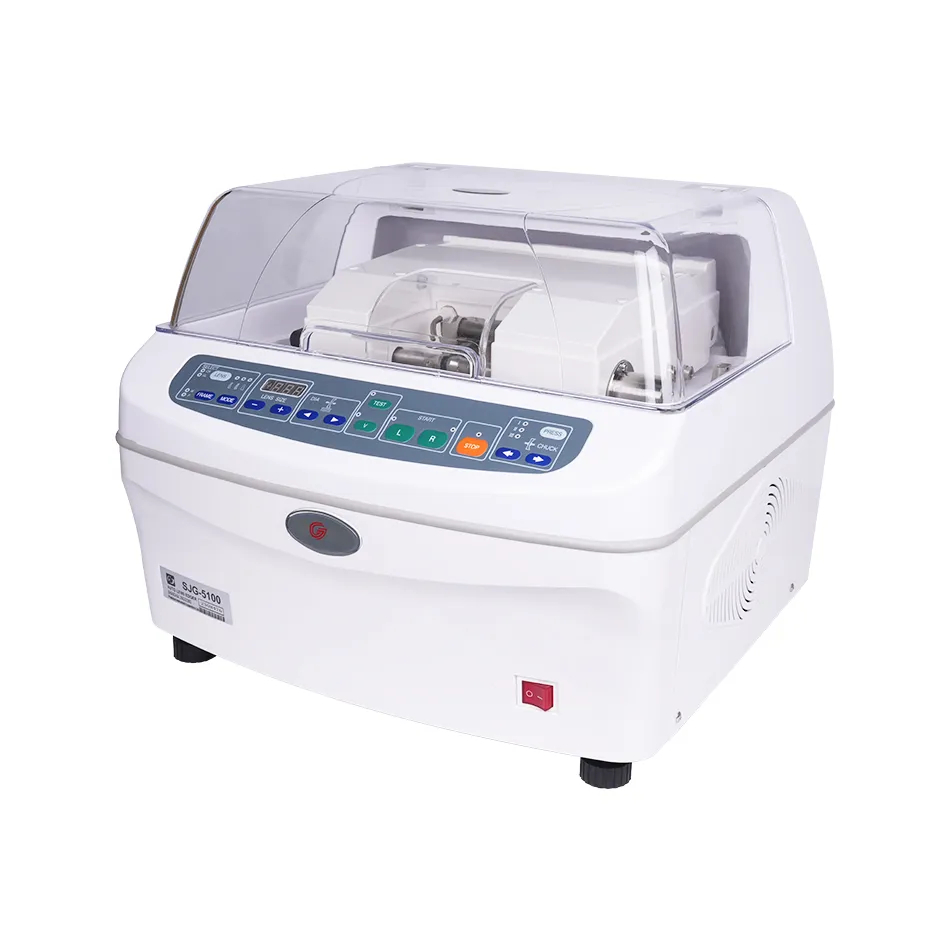

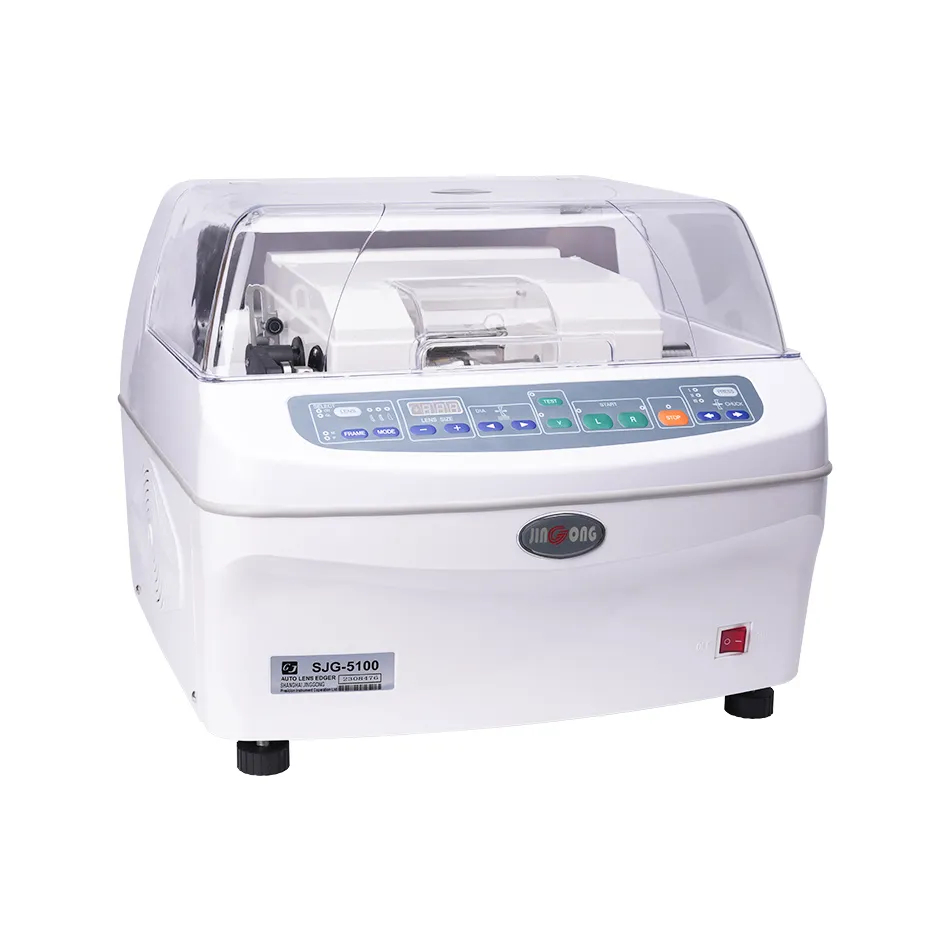

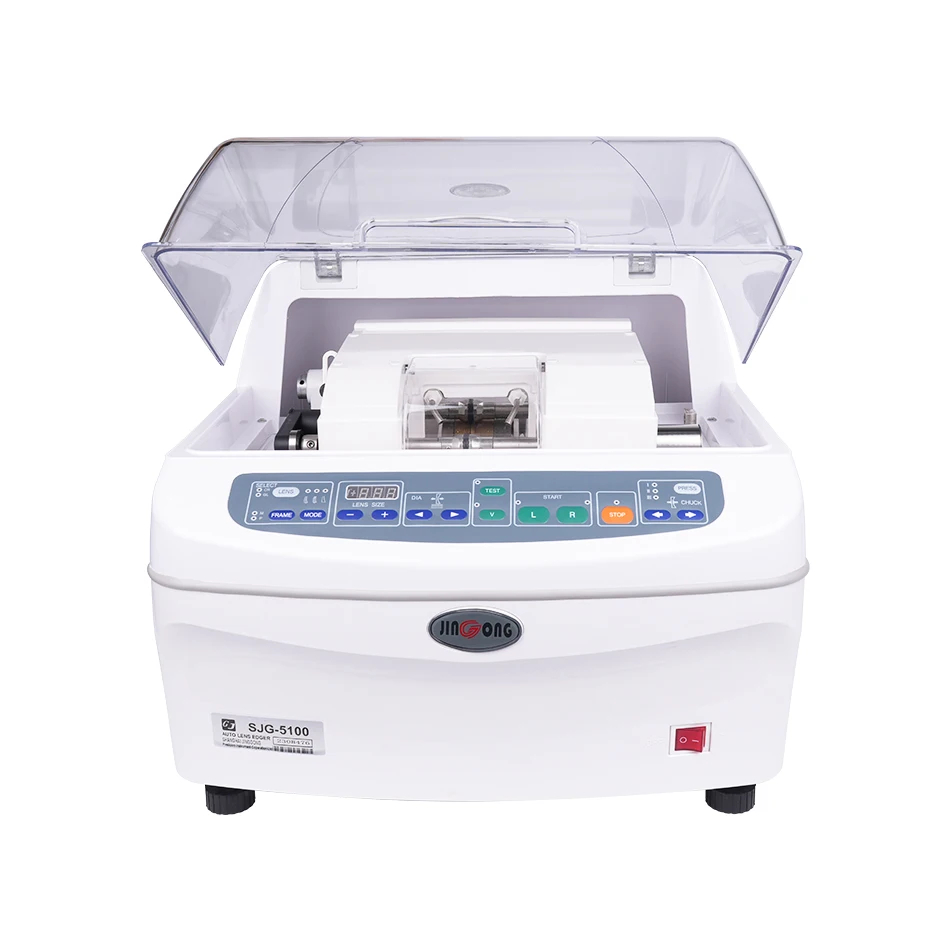

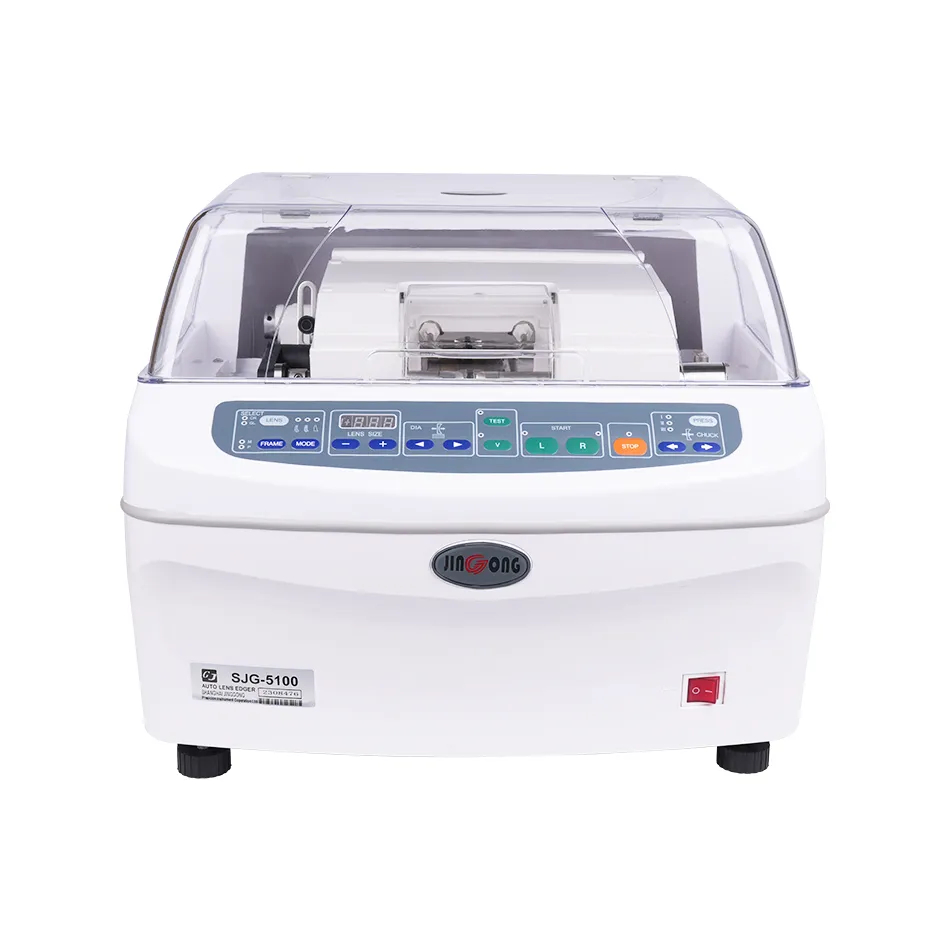

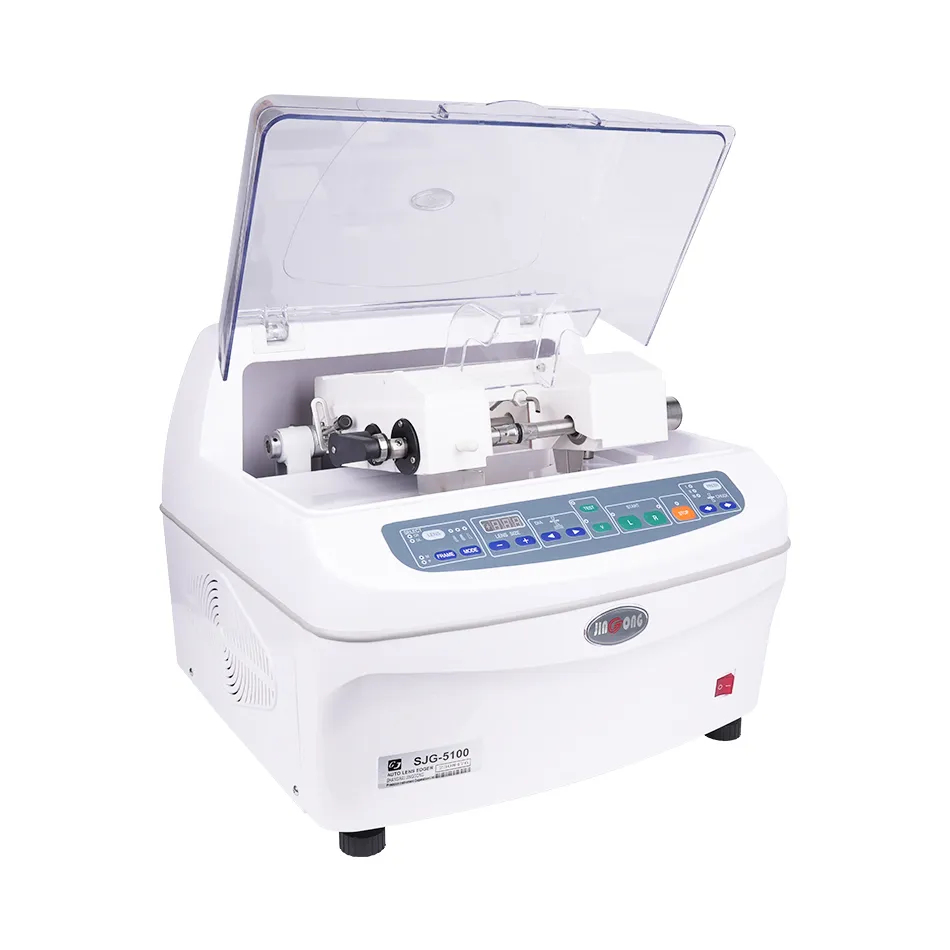

Auto Lens Edger

1.LCD digital display

2.lens clamp in gearless

3.3F Cut-Grinding pressure

4.Best grinding wheel

Main Machine

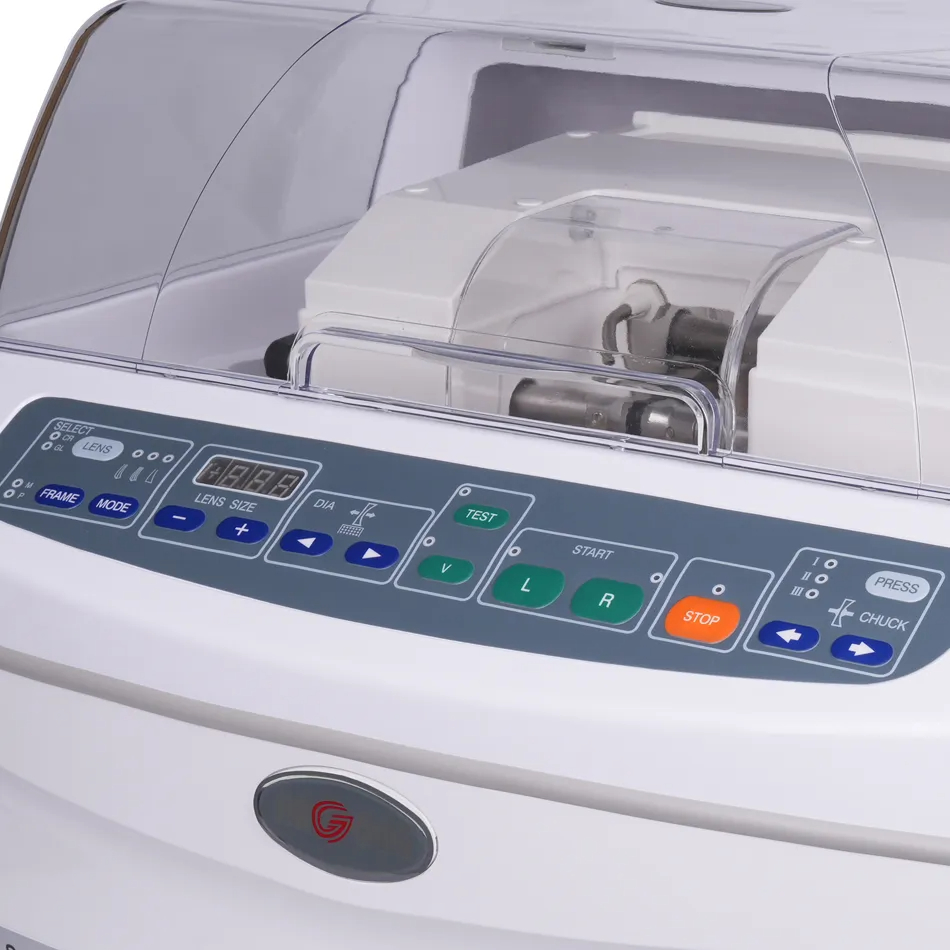

LCD digital display

Adjustment of 3F Cut-Grinding pressure

Adjustment of lens clamp in gearless

Cut-Grinding Time of Single Lens 3 min

Life performance of main grinding wheel 10,000 PCs (Below hardness 5# Grade)

Built-in count displayer

Special water case with multi-function of filter and eliminating alkali

System and Main Parts

Adopted auto-shadowing cut-grinding system to ensure pressure angle, axis power and radial power in a best position.

Diamond wheels adopted abroad material and made of 5+1 new technology reached international level.

In order to ensure good quality of the grinding lens, the geometry shape of grinding lens, revision of geometry shape,

adjustment of tip shape, cut-grinding power, cut-grinding speed, lens clamp and etc. Are controlled by Computer.

There is a technology space in the computer, in which the functions can be raised and expanded.

Cut-Grinding Clamp: 0.50.78MP

Workable Diameter: 2380

Glossiness: BVII

Grinding Shape: Inward(Face)96%; Outward99%

Noise: 60 dB

Grinding Wheel maximum Linear Velocity 15m/Sec. (3 Shift Gears)

Grinding Wheel Diameter: 100125

Grinding Wheel Chamber: 60100mm

Power Supply: AC 220V/50-60Hz

Main Machine Power: 350 W

Working Environment Temperature: 5o C40o C

Dimension: 488×480×410 mm

Weight: 58 Kg
