YZ-20P5 Ophthalmic Operation Microscope
Quantity:
-
+
Add To Cart
Get Price
Chat on WhatsApp:
Product Description
Features

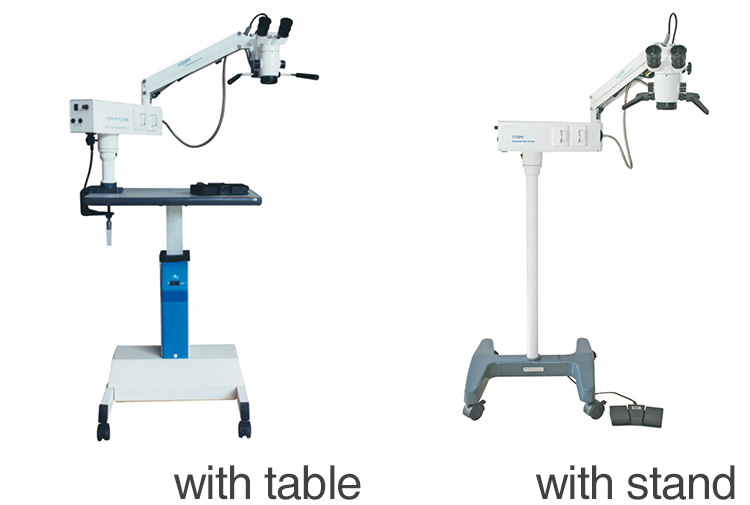

Column Stand can be refitted to holding stand. It can also be customized according to various operation requirements.
Technical Specification:
| Eye piece Magnification | 12.5x 16B |
| Objective Lens | f=200mm |
| Working Distance | 190mm |
| Magnification for Main Microscope | 5.3x, 8x, 12x |
| Diameter of Field | ∮37mm, ∮25mm,∮16.7mm, |
| Adjustable Diopter | ±6D |
| Adjustable Range of Pupil Distance | 50mm ~ 80mm |
| Maximal Resolution | 100LP/m |
| Illumination Source | 12V/100W, Medical cold-reflection Halogen Lamp |
| Illumination Type | 6° 0 °Coaxial cold light source illumination |
| Coaxial Illumination | ≥ 30000lx |
| Reaching Radius of Arm | 870mm |
| Adjustable Vertical Range | 700mm ~ 1100mm |
| Fine Focus Range | 30mm |
| Input Voltage | AC 220V ± 10% /50HZ ±1HZ, AC 110V±10%/60HZ ±1Hz |
| Power | 120VA |
| Fuse | T-type AC 250V T1.25A AC 125V T2.5 A |
| Electrical Safety Standard | Executive to GB 9706.1-2007, Class I |
| Packing Volume | 0.2cbm, 1 cartons |
| Total Gross Weight | 41kg |
Certificate
