Product Description
Features
Humanized Operation Design:

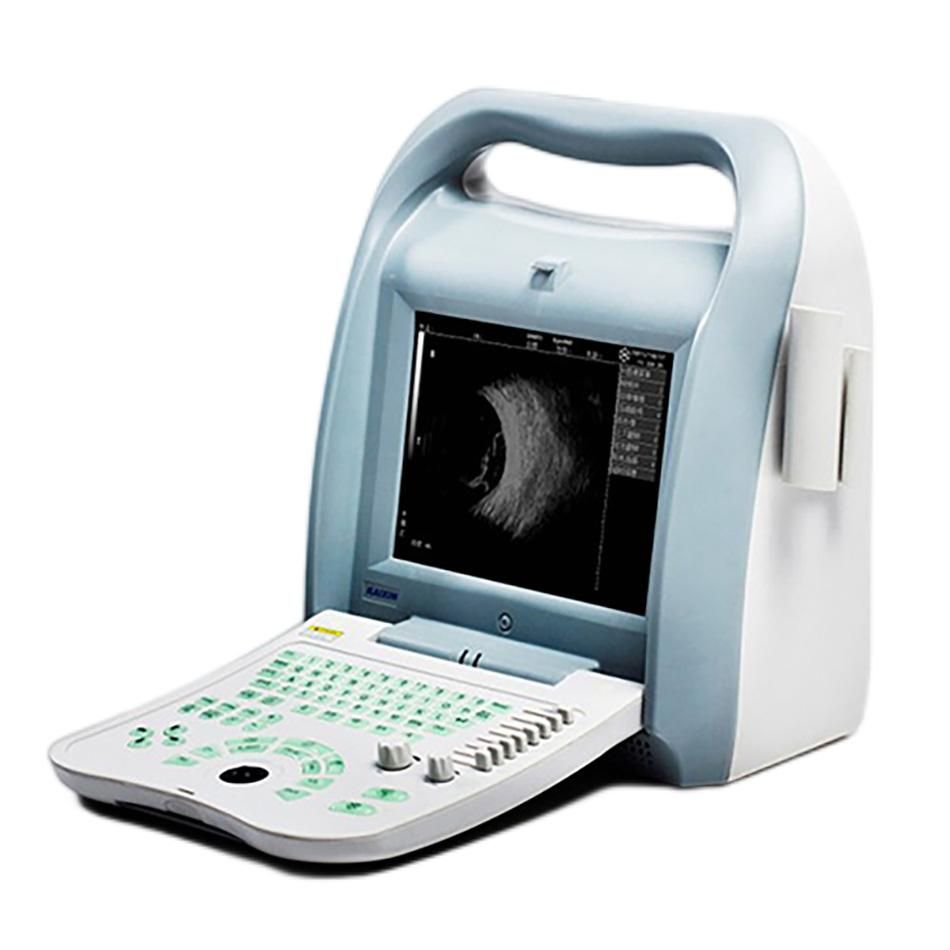

1.10.4’ adjustable LED screen;
2.Press one key could transport current image to PC workstation

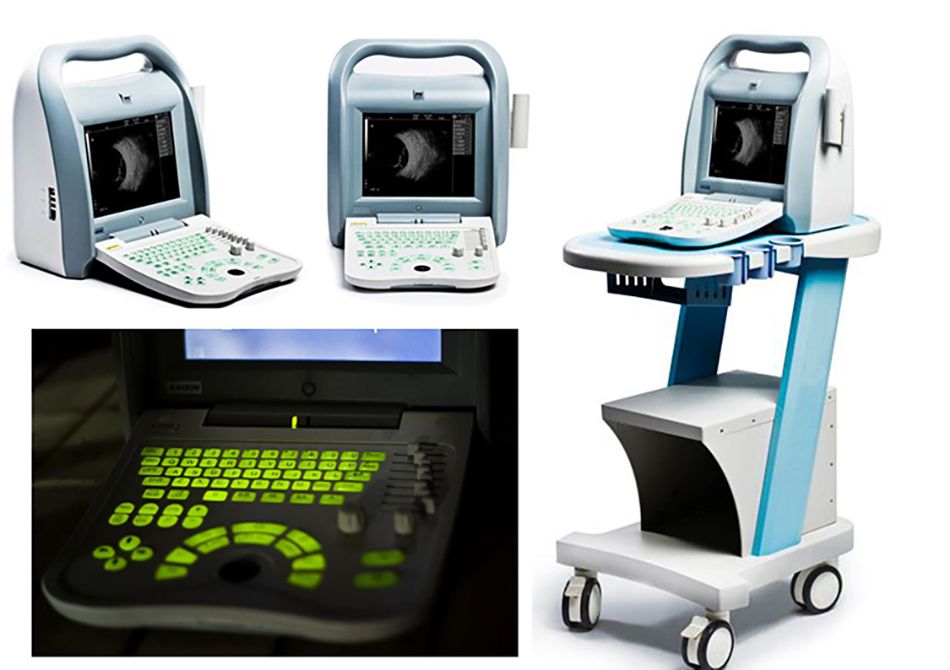

3.Equipped with keyboard floodlight, used for dark room.
Abundant Dates Management:
1.100 images permanent storage capacity
2.Standard workstation software, easily management and print data
Specifications
| A Scan | B Scan | ||
| Display | B, B/B, 4B, A five point measure, A single point measure | Scan mode | Sector scanning, stepping motor with high precision |
| Measurement Range | A five point:0-36mm; A single point: 0-72mm | Comparison of two or four images | |
| Accuracy | ±0.05mm | Depth options | 24,31,38,42,45,49,52,56mm |
| Measure | ACD, Lens, Vitreous CCT, and AXL (immersion) | Compression curve | 8 |
| Eye type | Normal/Aphakic/dense cataract/manual | ||
| Measure mode | Immersion and contact, manual and auto | Post processing | 8 |
| Calculation | Std. deviation, average, automatical measuring 8 groups and average, accompany waveform, results correctable. | Postponed depth range | 25-32mm |
| IOL formulas | SRK-II,SRK-T,BINKHORST,HOLLADAY,HOFFER-Q,HAIGIS | ||
Display of random two formulas, calculation of degree of IOL, DEM of emmetropization Of IOL, DAM of IOL, REEF after surgery, 100 groups of A scan results storage | |||
| A single point measurement | |||
| Magnifications | X1.0,x2.0,x4.0 | ||
| Depth Display | 0-36mm | ||
Certificate
