Features
With Normal, Vitreous body enhancement, retina observation model, SW-2100 is mainly used for diagnosis of introcular diseases,display the location, shaper range of the focus of infection and relationship with the surrounding tissue. Can be diagnosed vitreous opacity, retinal detachment, eye base tumors, etc. eye diseases. A scan is used to measure chamber depth, lens thickness,axial length, calculate diopter of implant IOL as well.
Specifications
A Scan | B Scan | ||
Frequency | 10MHz, with LED | Frequency | 10MHz/20MHz (optional) ,Magnetic driven, noiseless |
Depth | 40mm | Scanning Mode | Sector Scanning |
Precision | ±0.05 mm | Magnify | Multi continuous magnification,Real-Time magnification |
Measurement | Anterior chamber depth, lens thickness, | Resolution | Lateral ≤0.3mm; Vertical≤0.2mm |
vitreous body length, total length and average | Geometry position precision | Lateral ≤10%; Vertical≤5% | |
Depth | 60mm | ||
Gain of probe | 30dB-105dB | ||
Eye mode | Phakic / Aphakic / Dense / Various IOL | Scanning Angle | 53° |
IOL Formula | SRK-II, SRK-T, HOFFER-Q, HOLLADAY,BINKHORST-II, HAIGIS | Gray Scale | 256 |
False Color | Multi colors. OCT | ||
measurement type | Multigroup distances, perimeters and areas | ||
Stat. Calculation | Average and standard deviation | Movies | 100 images movie review, AVI JPG format image output |
Store | 10 Scanning results for each eye | Image postprocessing | multiple curves processing, Pseudo-color processing curve |

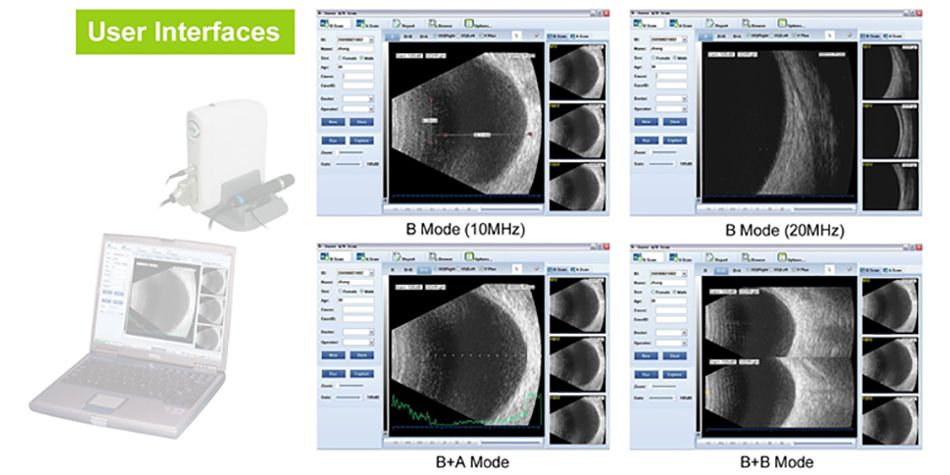

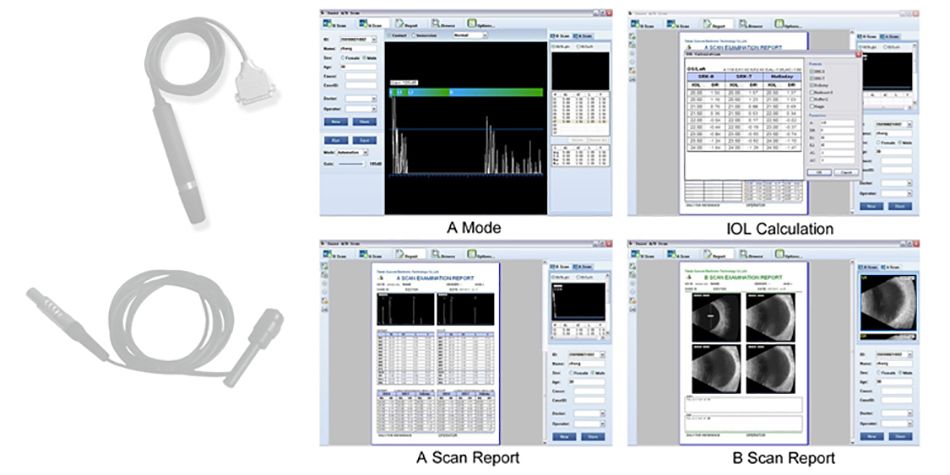

Display Mode | B, B+B, B+A, A | ||
Hint | Preset keyword | ||
Case Search | Multi-keywords | ||
Working Platform | Windows XP, VISTA, WINDOWS7 | ||
User-defined report template | with | ||
