Features

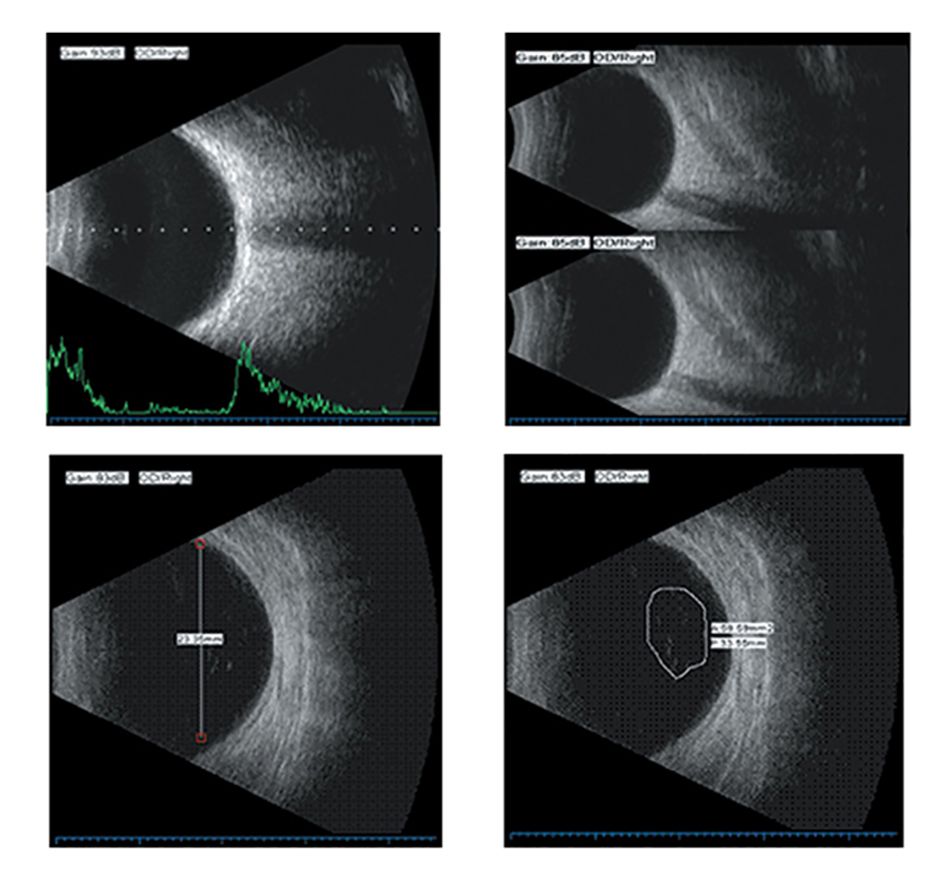

SAB-500 ab scan with normal, vitreous body enhancement, retina observation mode, mainly used for diagnosis of intraocular diseases, display the location, shape range of the focus of infection and the relationship with the surrounding tissue. Can be diagnosed vitreous opacity, retinal detachment, eye base tumors etc. eye diseases. A scan is used to measure anterior chamber depth, lens thickness, axial length, calculate diopter of implant IOL as well.
Specifications
A Scan | B Scan | |||
Frequency | 10MHz, with LED | Frequency: | 10MHz/20MHz (optional) ,Magnetic driven, noiseless | |
Depth | 40mm | Scanning Mode | Sector Scanning | |
Precision | ±0.05 mm | Magnify | Multicontinuous magnification, Real-Time magnification | |
Measurement | Anterior chamber depth, lens thickness, vitreous body length, total length and average | Resolution | Lateral ≤0.3mm; Vertical≤0.2mm | |
Eye mode | Phakic / Aphakic / Dense / Various IOL | Geometry position precision | Lateral ≤10%; Vertical≤5% | |
IOL Formula | SRK-II, SRK-T, HOFFER-Q, HOLLADAY, BINKHORST-II, HAIGIS | Depth | 60mm | |
Stat. Calculation | Average and standard deviation | Enhance the part of vitreous body and retina | ||
Store | 10 Scanning results for each eye | Gain of probe | 30dB-105dB | |
Display Mode | B, B+B, B+A, A | Scanning Angle | 53° | |
Hint | preset keyword | Gray Scale | 256 | |
Case Search | Multi-keywords | False Color | Multi colors. OCT | |
Screen | 15 inch LCD | Measurement type | multigroup distances, perimeters and areas | |
Built-in battery | can use 4 hours | Image post processing | multiple curves processing, Pseudo-color processing curve | |
User-defined report template poor credit secured loans | Movies | 100 images movie review, AVI JPG format image output | ||
