Features

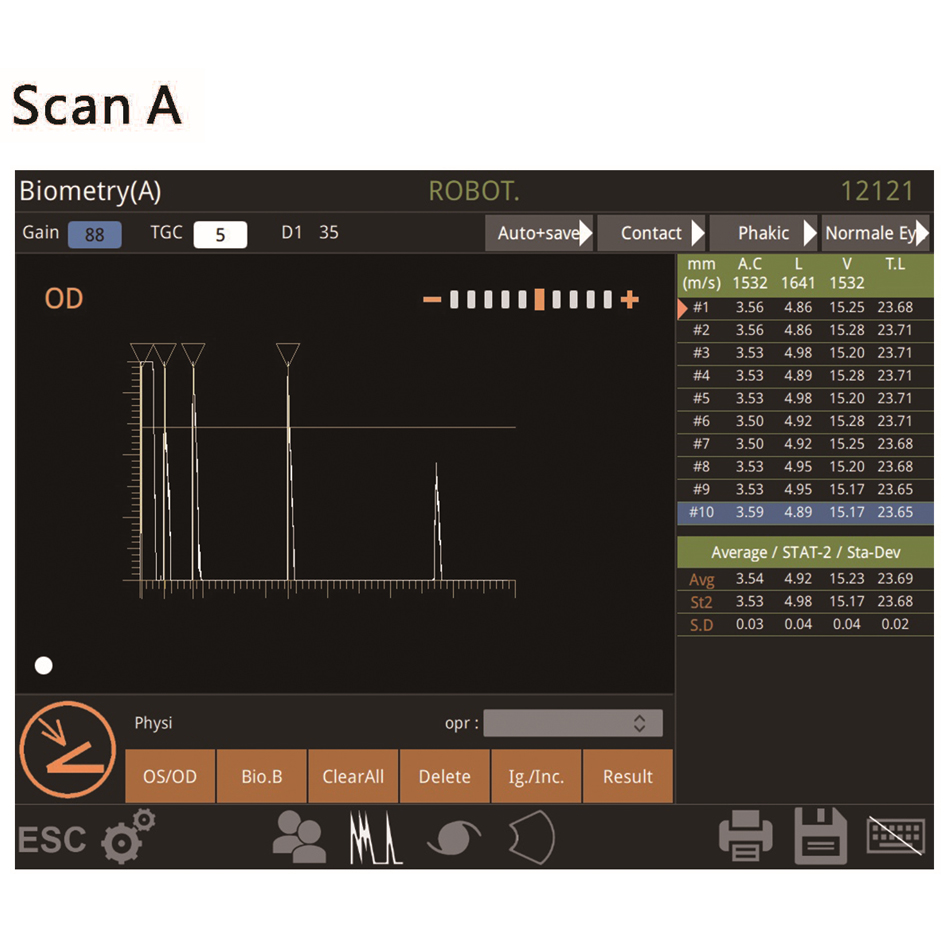

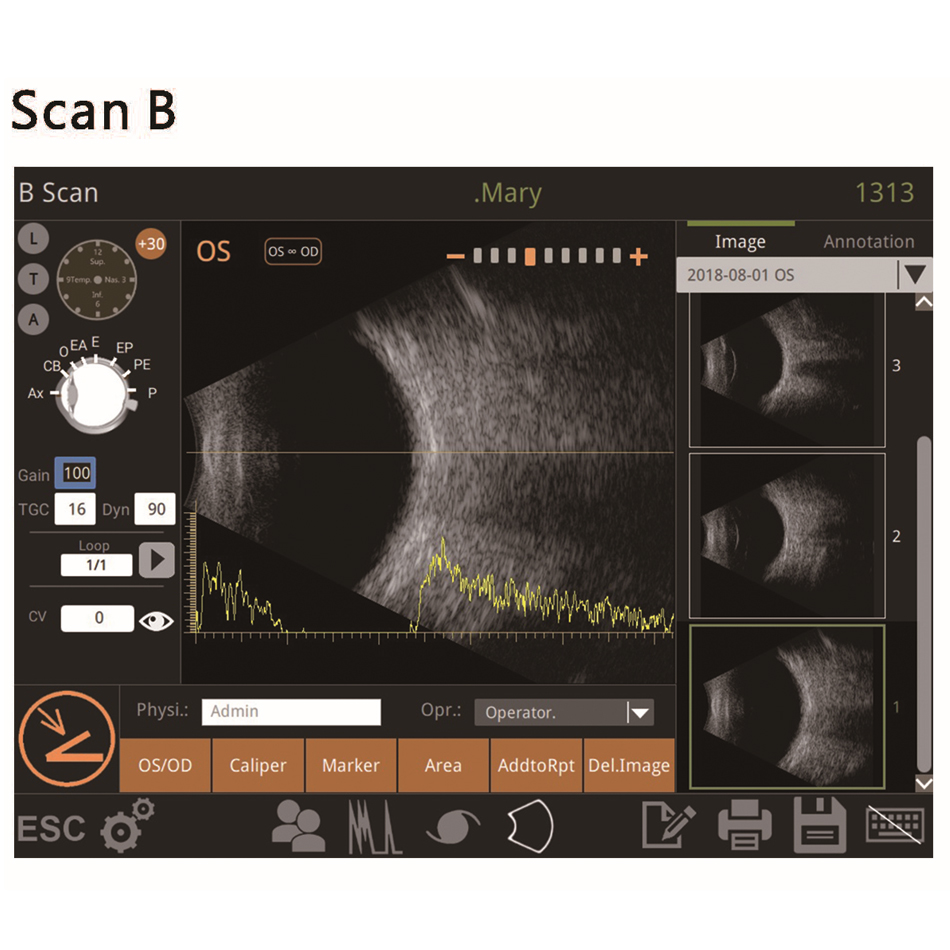

RetiWave-1000 is digital ultrasonic system for ophthalmology. With advanced intelligent digital software the parameters of freezed and stored images could be adjusted voluntarily.Scan A measures data for every part of the eyeball as anterior chamber depth, lens thickness,axial length and so on which are needed in ophthalmic surgeries, and calculates IOL by axial length. Scan B displays profile images of the eyeball clearly and directly. Scanning anatomical formsand nidi inside the eyeball, doctors can diagnose accurately for examination of cataract, vitreousbody disease, ocular trauma, detachment of retina or choroid, macula disease, and intraoculartumor, etc.
Specifications
EEN Scan Biometry | |
Sonde frequentie | 10MHz |
Meten model | Contact |
Meetbereik | Over 5mm ~ 40mm |
Meetfout | ≤ 0.05mm |
Meten type | Lengte van optische as, automatische berekening, resultaat analyze |
Afbeelding bevriezing | Afbeelding bevriezing auto, auto + |
Preservable, handleiding | |
Intra-oculaire lens Formule | SRK-T, SRK II, HOLLADAY, BINKHORST-II,HOFFER-Q, HAIGISI |
Gain | 20 ~ 110dB |
Tijd gain aanpassing | 0 ~ 30dB |

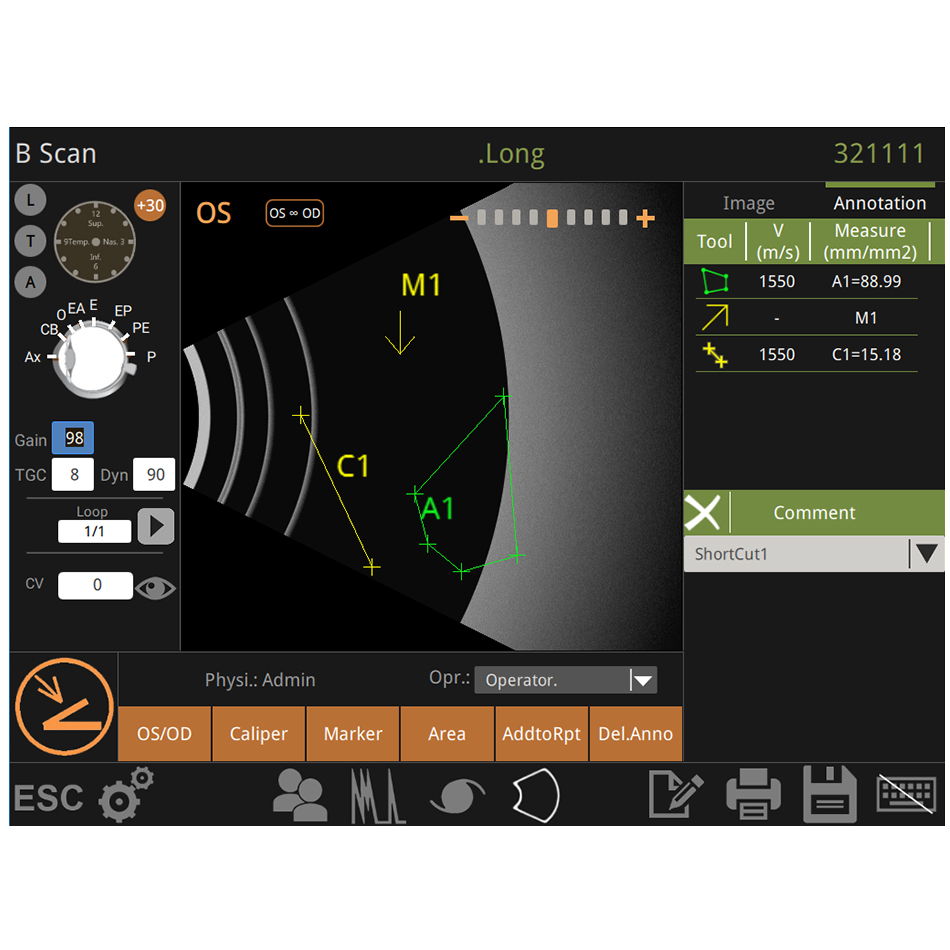

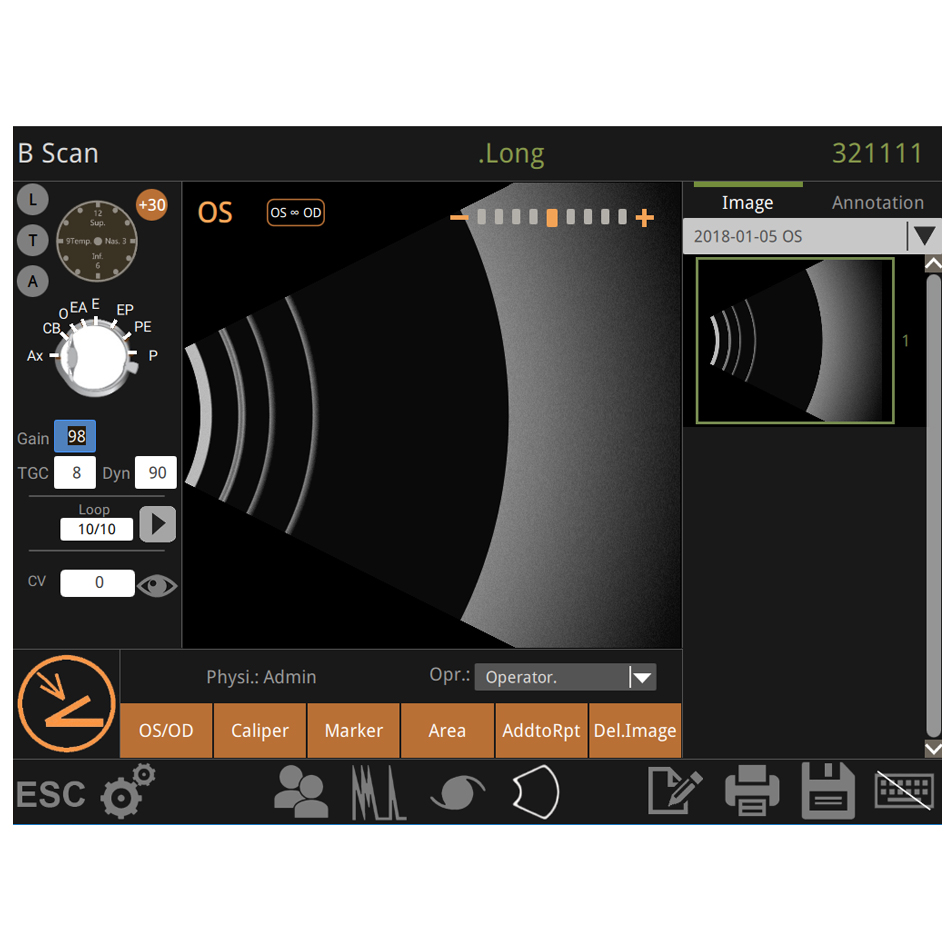

B Scan | |
Sonde Frequentie | 10Mhz |
Indringende Diepte | ≥ 50mm |
Axiale Resolutie | ≤ 0.2mm |
Laterale Resolutie | ≤ 0.3mm |
Gain Aanpassing | 20-110db |
Tijd Gain Aanpassing | 0-30db |
Bediening Modus | Oogschelp, gel, waterige capsule |
Post Verwerking Meetinstrumenten | Gebied, Lengte, Mark en Annotatie |
Beoordelingen | 100 beelden beschikbaar |
Anderen | |
Size | 340mm (L) * 320mm(W)* 115 (H) |
Gewicht | 10KG |
Voeding | 100-240V 50/60V |
