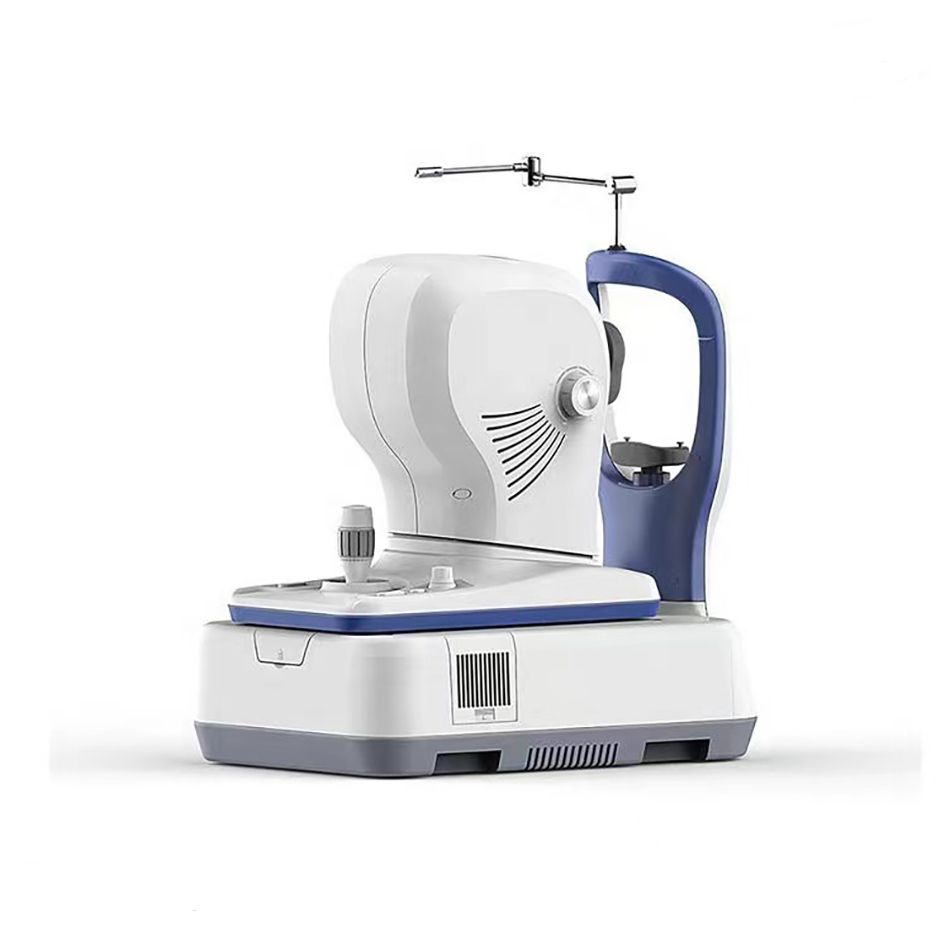

OSE-2800 OCT Optical Coherence Tomography
Specifications
OCT IMAGING | |
Methodology | Spectral domain OCT |
Optical Source | 840nm (Light Center Wavelength) |
Axial Resolution (optical) | 5 microns (optical), 2.7 microns (digital) |
Transverse Resolution | 15 microns (optical), 3 microns (digital) |
A-scan Depth | 3.0 mm |
Diopter Range | – 20 to 20 diopters |

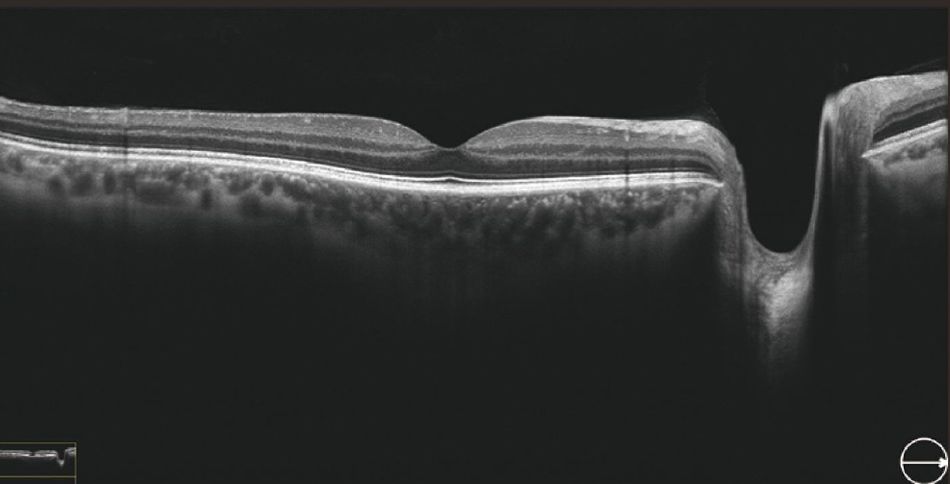

Scan Patterns | Macula: HD line scan (6 mm or 12 mm), 3D scan (6 mm x 6 mm), 6-line radial scan, Multi (X-Y: 5 *5) Disc: 3Dscan (6 mm x 6 mm) Anterior:HD line scan (6 mm), 6-line radial scan |
Fundus Imaging | |
Minimum Pupil Diameter | 3.0mm |
Field of view | 40。 * 30 |
Soft Analysis | |

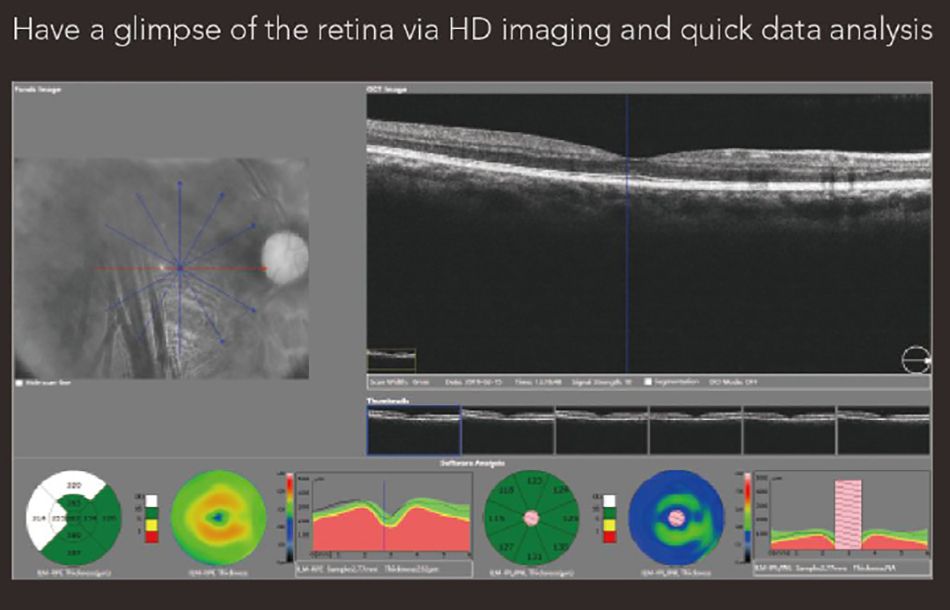

Macula | Retina thickness analysis; 3D view; En-face analysis; Progression analysis; EDI function |
Glaucoma | RNFL analysis; Ganglion cell analysis; Cup-disk analysis, Progression analysis; OU comparative analysis |

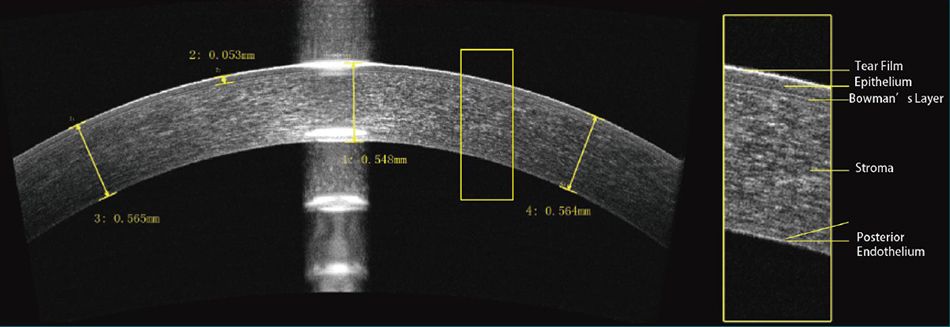

Anterior Segment | Manual measurement; Corneal thickness analysis; Epithelial thinckness analysis |
Others | DICOM conformance; Remote viewer software available |
Weight | 28.8kg |
Dimension | 532 mm (L) x 360 mm (W))x 540 mm (H) |
Source voltage | AC 100 – 240 V |
Frequency | 50HZ 60HZ |
Power Input | 180VA |
