Features
High Performance at a low price: Modular design increase flexibility, reusability and maintainability. We can provide personalized design according to the customer’s needs.

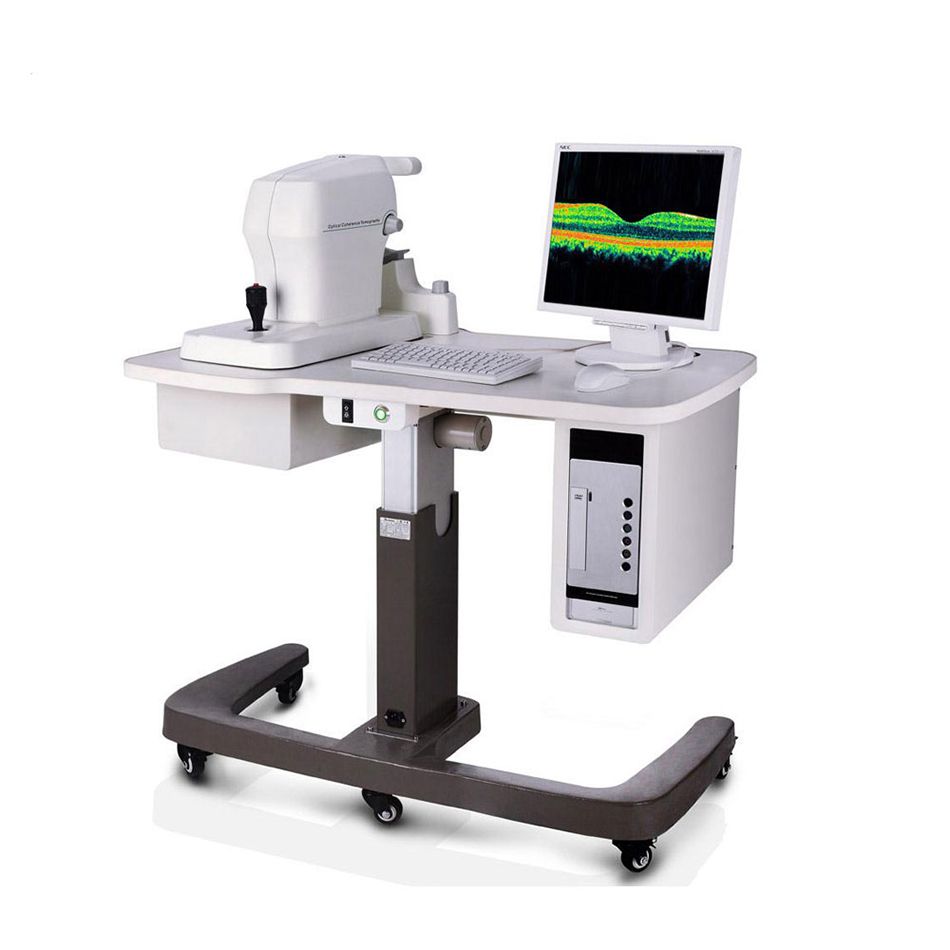

With the powerful software, OSE-2000 has clear, easy to use interface and support multi-language.
Anterior segment analysis template: anterior segment with optional modules, OSE-2000 be able to observe and analyzer the anterior segment.
Specifications
Tomographic Imaging | |

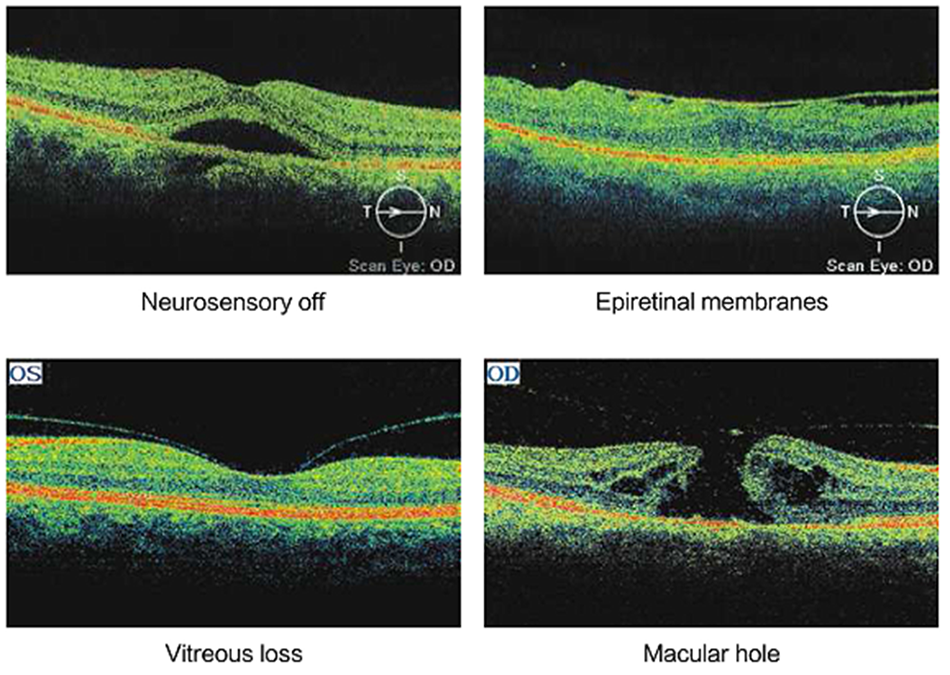

Purpose | Cross sectional imaging of the retina |
Signal type | Photon scattering from tissue |
Light source | Super luminescent diode, 830nm |
Optical power | ≤ 0.7mW (on the cornea) |
Axial resolution | 5-8 um in tissue |
Lateral resolution | 15 um in tissue |
Scanners | Galvanometer mirror |
Scan mode | Line, concentric ring, repeat, arbitrary-angle |
Scan rate | 400 A- scan/s |
Acquisition time | 1 sec |
Scan depth | 2mm in tissue |
Fundus Imaging | |
Purpose | Fundus observation and real-time registration of OCT imaging |
Signal type | CCD imaging |
Field angle | 29°x 23° |
Viewing method | 15-inch color flat panel display |
Illumination | LED |
Internal fixation | LED dot matrix |
External fixtion | Adjustable blinking LED |
Minimum pupil diameter | 3.5mm |
