Features
1.Comprehensive real-time monitoring , heiji-krakau physiological blind spot monitoring. Gaze tracking/head position tracking, automatic measurement of pupil diameter, reduce the impact of pupil effect on visual field detection.
2.Personalized design, accurate clinical analysis, accurate and rapid examination strategy.
3.Under international Goldman standard, providing a variety of calssic test procedures and report analysis.
Specifications
Basic specification | |
Inspection range | 90° |
Inspection distance | 30cm |
Background light brightness | White 31.5asb |
Visual target brightness | 1asb— -10000asb |
Visual target size | GoldmannIII |
Visual target interval time | 200ms |
Visual target interval time | Standard or adjustment according to patient reflection |
Threshold test model | Center5-°16, center10° -68, 24 -2, 30-2, 30° -60° nasal step |
Upper Threshold test model | 30°- 40, 30°-76, P-60, 60°-81, 60°-120,190°-135 nasal side |
Special detection strategy | Esterman monocular, Esterman binocular . user- customized test, 150P driver monocular fast detection, 150P driver monocular standard detection , upper 36 detection, blind spot detection,150horizontal straightness detection |
Pupil size test | Automatic |
Fixation monitoring | Blind spot monitoring , eye position eye position deviation alarm, eye deviation curve |
Environment light detection | Automatic |

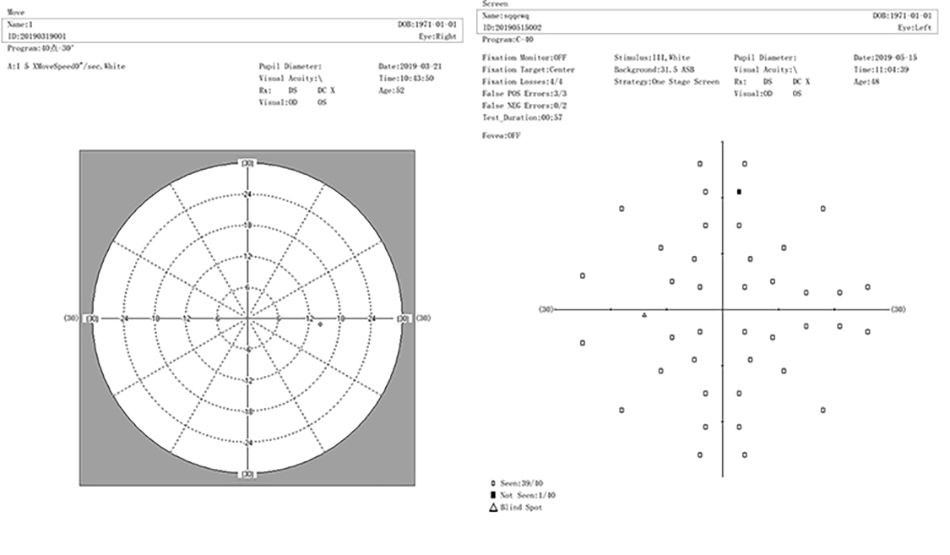

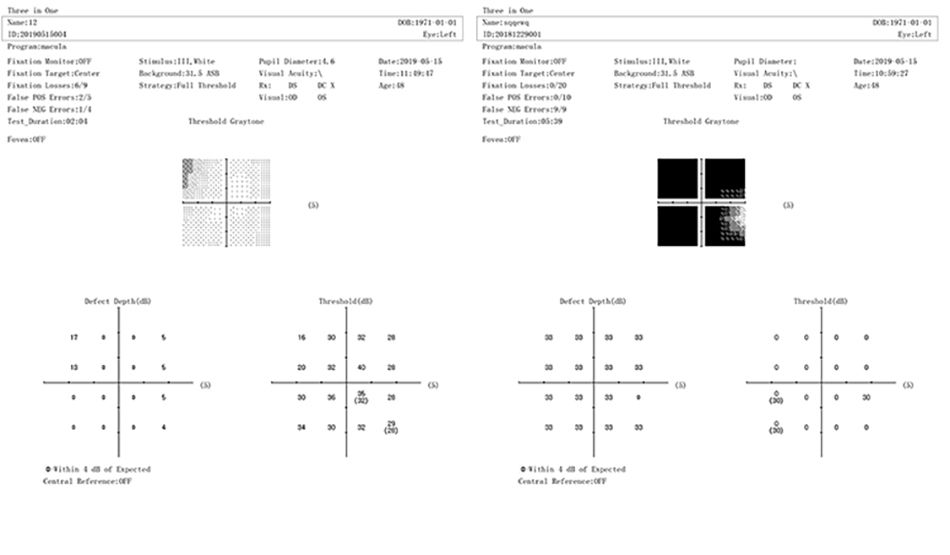

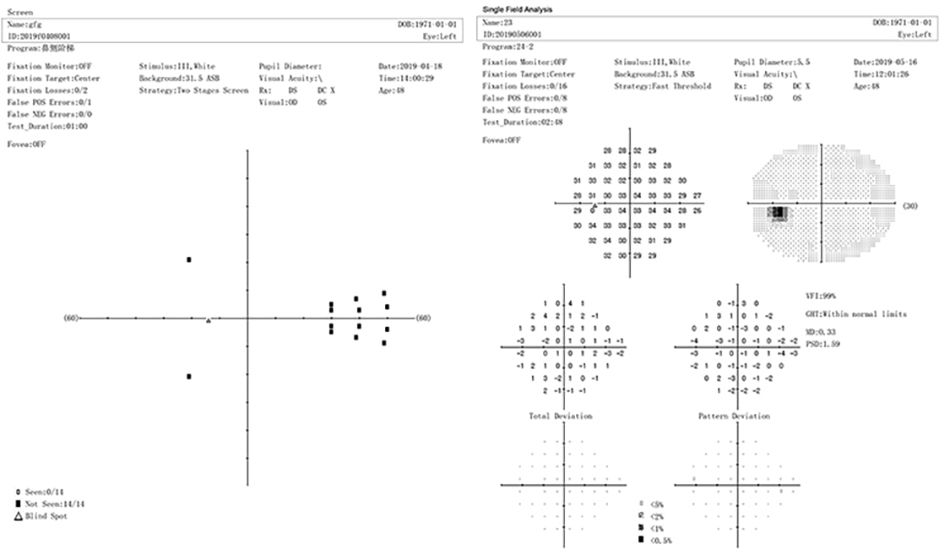

Analysis software | Reliability analysis , single vision report, triple visionreport, GPA half vision analysis, GPA glaucoma developing analysis , VFI vision index analysis |
Operation system | Win7 above |
Others | |
Size | 412mm ( length) * 497mm ( width ) * 513mm ( height ) |
Weight | 17kg |
