Usage Guider
1.The silver ring on the lens holder should be held toward the patient's eye during examination, which can ensure the
right using direction and may provide for best image quality;
2.Keep the lens centring on the patients pupil;
3. Hold the lens far enough from the patient's eye so that the retinal image has the same diameter with the lens;
4.Keep the illumination sources as dark as possible to minimize reflections and image contrast;
5.Keep the lens clean to minimize glare from the lens surface

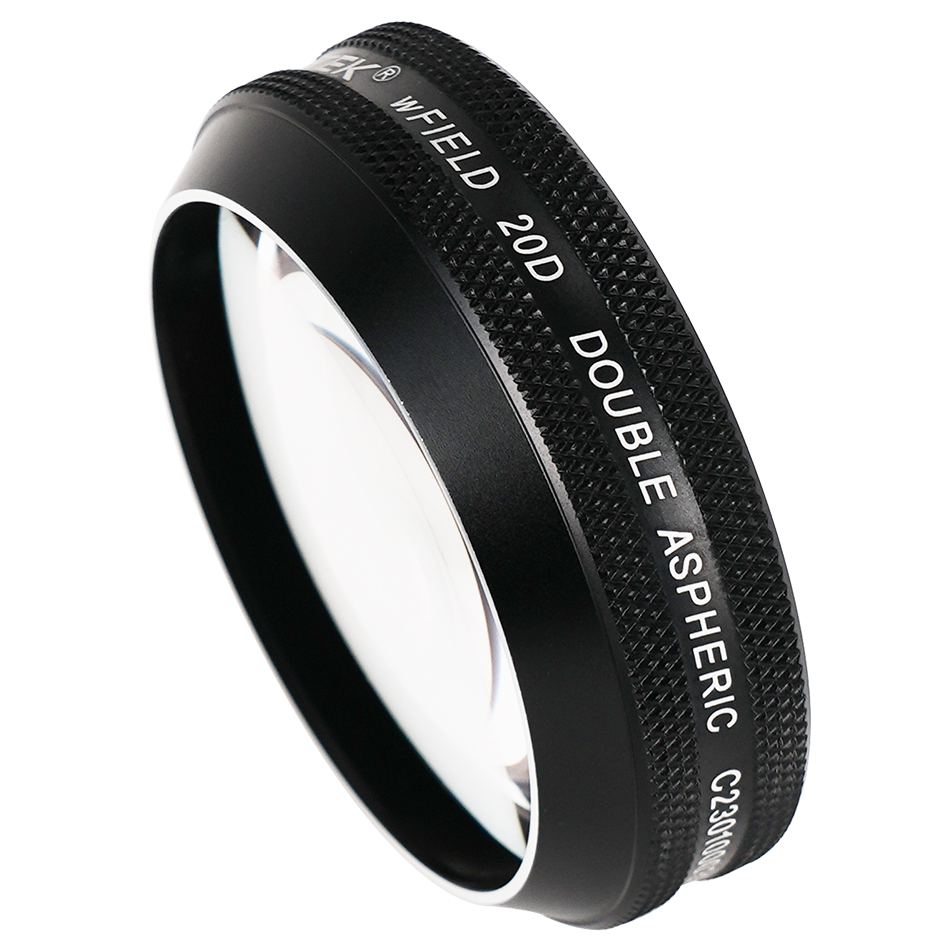

20D:(can be used with BIO)
Magnification ratio: 2.97X
Laser Spot Mag: 0.34x
Static FOV: 48
Dynamic FOV: na

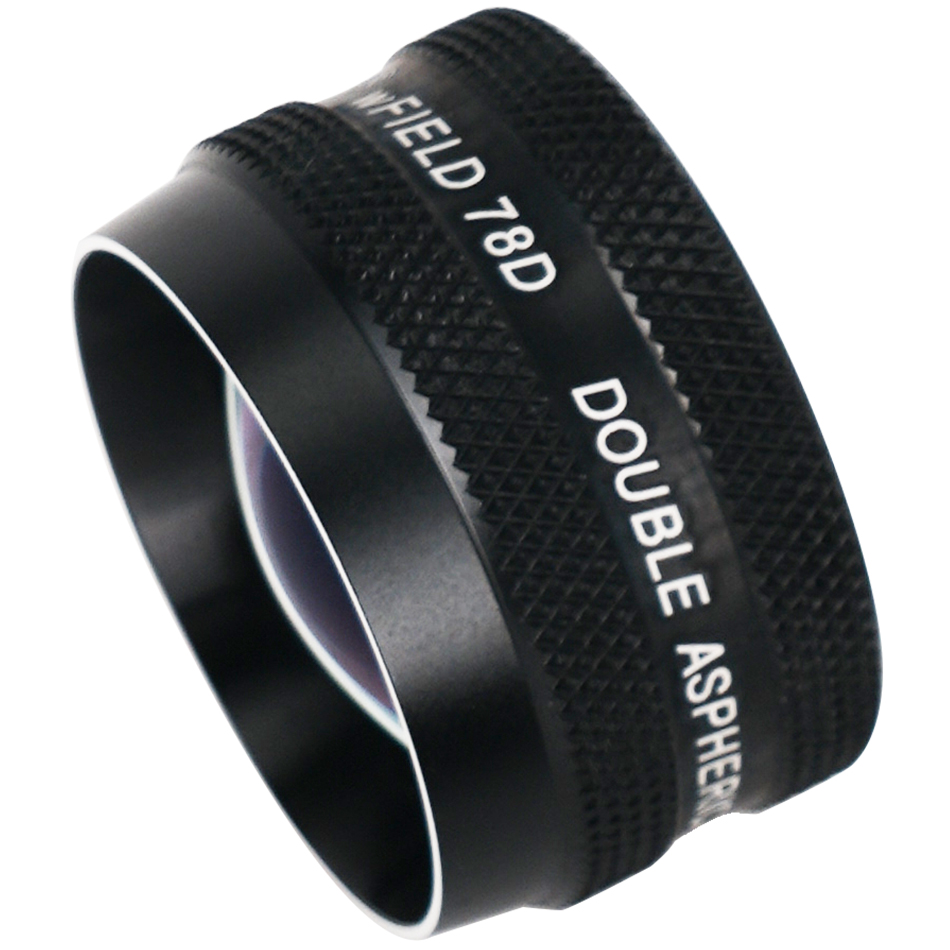

78D Specification
Magnification ratio: 0.93X
Laser Spot Mag: 1.07x
Static FOV: 82
Dynamic FOV: 108

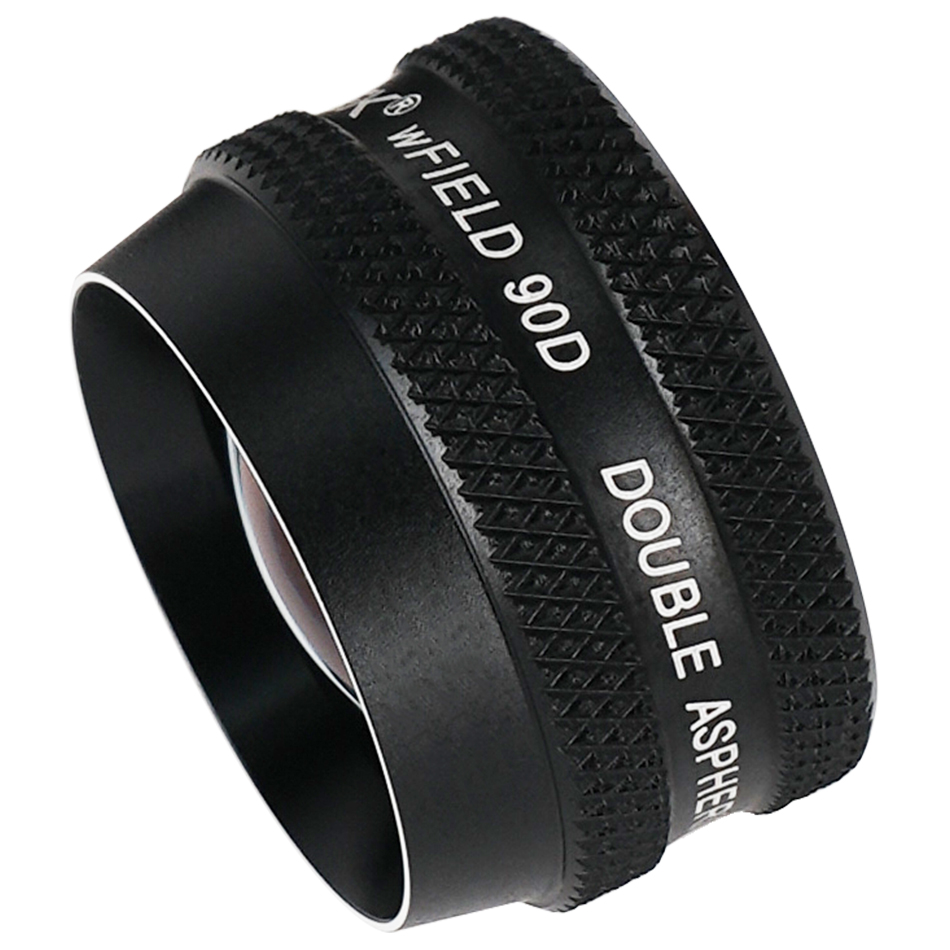

90D Specification
Magnification ratio: 0.76X
Laser Spot Mag: 1.33x
Static FOV: 85
Dynamic FOV: 121
