Features

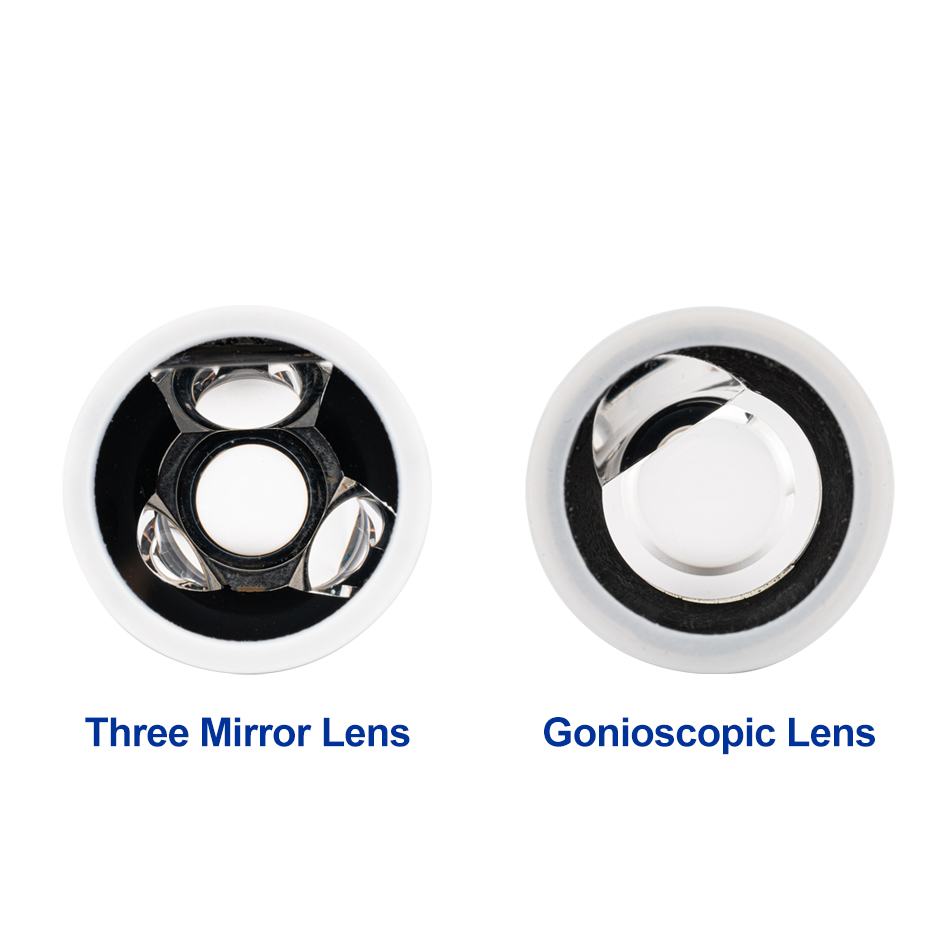

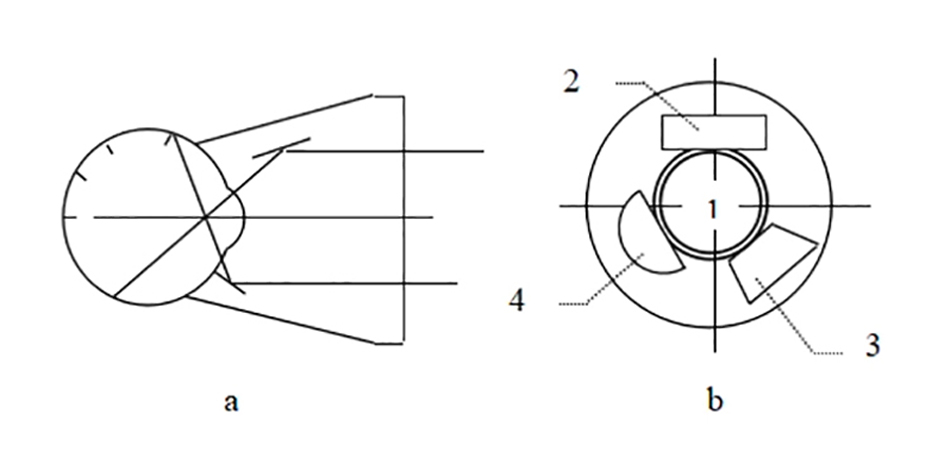

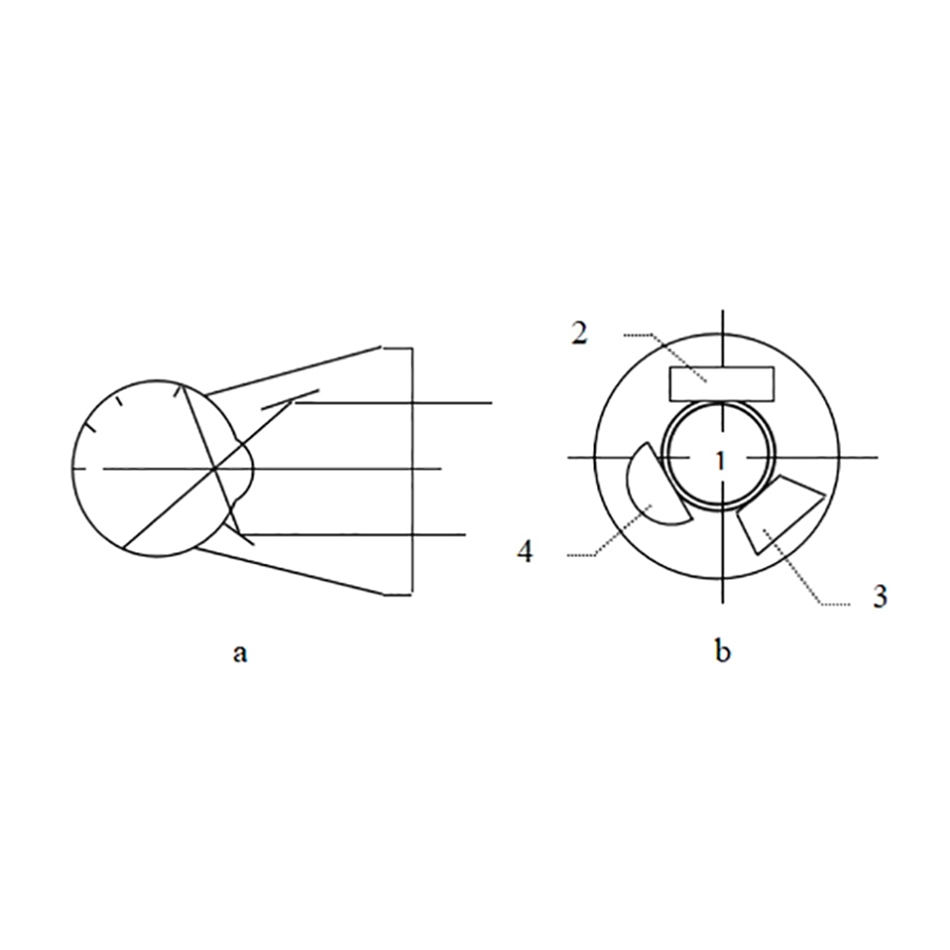

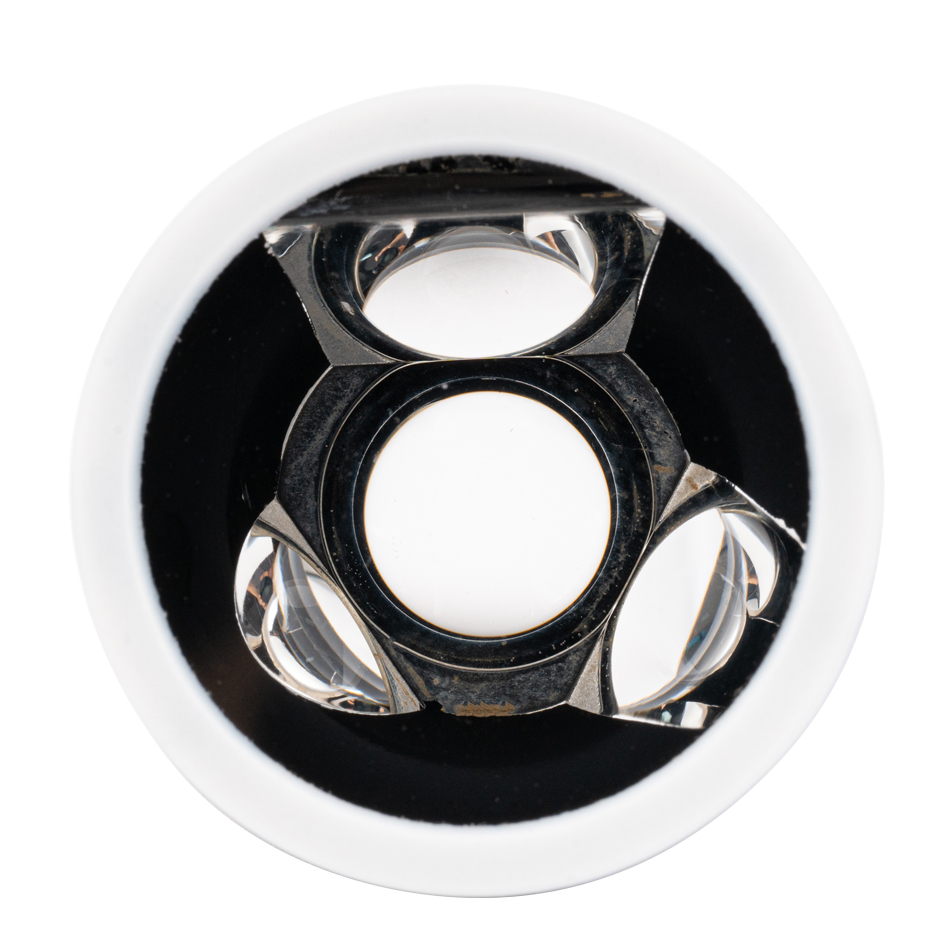

Three-sided corner mirror. Trihedral corner mirror is an optical element composed of a concave lens and three different angles (73 °, 67 °, 59 °). The following figure shows the appearance of the case when it comes in contact with the eyes, and b is the plan view

When in use, the surface of the concave lens was pressed against the cornea and observed with a slit lamp microscope. In the picture:

1 To view the light path in the center of the retina;

2 To view the light path from the area around the center to the equator;

3 To view the light path from the equator to the front of the surrounding area;

4 Look at the rear of the perimeter.

After using a trinocular lens, the slit lamp microscope will be able to observe more parts of the human eye, but the eye to be examined should be dilated and anesthetized during use.

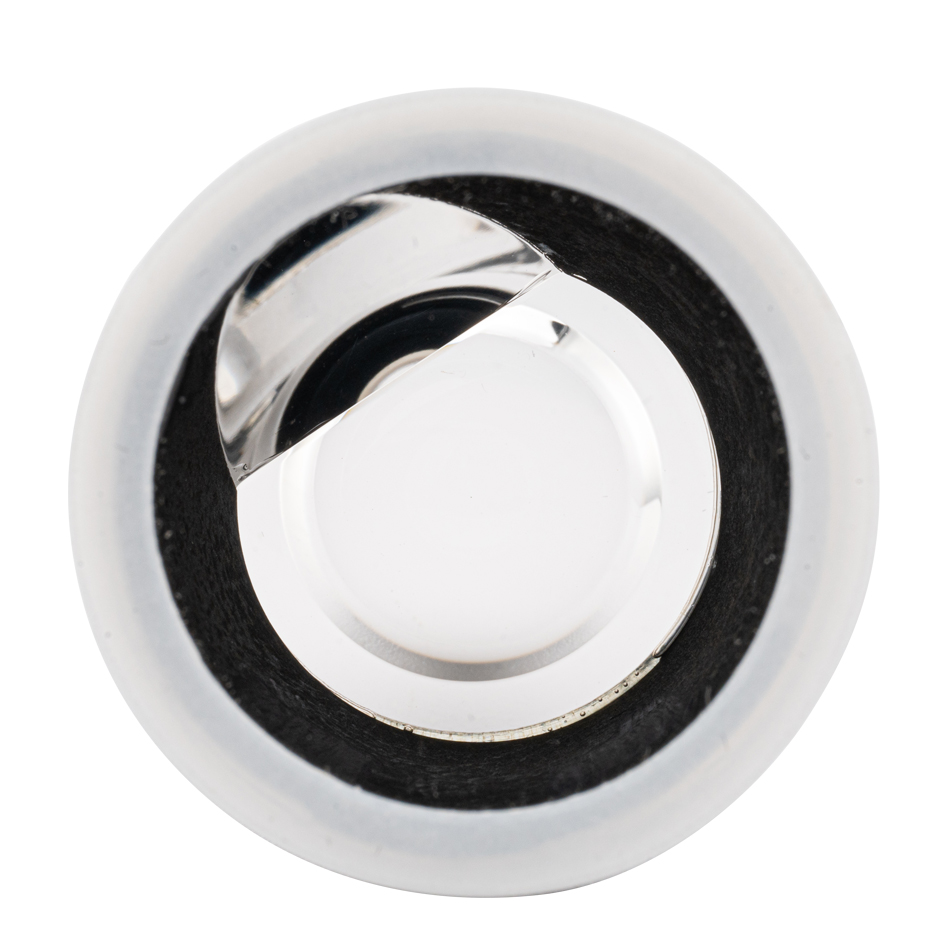

Anterior angle mirror. The shape and structure of the anterior angle mirror is similar to that of a three-sided mirror, except that its reflector only has a tilt angle (62 °), so it is only used to view the anterior angle. The reflecting surface of the anterior angle mirror can be one, Can be made into multiple (3), usually the latter is appropriate. Because it does not need to rotate after being applied to the cornea, you can see the state of the anterior chamber angle in all directions. The eye being examined should be anesthetized during use.

CLEAN:

Clean with alcohol wipe.

DISINFECT:

Soak 20 minutes in glutaraldehyde ( 2% or 3.4% solution ), or 10 minutes in 10% bleach solution, mixed 1 part bleach to 9 parts water.

Caution:

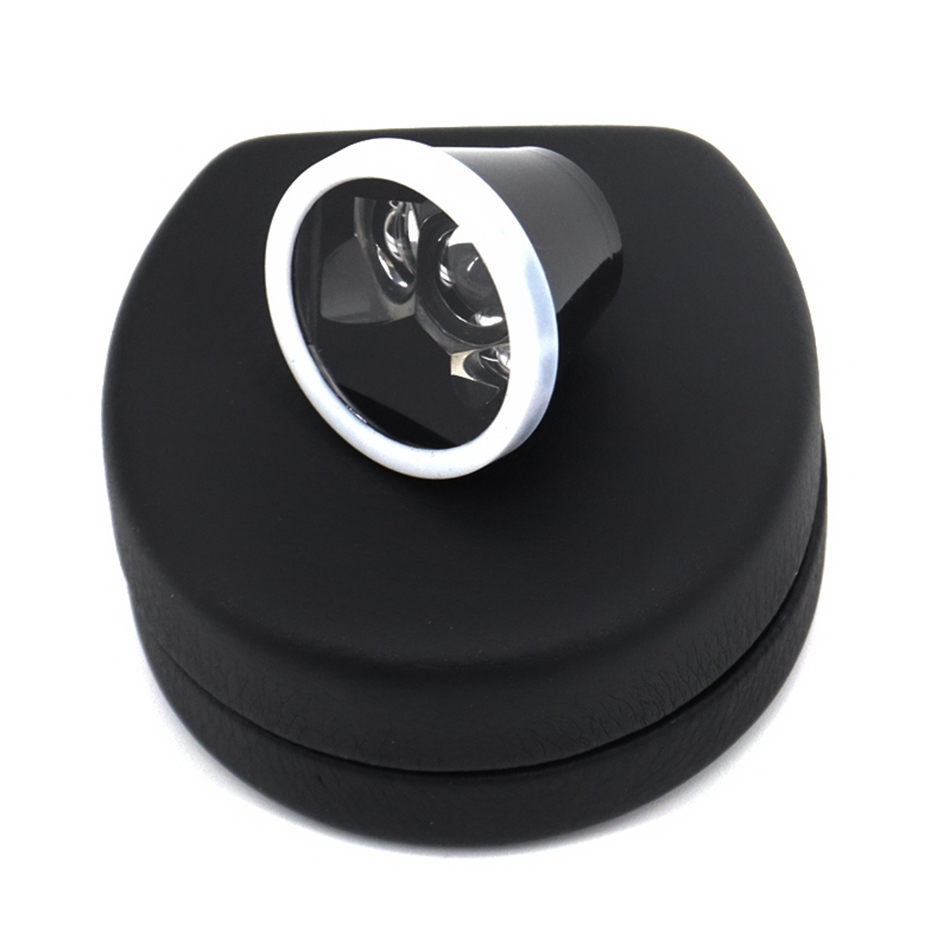

To avoid lens damage, do not exceed recommended exposure times. Rinse with cool or tepid water, 3 cycles of 1 minute is recommended. Dry and store in case.

STERILIZE:

Ethylene oxide gas 1 hour at 130F ( 54C ), aerate 12 hours.

WARNING:

NEVER STEAM AUTOCLAVE OR BOIL.
