Magnification Changer: Rotating drum change
Magnification: 6X 10X 16X 25X 40X
Eyepiece: 12.5X
Field of view: 6x(φ33) 10x(φ22) 16x(φ14) 25x(φ8.5) 40x(φ5.5) mm
Pupil Range: 52 - 82 mm
Diopter: ±7D

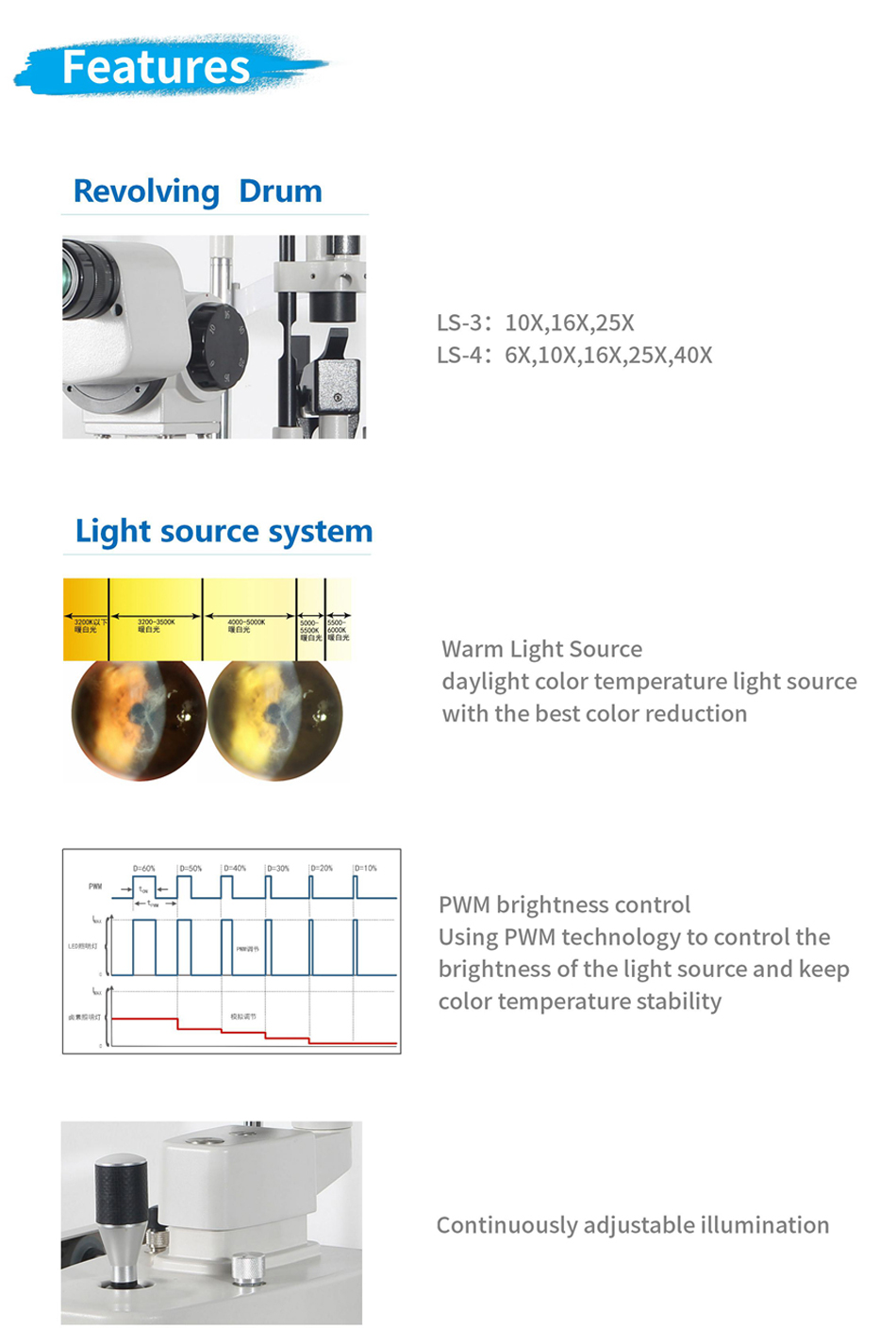

Features
5 Step Magnification
LED Illumination
More than 50 000 hours working time
Reduce eye's stress
Provide bright and sharp light
Continuous illumination control
Possible accessories
Yellow filter

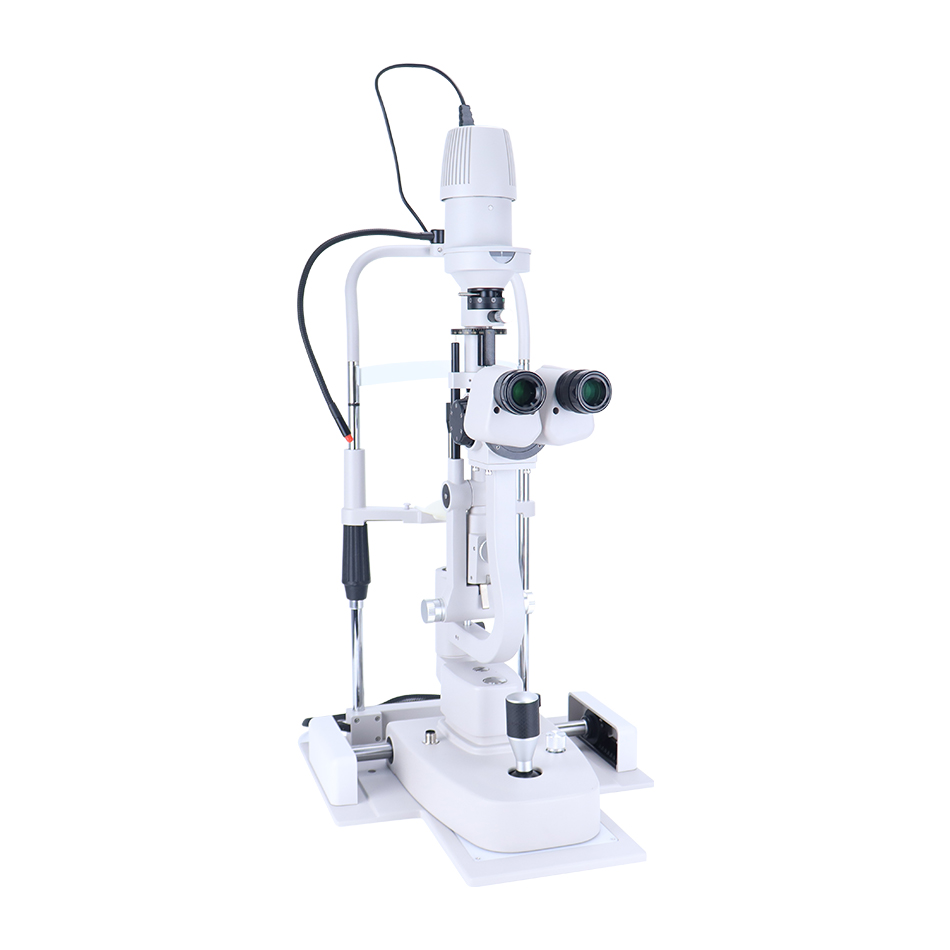

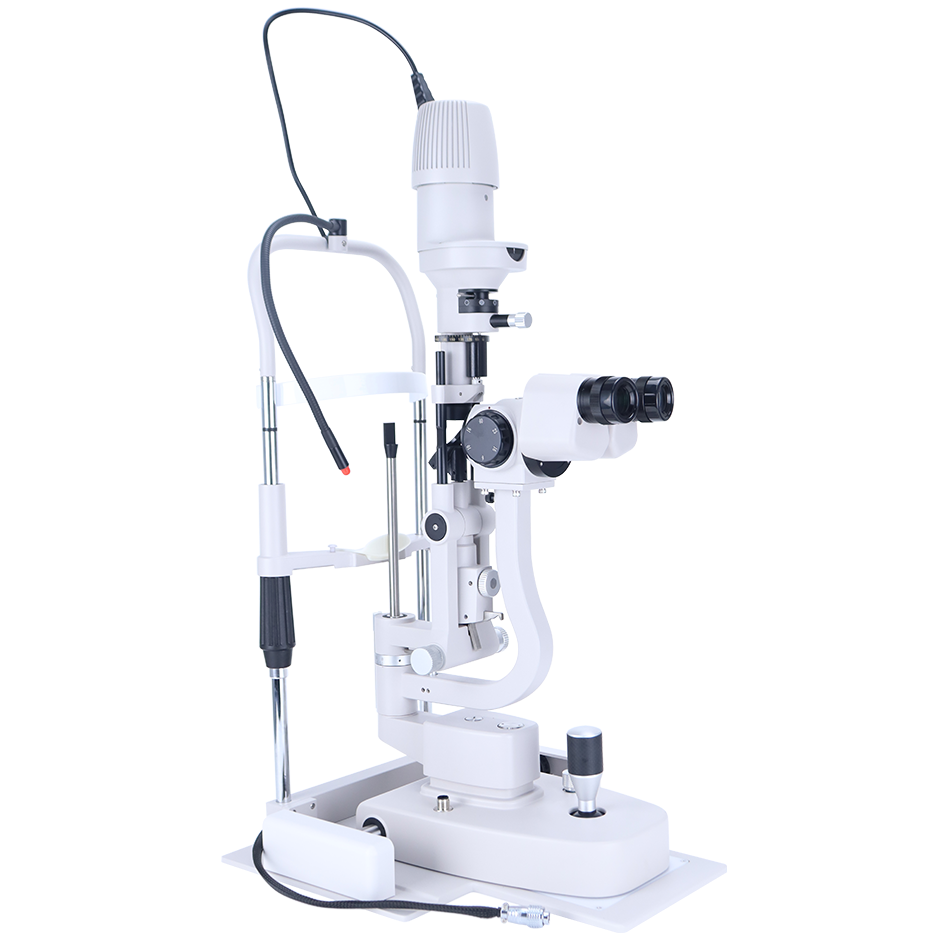

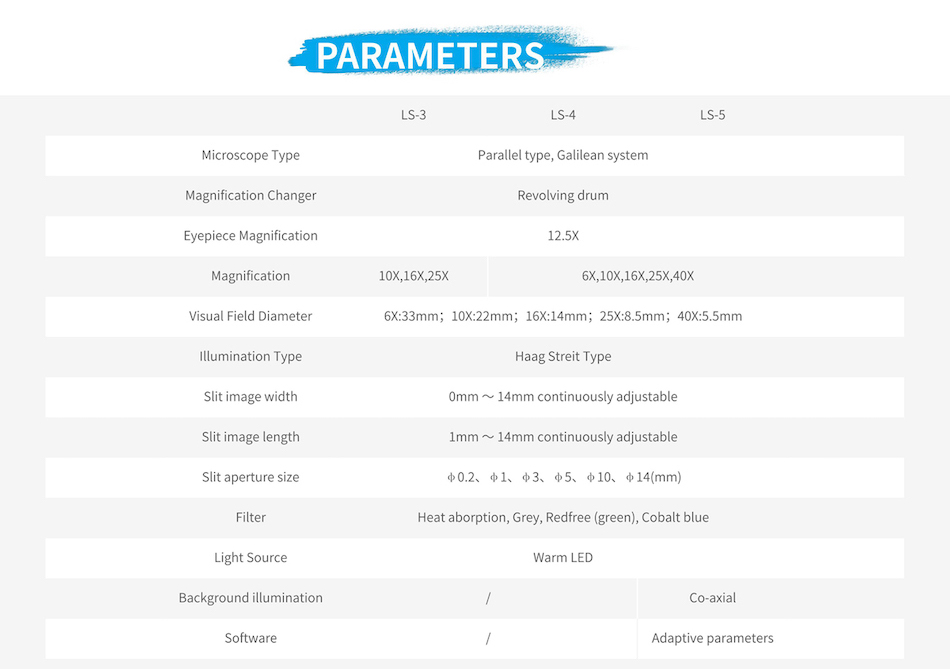

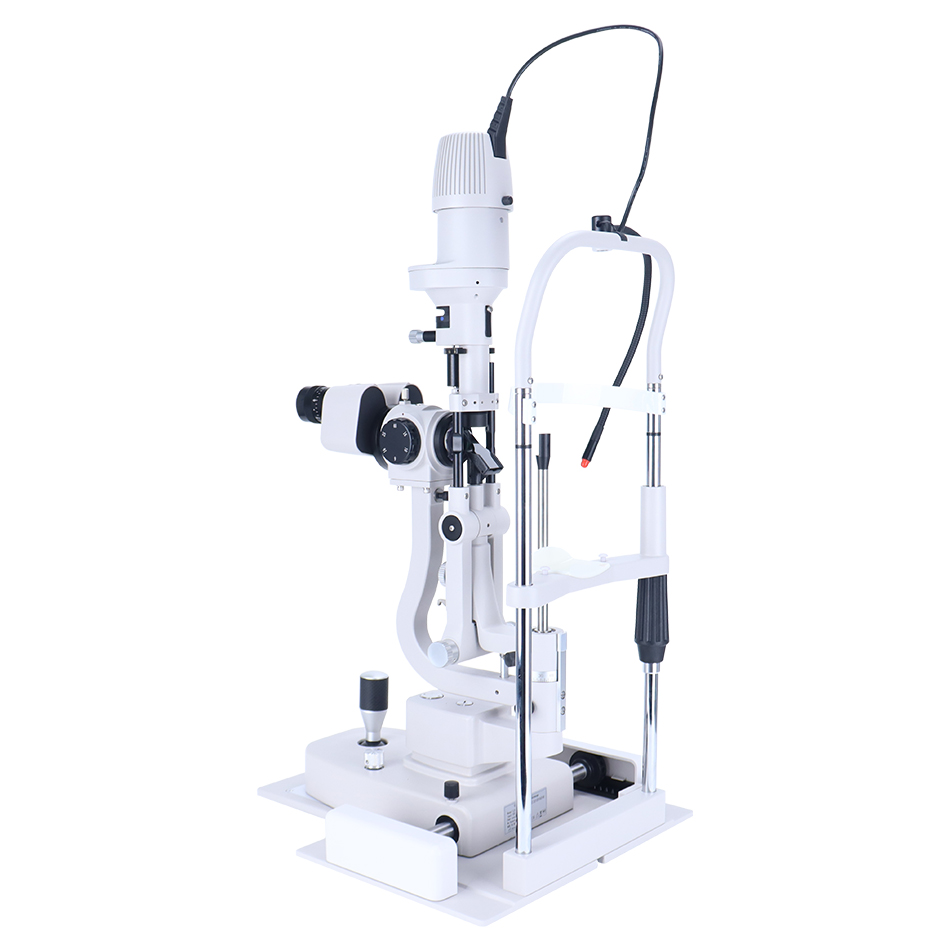

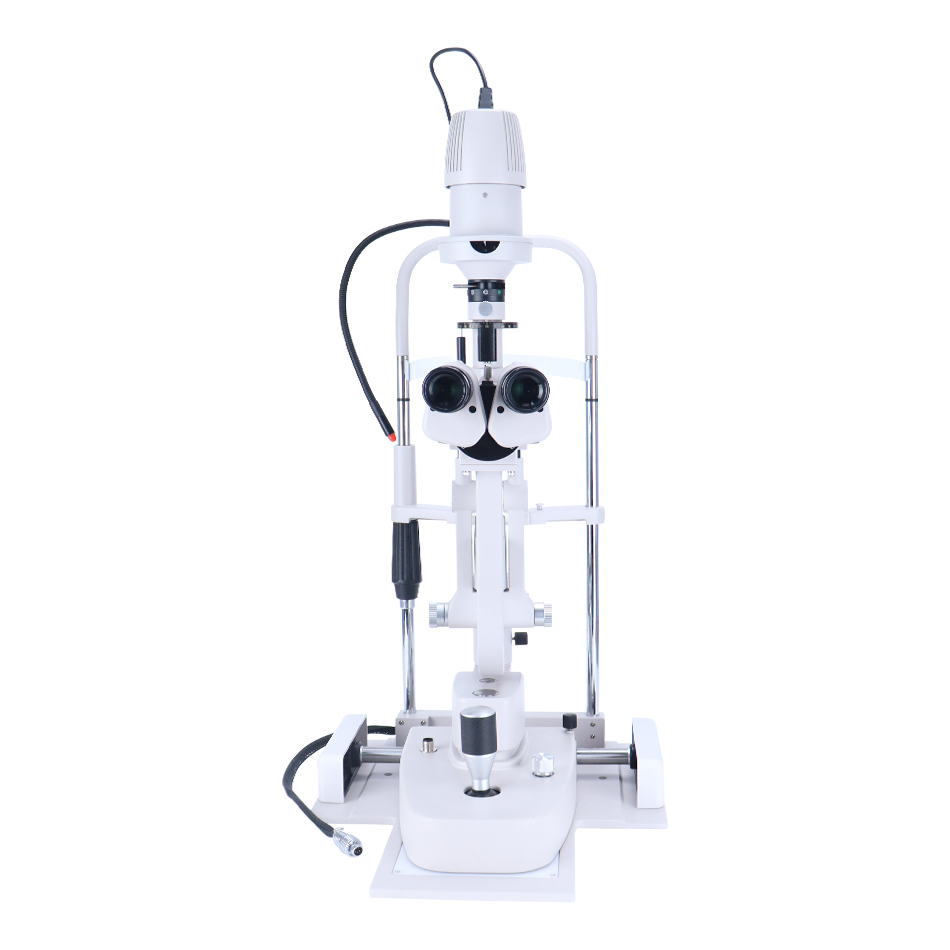

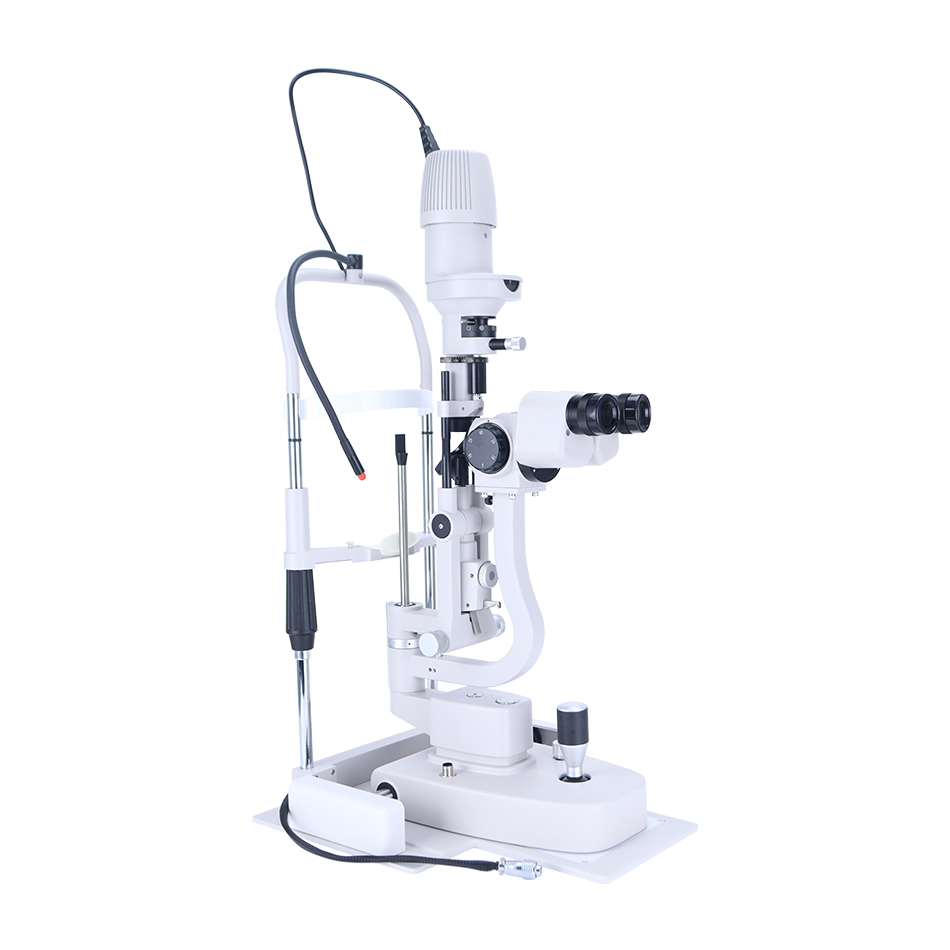

Optical System LS-4
Type: Galilean system, Parallel type, Haag-streit type
Magnification Changer: Rotating drum change
Magnification: 6X 10X 16X 25X 40X
Eyepiece: 12.5X
Field of view: 6x(φ33) 10x(φ22) 16x(φ14) 25x(φ8.5) 40x(φ5.5) mm
Pupil Range: 52 - 82 mm
Diopter: ±7D
llumination
Slit Width: Continuous from 0 to 14 mm
Slit Length: Continuous from 1 to 14 mm
Slit angle: 0° - 180°
Slit Aperture: Continuous from 1 - 14 mm, φ14, 10, 5, 3, 1, 0.2 mm
Slit Vertical Tilt: 5° 10° 15° 20°
Filter: Heat Absorption, Grey, Redfree, Cobalt Blue
Fixation Lamp: Red LED 3.5V
Light Resource: LED
Power
Input Voltage: 100 - 240V 48 - 62Hz
Input Power: 70VA
Dimensions and Weight
Dimensions: 740*640*450 mm
Net Weight: 21kg
Gross Weight: 24kg
