Product Description
Features
1. Outstanding Optic Quality Ensure the Comfortable View.
2.Precision Machining Makes the Smooth and Flexible Movement.
3. Professional & Multi-functional Software With Simple Humanized Human-computer Interface & Easy Operation.
4.Have both image capturing function and video capturing function. Image processing for better Symptoms Diagnose.
5.Backup patient data base easily guarantee data safety.
6.Highest Quality Images Captured Which Impressive Every User.
7.Aspecial designed black cross in right eyepiece which enable to synchronise the image sharpness in eyepiece.
8.This model , you can use your own camera Canon 1500D
（Our price is with software , without camera , without motorized table ,without computer ）
Specifications
| MicroscopeType | Parallel |

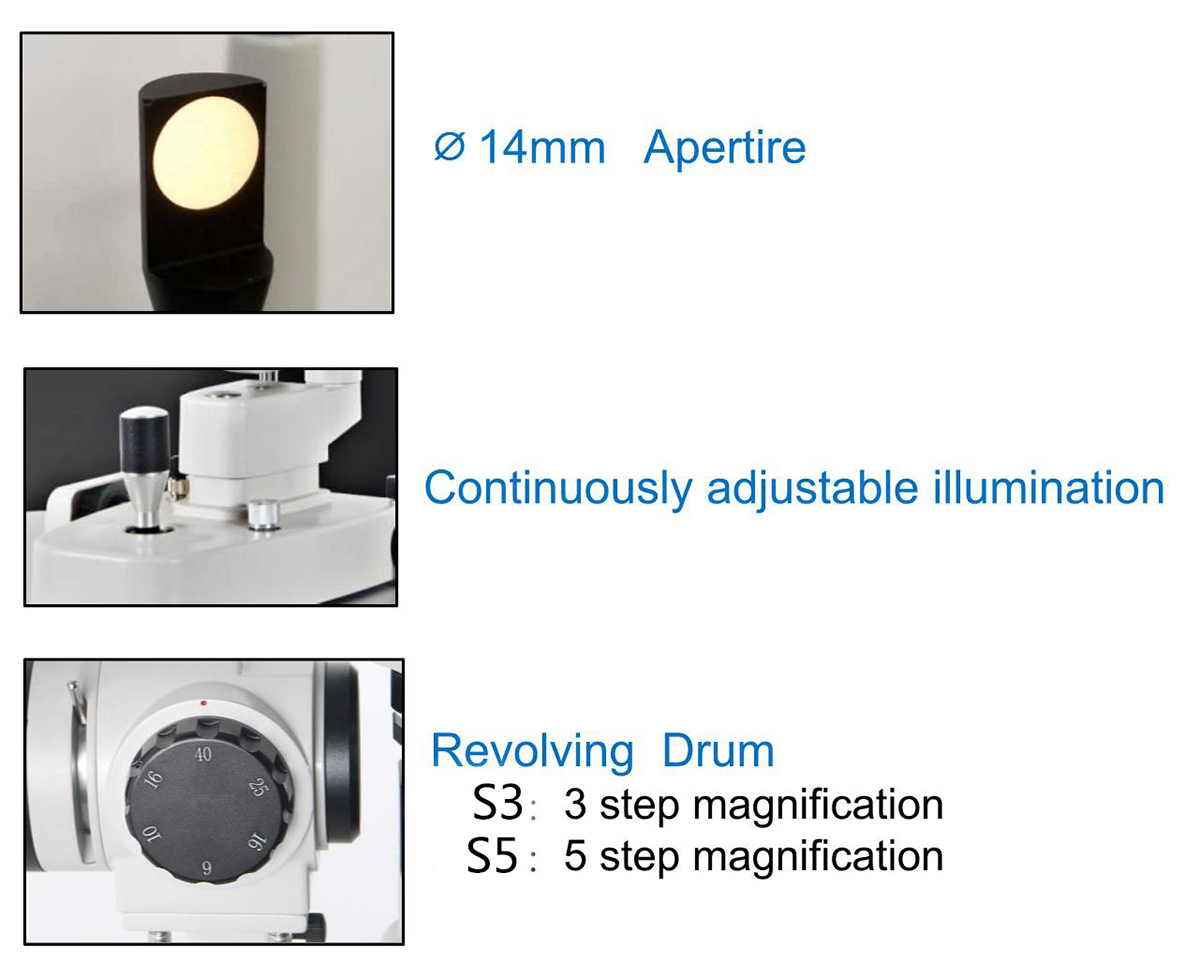

| Magnification changer | Revolving drum |
| Eyepiece | 12.5X |

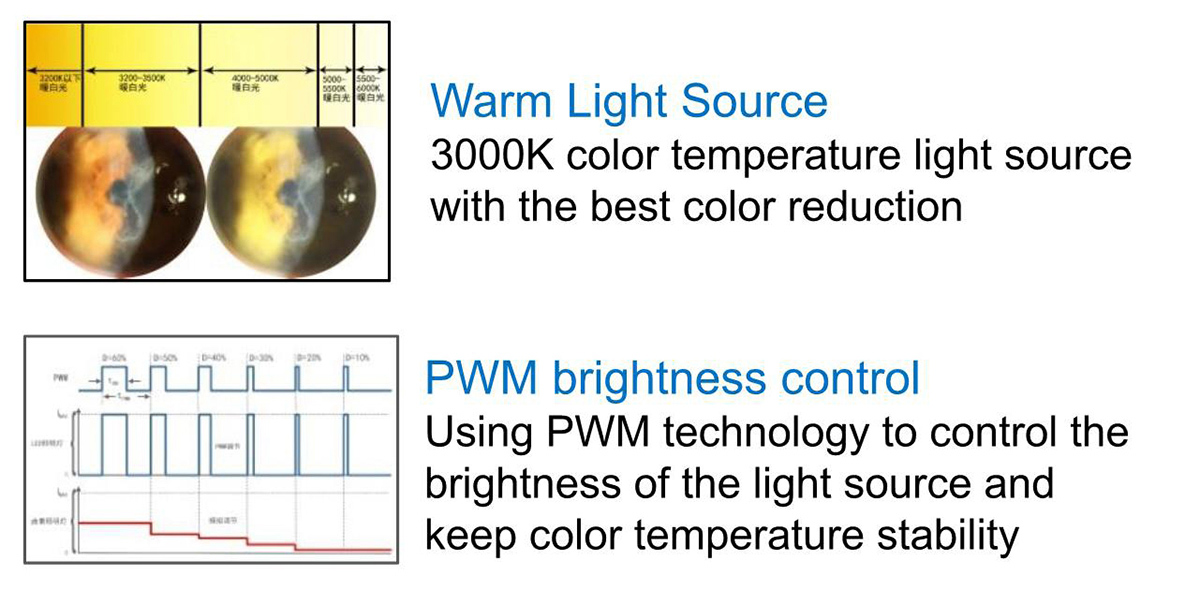

| Illumination Source | Imported LED |
| Max Illumination Intensity | 60000 Lux |
| Total magnification | 6X10X16X25X40X |
| Diameter ofVisionfield | 3723148.75.7mm (23 148.7 optional) |
| Diopteradjustment | -7D~+7D |
| Slitimagewidth | 0mm~14mm continuous |
| Slit image length | 1mm~14mm continuous |
| Diameterof aperture | 14mm 10mm 5mm 3mm 1mm 0.2mm |
| Slit angle | 0~180 continuously rotation |
| Illuminationtilting | 5 10 15 20 totally 4 step |
| Filter | Heat absorption, Grey,red freer(Green), Cobalt blue |
| Illumination | 12V 50WBulb |
| Fixation | Red LED 3.5V |
| Power | Input votage100~240V |
