Features

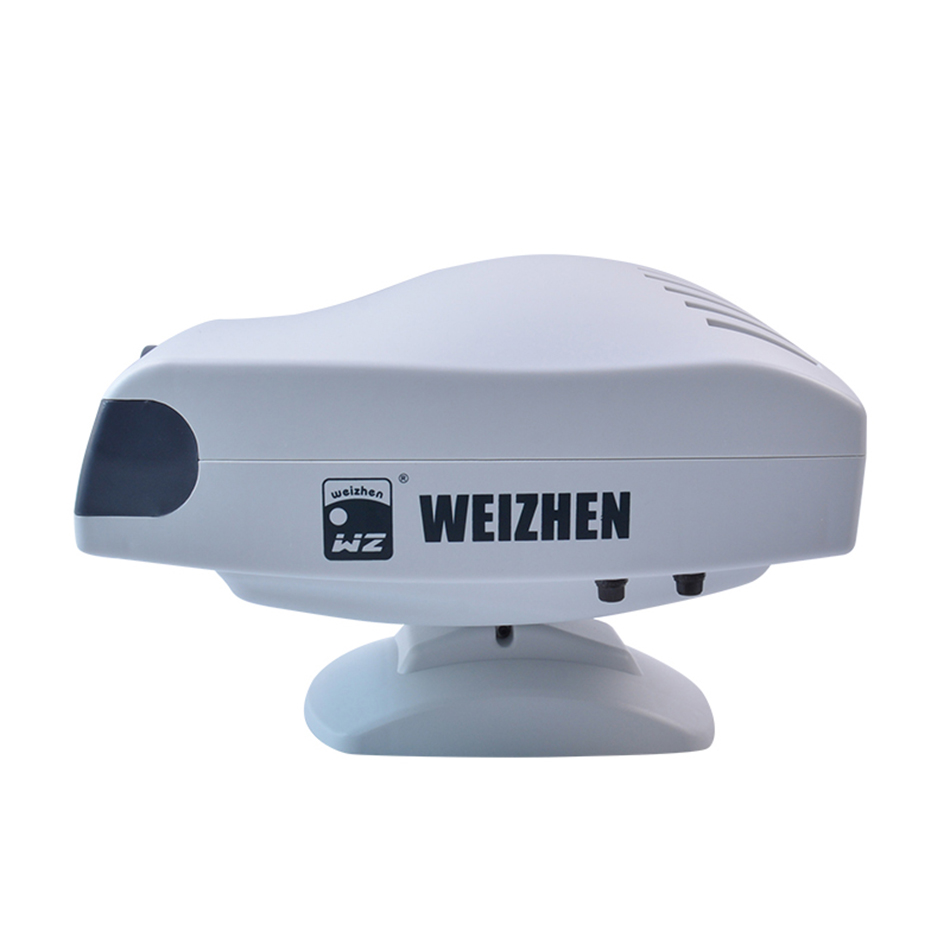

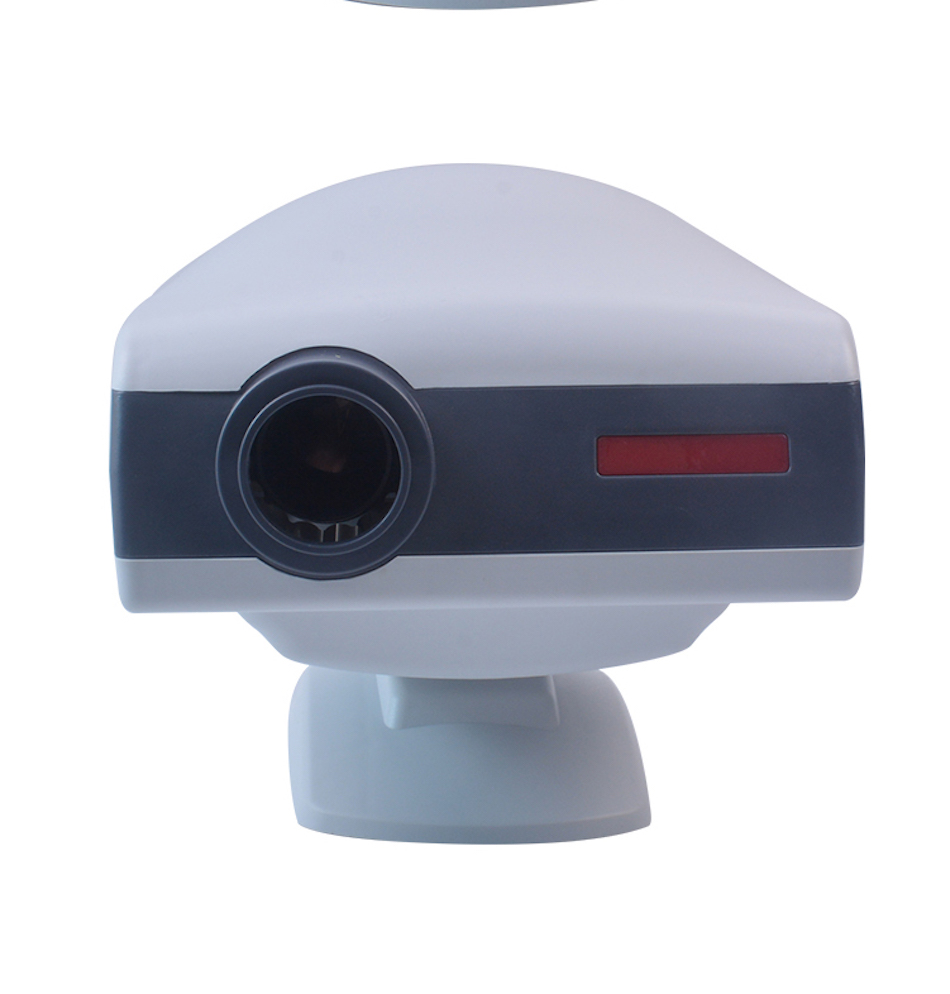

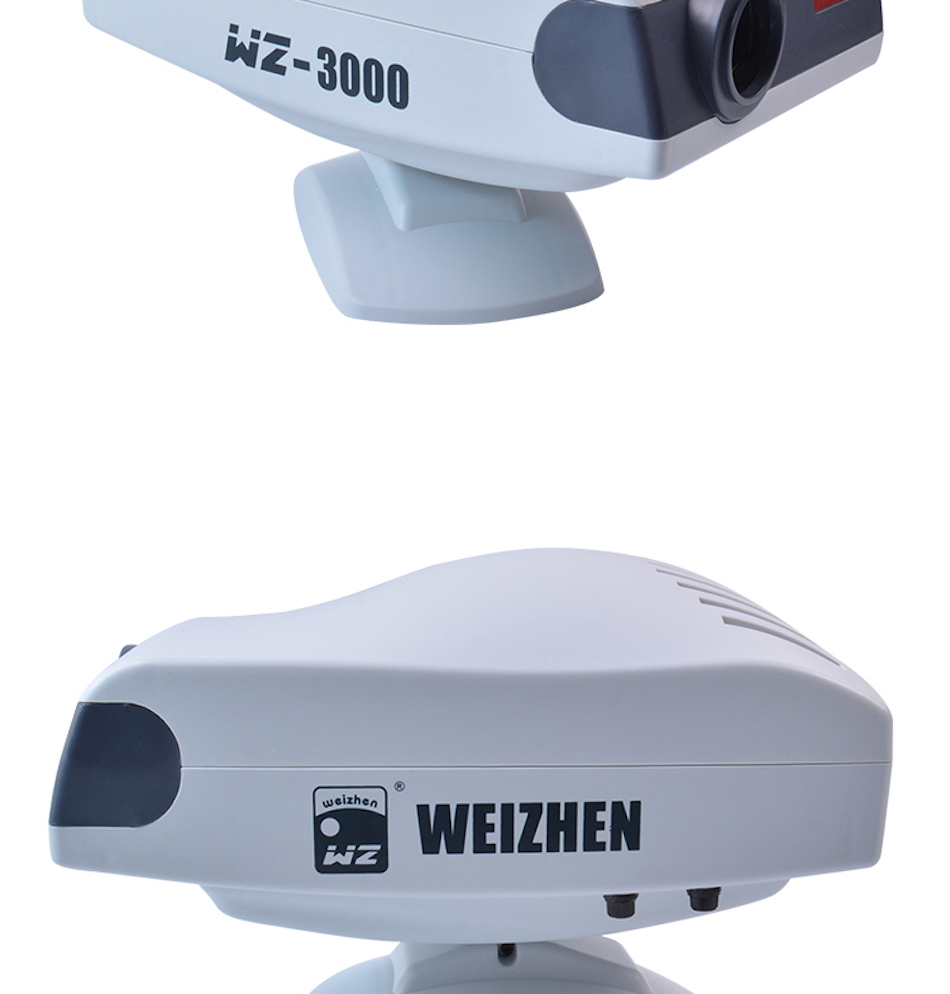

Auto Chart Projector is a precision optical instrument for accurate refraction.

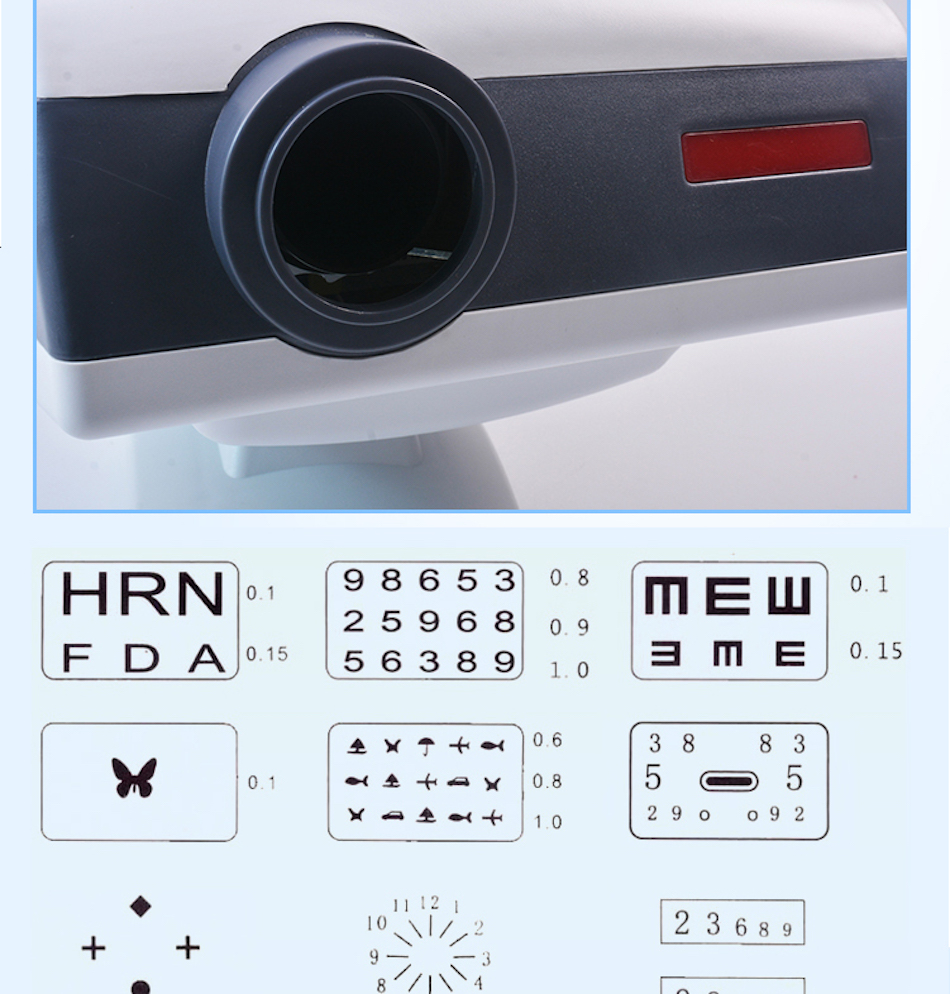

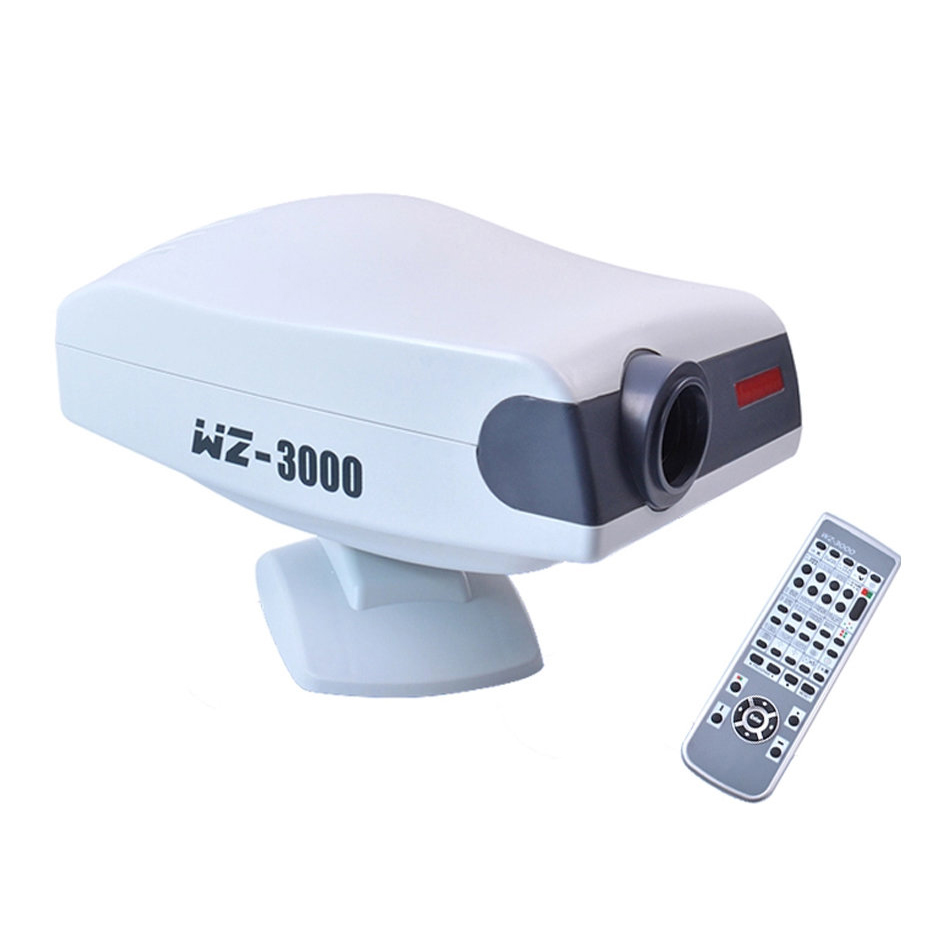

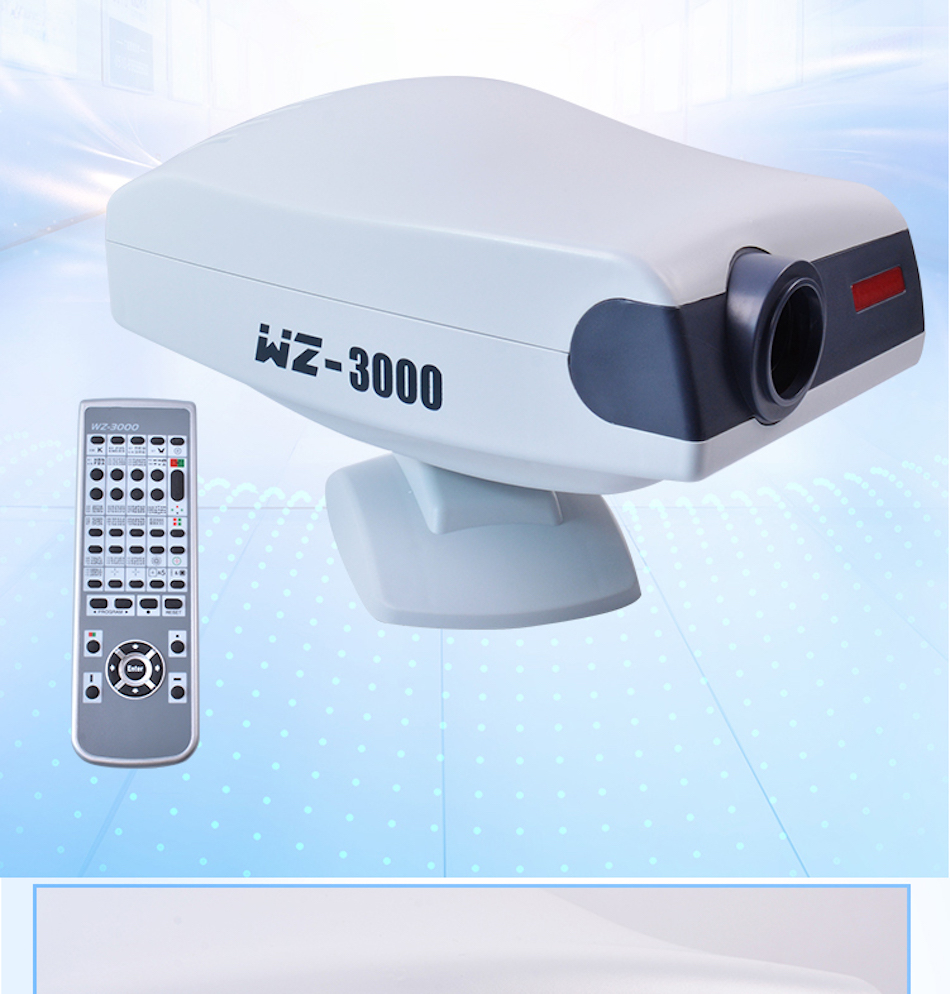

It provides 30 different charts and 35 masks, with programmable remote control.
Duochrome test charts to check single and binocular vision,
and polarized test charts to check binocular vision and ocular muscle imbalance.
Specifications
Projection distance | 1.5m ~ 7m |
Projection magnification | 30 x (at 5m) |
Projection size | 330mm(W) x270mm(H) (at 5m) |
Chart Switching speed | 0.01~0.02S |
Mask Number | 1 open, 5 horizontal lines,8 vertical lines, 21 single letters, 1 red/green |
Mask Switching speed | One mask per 0.01~0.02s |
Program | 2 sets programs, each program contains up to 30 steps |
Lamp | 12V,50W(halogen lamp) 12V,10W(LED) |
Power saving fuction | Will automatically standby in 10 min |

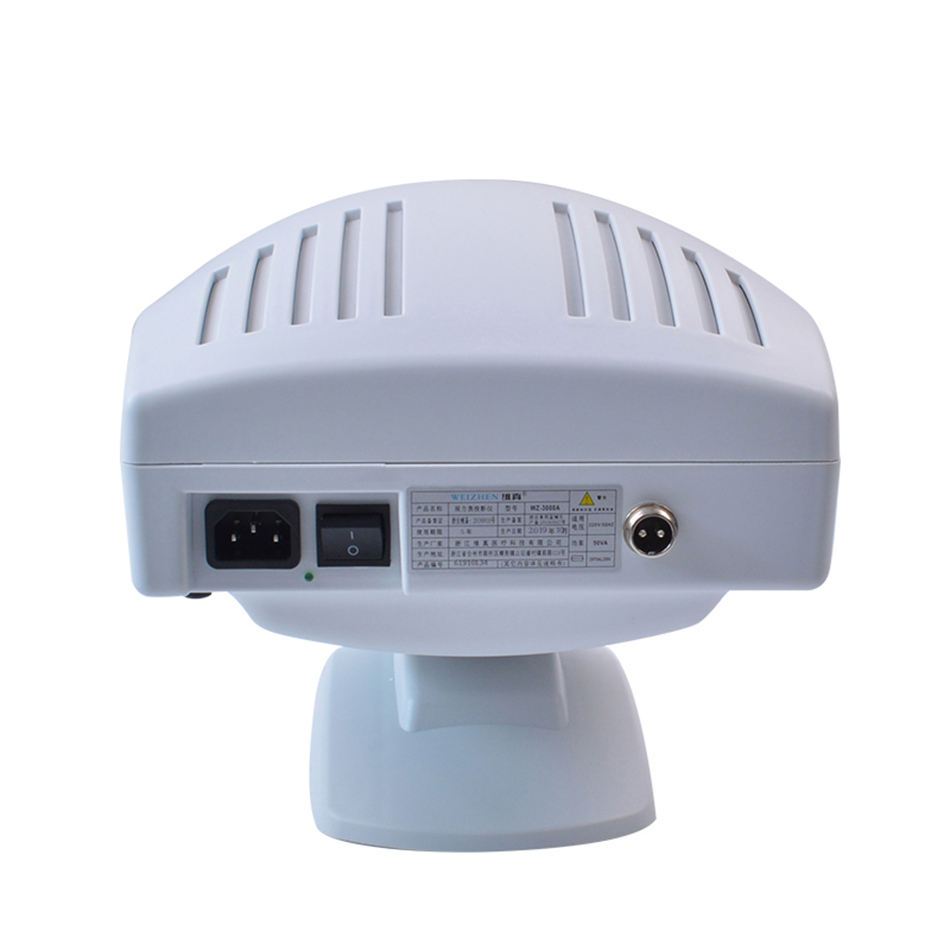

Power source | AC 220V ,50Hz or 110V, 60Hz |
Power consumption | 80W |

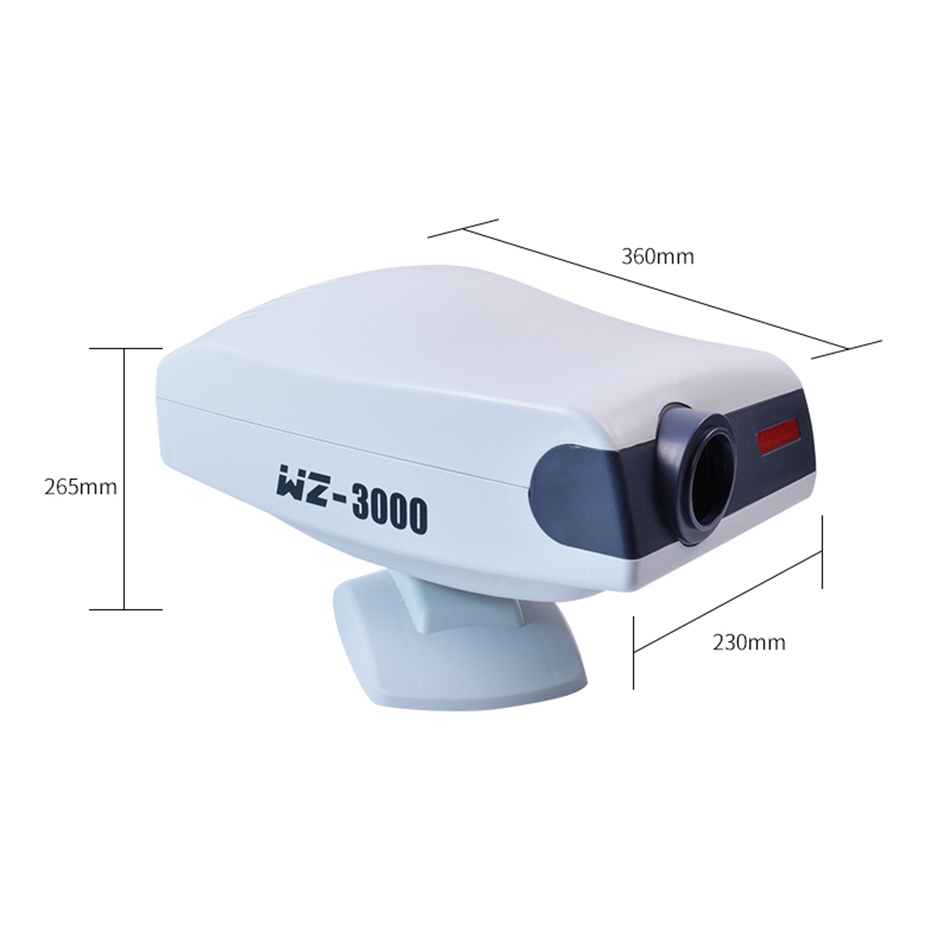

Dimensions | 320mm(L) x 218mm(W) x 240mm(H) |
Net weight | 7.2Kg |

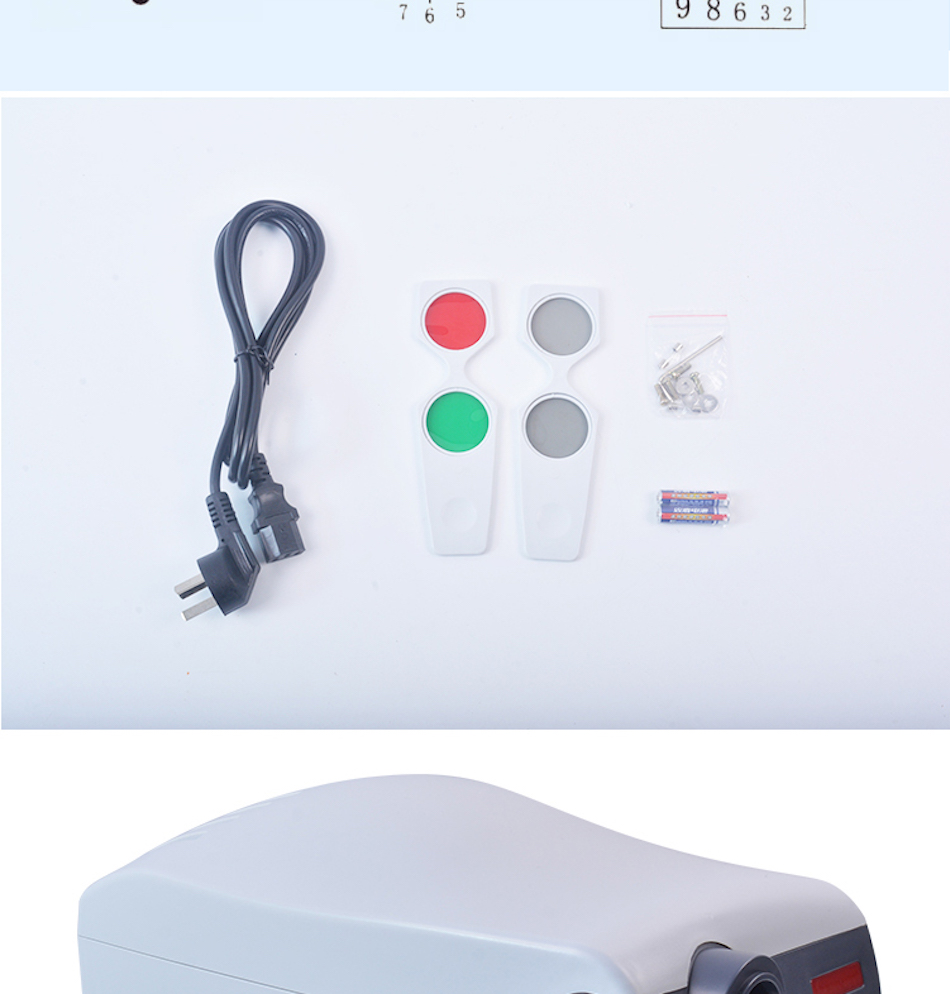

Standard accessories | Remote control, Polarized metal screen, halogen lamp, polarized glasses, fuses(2), batteries(2) |
Optional accessories | Floor stand, wall stand |
