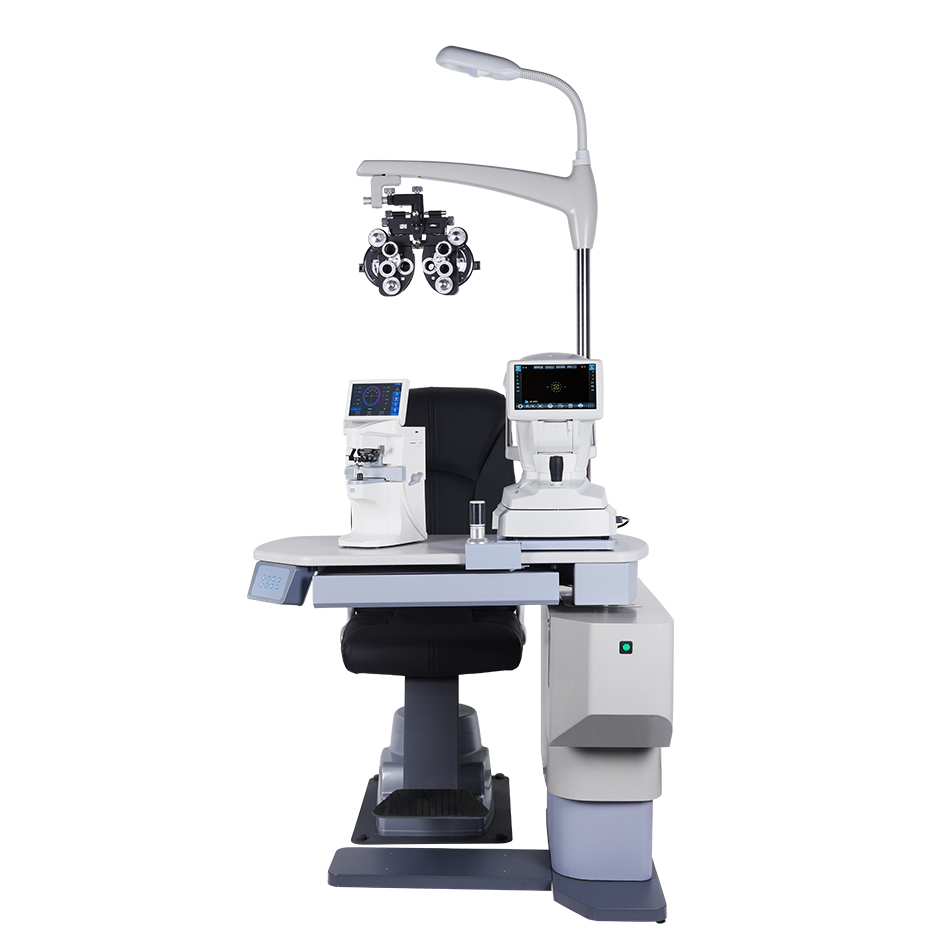

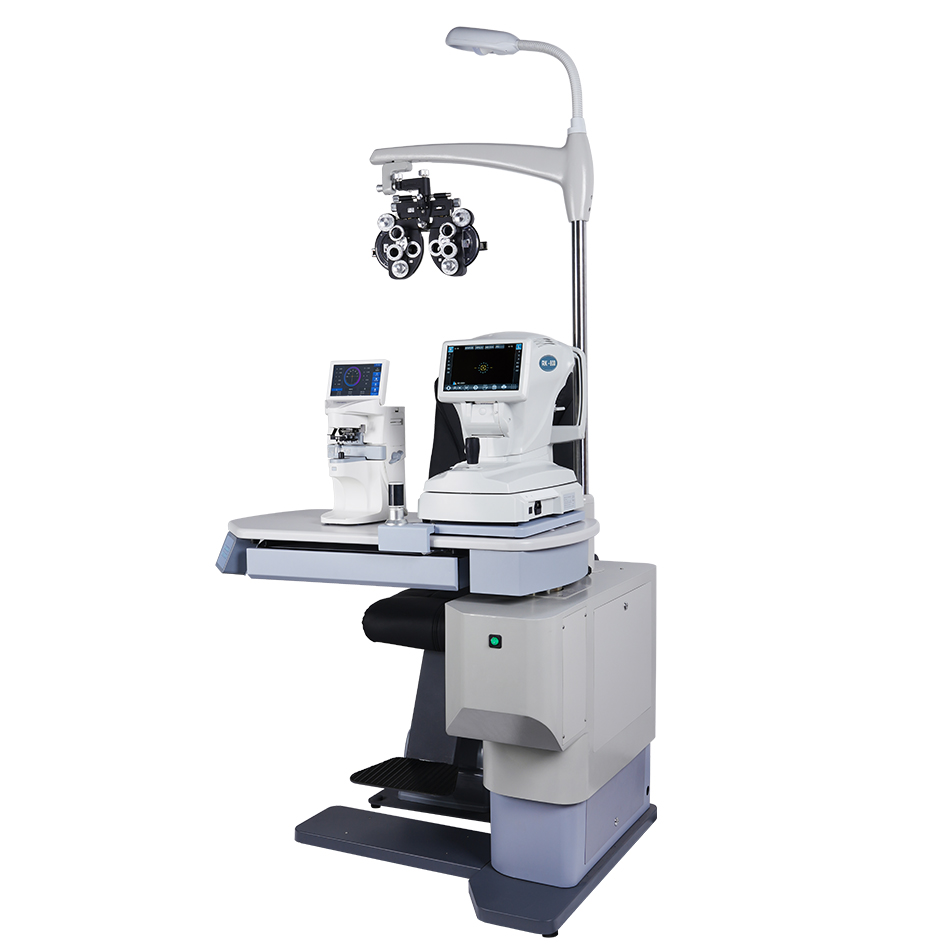

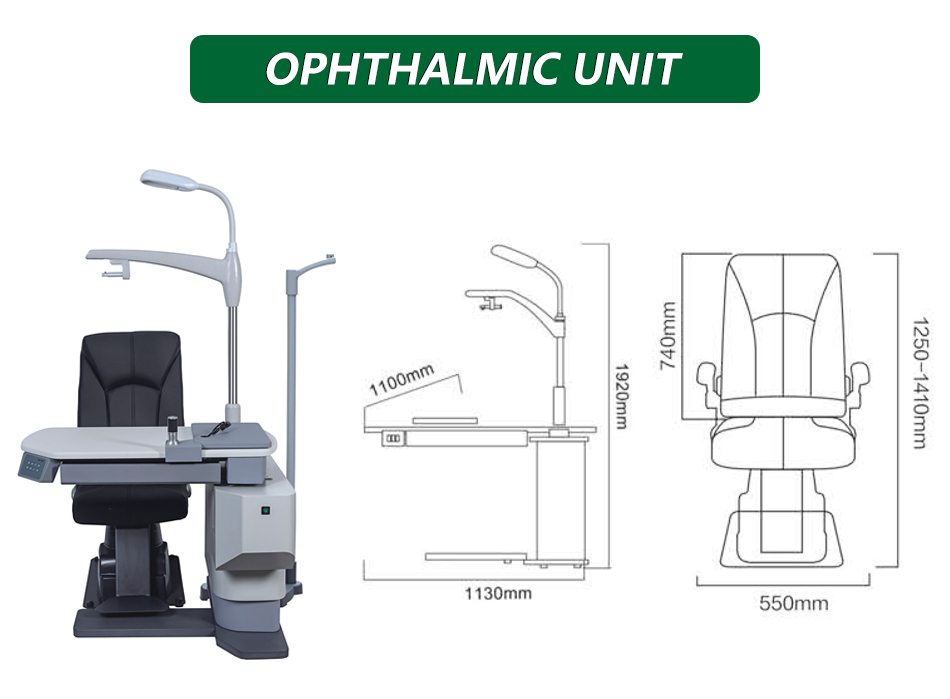

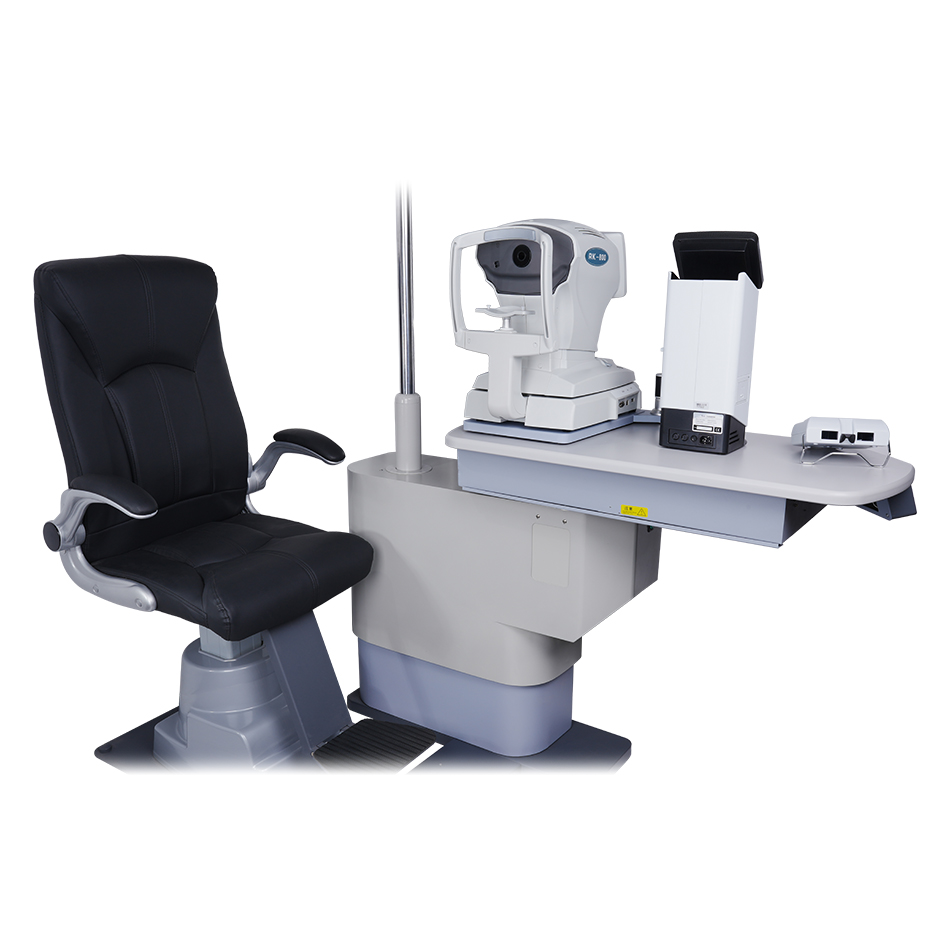

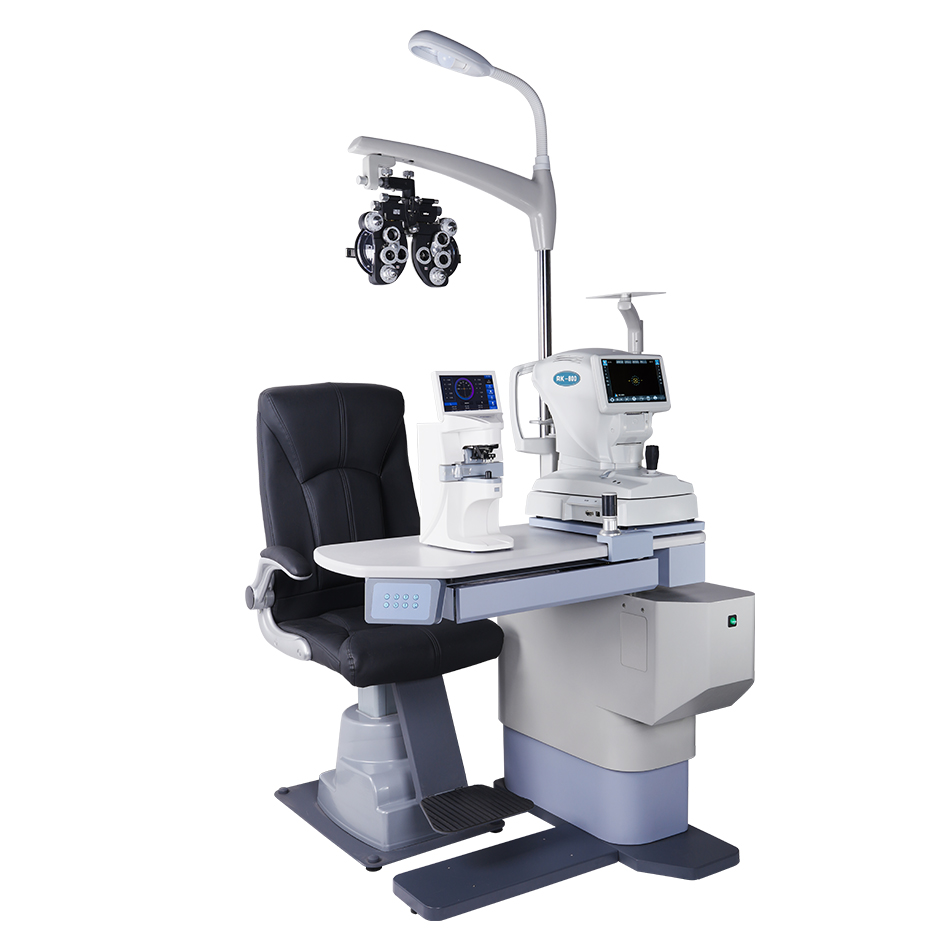

Unit size | 113*110*192cm |
Table size | 100x49cm |
Arm up and down range | 190-210cm |
Tabletop up and down range | 12cm |

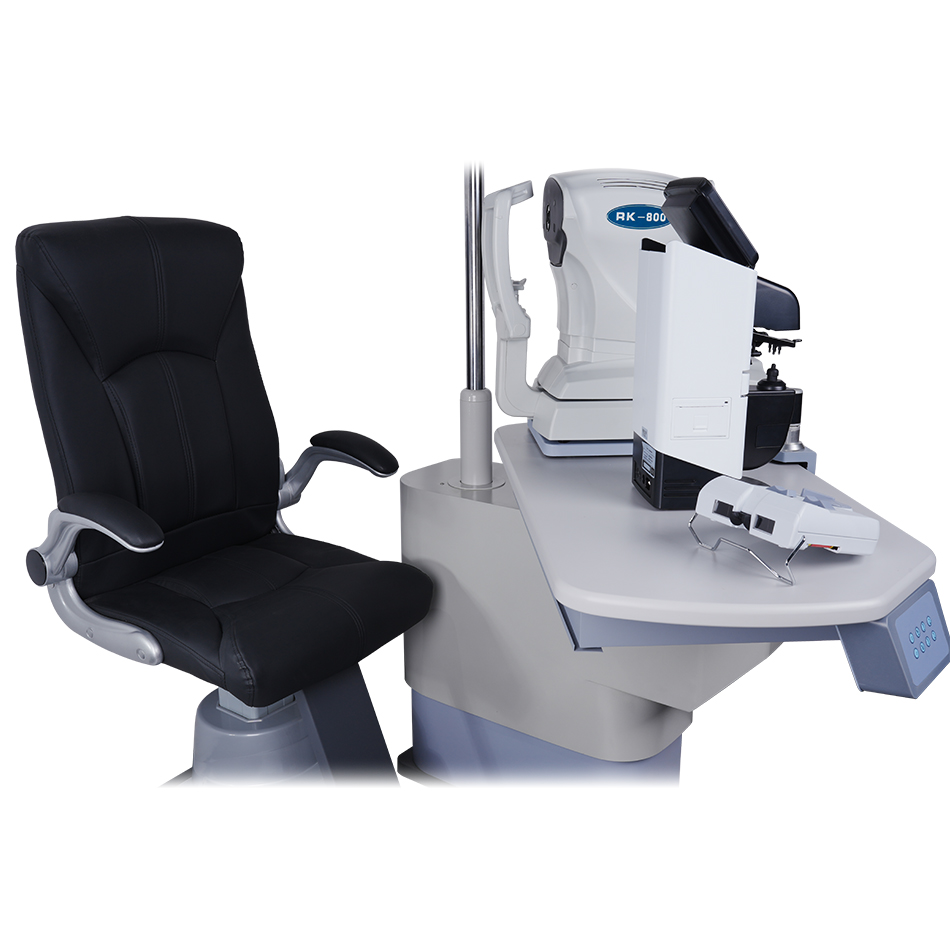

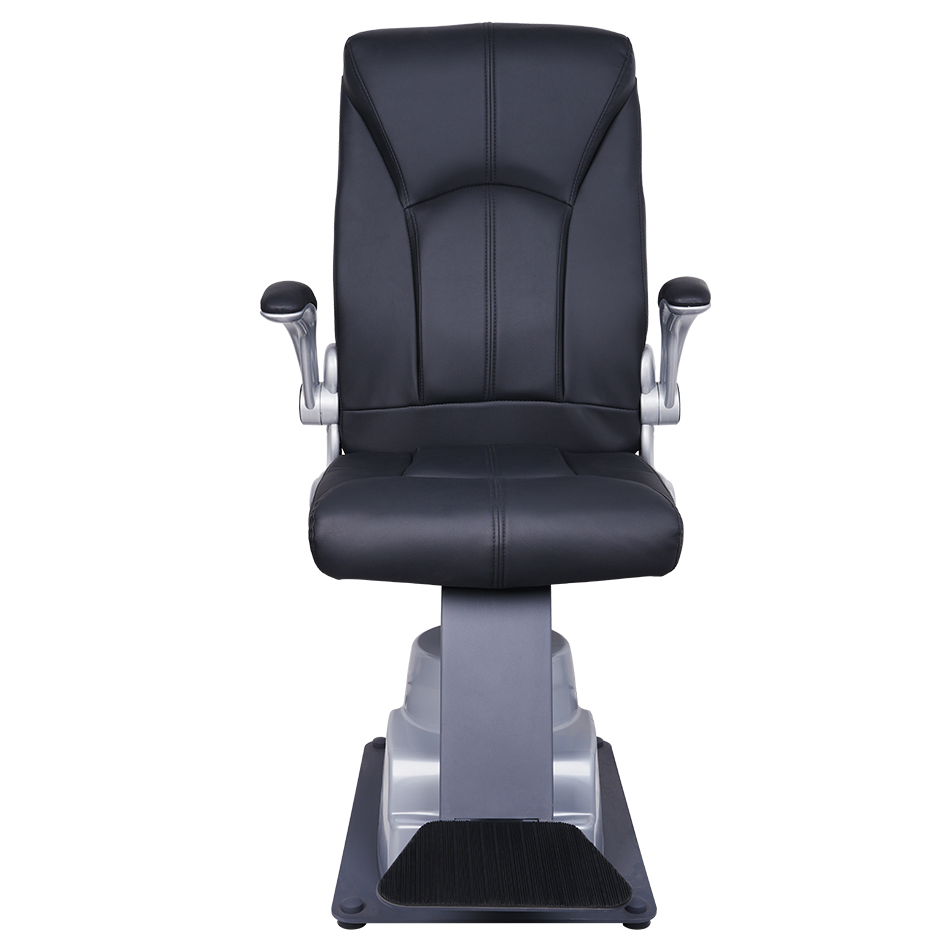

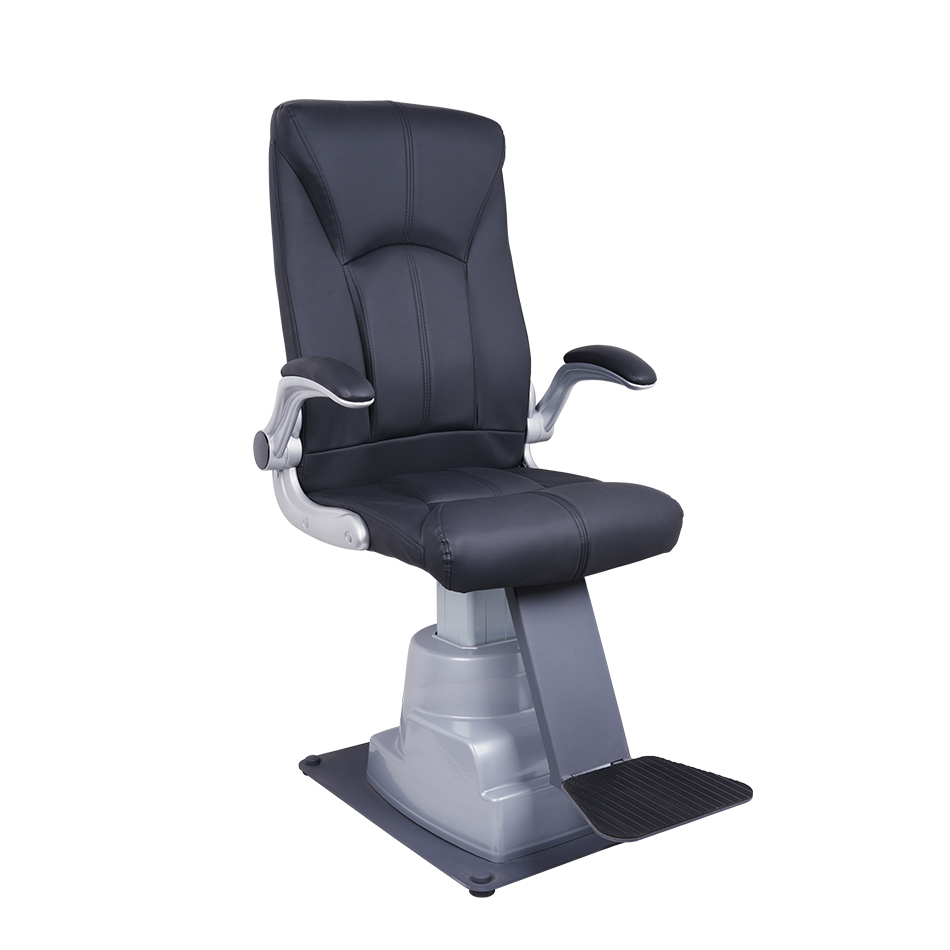

Chair up and down range | 16cm |

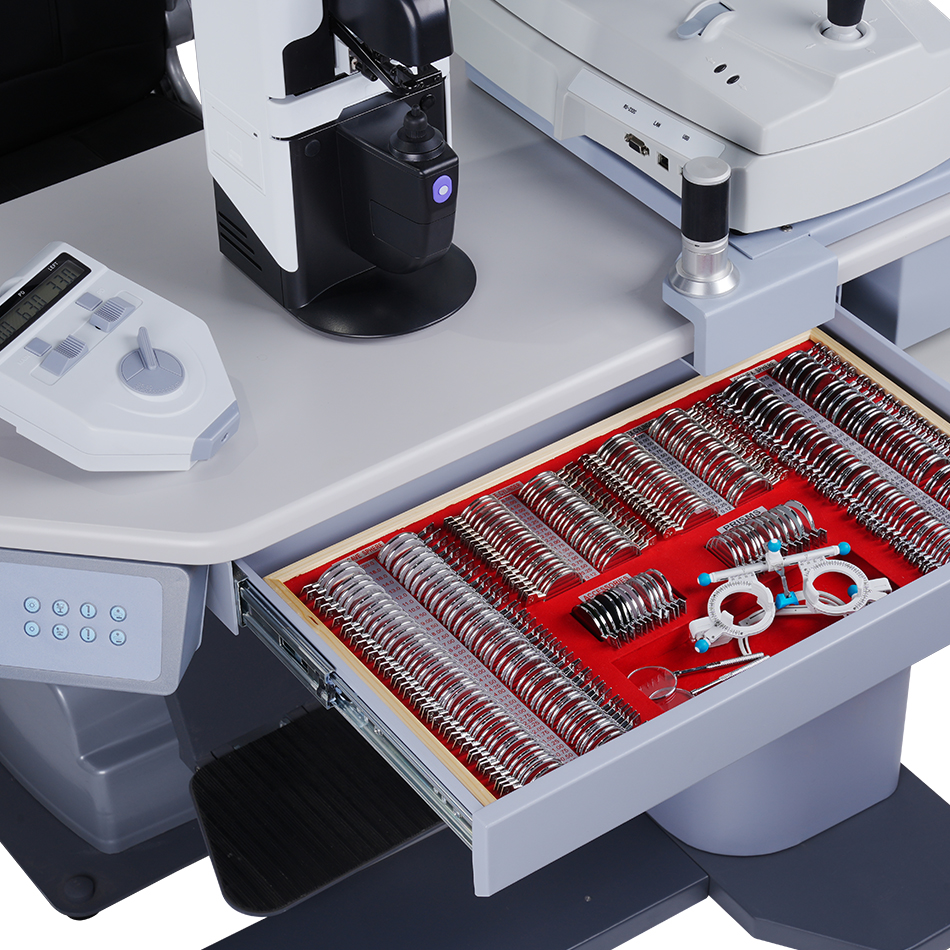

Drawer inner size | 55x35x5.5cm |
Power | 120VA |
Voltage | ~220V50Hz |
Customizable voltage | ~110V/60Hz |
Volume | 1.35m³ |
Weight | 240kg |

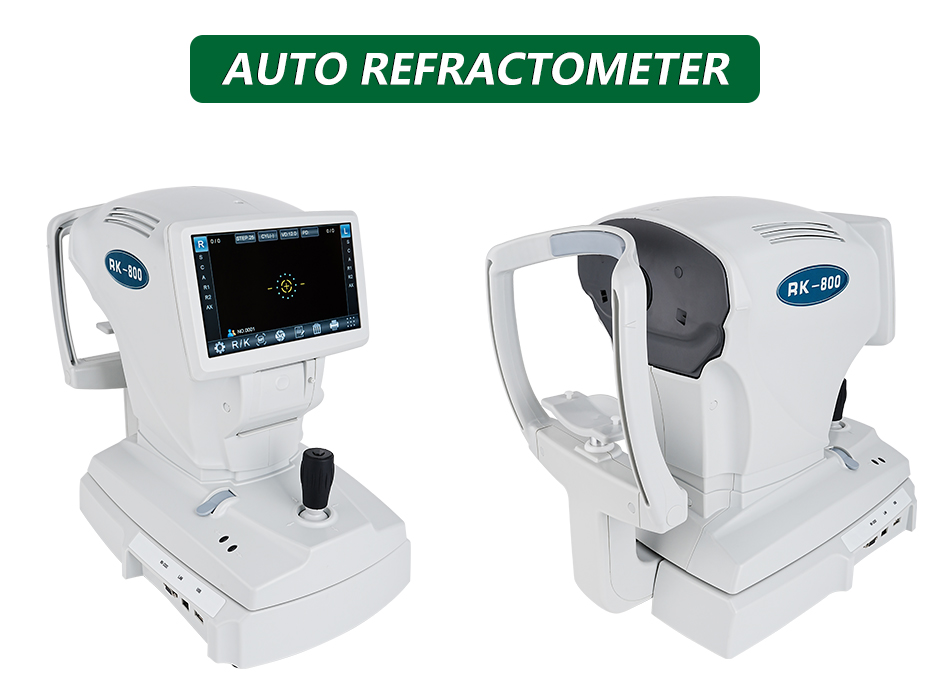

Vertexdistance | 0mm,12mm,13.75mm |
Spherical | -20 to +20D(VD=12) 0.12/0.25D step |
Cylinder | -8 to +8D 0.125D step |
Axis | 0° to 180° (1°step) |
Cylinder form | -,+,± |
Pupil distance | 45 to 88mm,1mm step |
Min Pupil Size | ø2.0mm |
Radius of curvature | 5.0 to 10mm (increment: 0.01mm) |
Corneal power | 33.75 to 67.50D (when corner equivalent refractive index is 1.337)(increment selectable from 0.12, 0.25D) |
Corneal astigmatism | 0.0 to 8.00D (increment selectable from 0.12,0.25D) |
Axis | 1 to 180° (increment:1°) |
Corneal diameter | 2.0 to 14.0mm (increment: 0.1mm) |
Memory of data | 10 measure value for each right and left eye |
Chart | Auto fog |
Thermal printer | |
Power supply | 220V -110V (50/60Hz) |
Dimensions | 469mm*308mm*522mm |
Weight | 15.5kg |

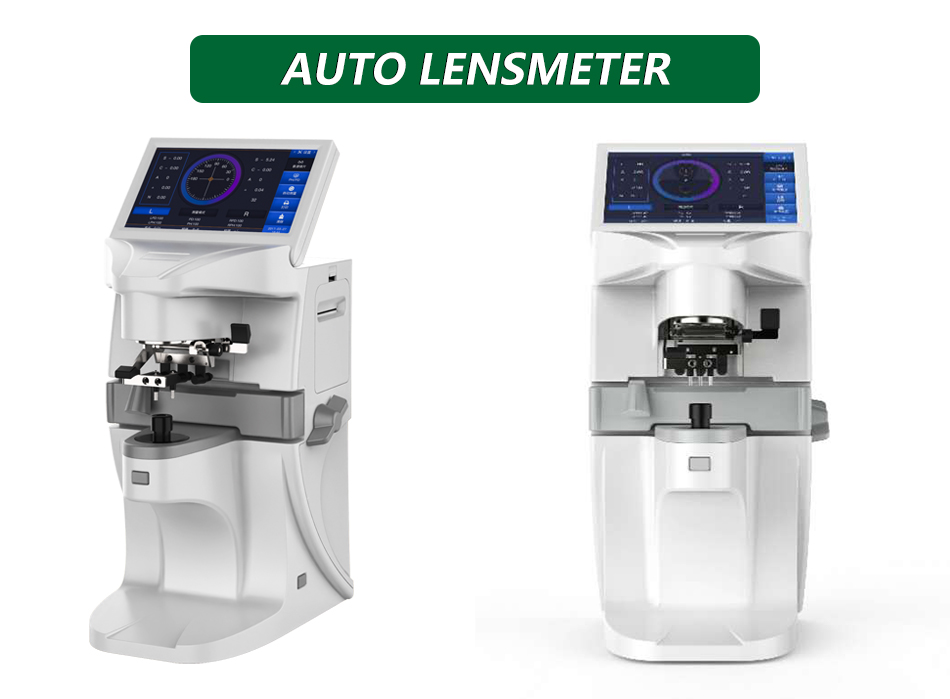

Spherical power (spectacle lens) | -25 m-1~+25 m-1 |
Cylindrical power | -9.99 m-1~+9.99 m-1 |
Progressive ADD power | -9.99 m-1~+9.99 m-1 |
Spherical power (contact lens) | -20 m-1~+20 m-1 |
Vertex power step measurement | 0.01 m-1, 0.06 m-1, 0.12 m-1, 0.25 m-1 |
Cylindrical lens astigmatism axis angle measurement scope | 0°~180° , step 1° |
Prism base angle measurement scope | 0°~360° step 1° |
Prism degree measurement scope | horizontal 0~20, step 0.01, Vertical 0~20, step 0.01 |
Measurable lens diameter | φ10mm~φ100mm |
Measurable lens center thickness | ≤20mm |
Lens PD measurement scope | 40mm~82mm step 0.25mm |
Lens PH differencPH measurement scope | 0mm~50mm , step 0.25mm |
Measurable lens frame leg length | 0mm~160mm |
Measurable anti-uv transmittance rate | 0~100% step 1% |
Main Engine Power Supply | direct current12V,45W |
Screen | 800x480 color screen, full screen touchable |
Printer | thermal printing, printing paper width 57mm |

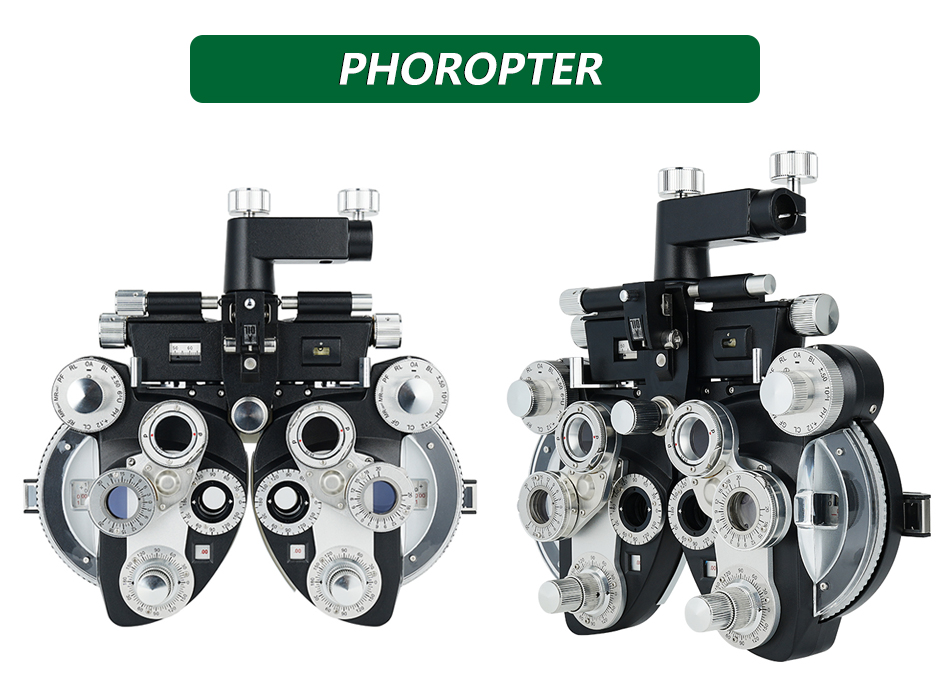

Sphere Power | Range | +16.75 to -19.00 diopters |
Step | 0.25 diopters | |
Range | 0.00 to -6.00 diopters(0.00 to -8.00 diopters with additional lens of -2.00 diopters) | |
Cylinder Power | Step | 0.25 diopters |
Cylinder Axis | 0 to 180°, 5°step | |
Cross Cylinder | ±0.25 diopters | |
Rotary Prisms | 0 to 20, 1 step | |
(O)-Open aperture (two positions) | ||
(R)-Retinoscopic lens, +1.50D | ||
(P)-Polarizing lens 45-left eye, 135-right eye | ||
(WMV) or (RMV)-Maddox rod, vertical white-left eye red-right | ||
(WMV) or (RMV)-Maddox rod, horizontal white-left eye red-right | ||
Auxiliary Lens Dial | (RL)-Red lens | |
(+.12)-+0.12D sphere | ||
(PH)-Pin hole | ||
(10 L) or (6 U)-10 base-in-left eye | ||
6 base-up-right eye | ||
(Dissociating prisms)(±.50)-±0.50 fixed cross cylinder | ||
(OC)-Occluder | ||
PD Adjustment | 48~75MM, 1MM steps | |
Standard Accessory Lenses | wo-.12D and -2.00 cylinder lenses, two plano lenses for sealing front opening | |
Standard Accessories | 1 near point card with holder and reading rod, dust cover, face shield, accessory case for lenses | |
Dimensions | 400*350*160MM | |
Net Weight | 4.38 KGS | |

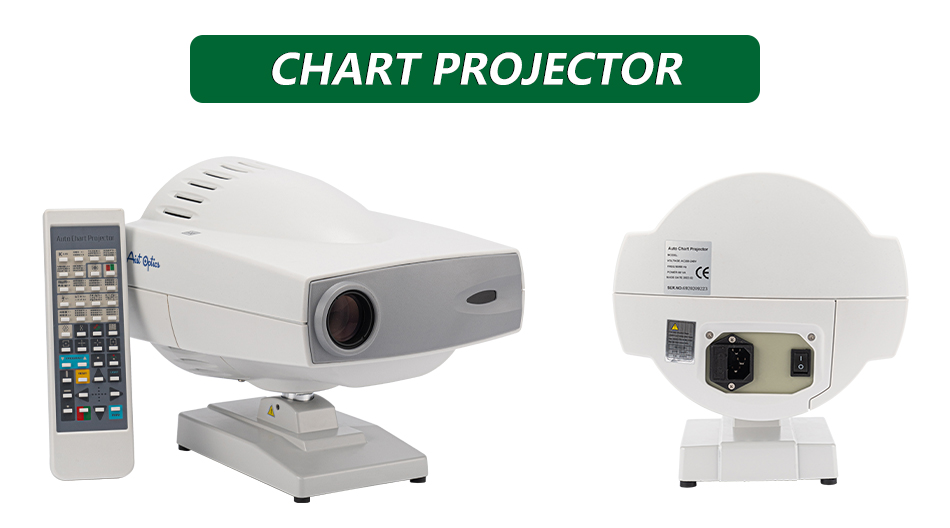

Model | ACP-1800A/B/C | ACP-1800LA/LB/LC |
Projection Distance | 1.5m~6m | |
Projection Magnification | 30x (at 5m) | |
Projection Size | 330mm (w) x 270mm (H) (at 5m) | |
Chart | 30 different pattern | |
Speed of chart conversion | One chart per 0.03s | |
Mask | 1 open, 5 horizontal different lines, 8 vertical lines, 21 single letters, 1 red/green | |
Speed of mask conversion | One mask per 0.03s | |
Program | 2 sets programs, each program contains up to 30 steps | |
Light source | 12V, 50W Halogen Lamp | LED lamp |
Auto-off function | After 10 minutes idle time | |
Power source | AC 220V, 50HZ 0r 110V, 60Hz | |
Power consumption | 80W | 40W |
Accessories | Remote control, polarized metal screen, halogen lamp, polarized glasses, fuses (2), batteries (2) | Roommate control, Polarized metal screen, polarized glasses, fuses (2), batteries |
