TR-700A Ophthalmic Table and Chair unit
Quantity:
-
+
Add To Cart
Get Price
Chat on WhatsApp:
Product Description
TR-700A Ophthalmic Unit
Specifications：
| TR-700A | |||

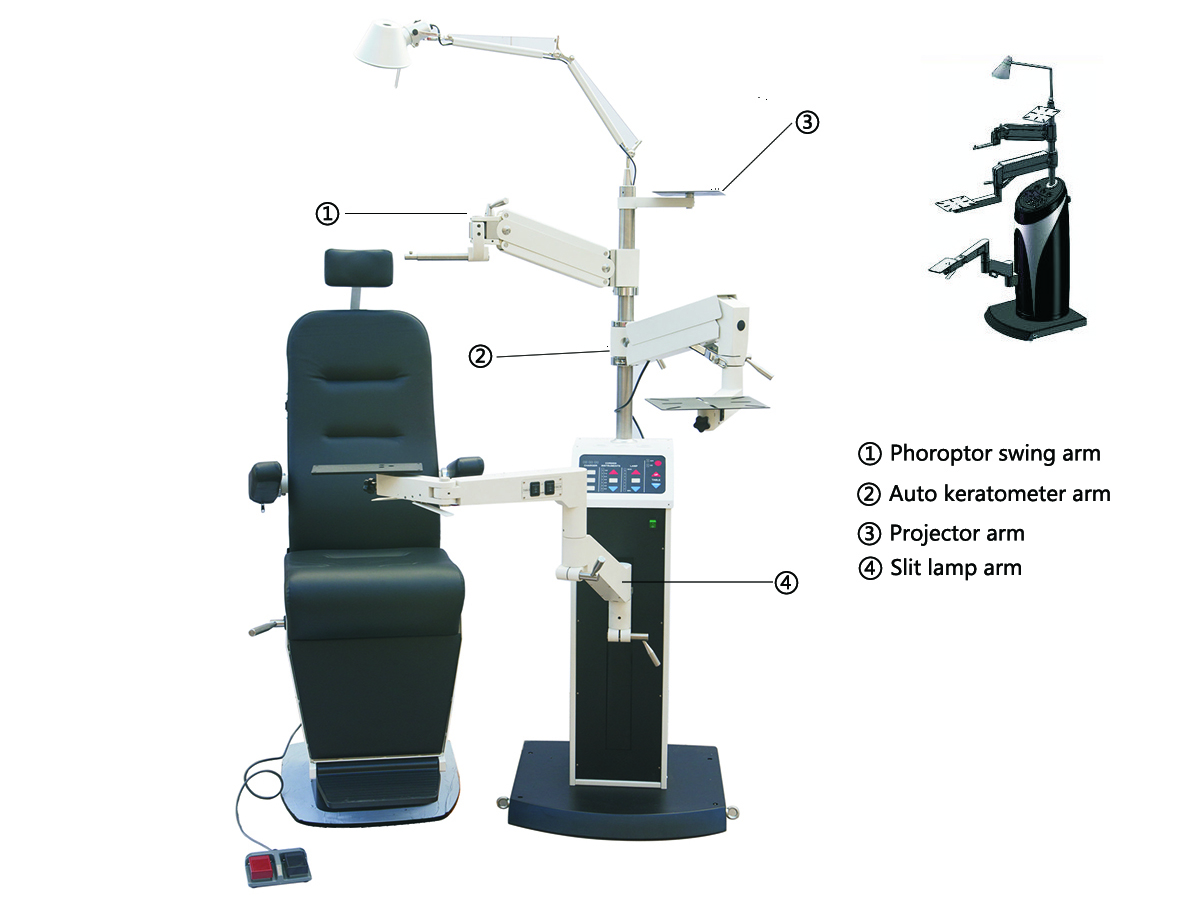

| Mechanical Parameters | 1.Phoroptor swing arm | Swing angle (up and down) | ±30° |
| Rotary arm: rotation angle | 0°-300° | ||
| Up and down moving range | 900mm~1500mm | ||
| Max load | 30Kgs | ||
| 2.Auto keratometer arm | Swing angle (up and down) | ±40° | |
| The first rotary arm rotates at an Angle | 360° | ||
| The second rotary arm rotates at an Angle | 0°-300° | ||
| The tray can be 360° rotation | |||
| Up and down moving range | 780mm~1380mm | ||
| Max load | 30Kgs | ||
| 3.Projector arm | Angle of rotation for rotary arm | 360° | |
| The tray can be 360° rotation | |||
| Up and down moving range | 1030mm~ 1530mm | ||
| Max load | 10Kgs | ||
| 4.Slit lamp arm | Table size | 350mm x 200mm x25mm (Can be customized, maximum size is 700mmx 400mm x 40mm) | |
| Max load | 50Kgs | ||
| Table movement range | within a semicircle with a radius of 824mm | ||
| Height adjustment range | 716mm ~1016mm | ||
| Table rotational angle | The first rotary arm rotates at an Angle 0°- 180°; | ||
| The second rotary arm rotates at an Angle 0°- 360°; | |||
| The third rotary arm rotates at an Angle 0°- 180° | |||
| Table-board rotational angle | 360° | ||
| 5.Seat parameter | Lifting range | 568~708mm | |
| Headrest adjusting range | 250mm | ||
| Seat rotation angle | 0°-270° | ||
| Footrest height from ground | minimum 88mm | ||
| Backrest adjusting angle | 80°-180° | ||
| Max. load | 150Kgs | ||
| Electrical Parameters | 1.In voltage | 100-120V AC 50Hz/60Hz, 200-240V AC 50Hz/60Hz | |
| 2.Output voltage | 100-120V AC 50Hz/60Hz, 200-240V AC 50Hz/60Hz; | ||
| 2.5V 3.5V 4.5V 5.5V 6.5V 7.5V 12V AC | |||
| 3.Charging voltage | 5V DC | ||
| 4.Engine power | 28V 1.5A DC | ||
| 5.Light | 5/16W 24V DC | ||
| 6.Fuse | 5A 130/250V AC | ||
| 7.No load power | 1W | ||
| 8.Pressure test | 2KV | ||
| 9.Working mode | S1 | ||
| 10.Main wire | 10A 120V/250V | ||
| 11.Working temperature | -10℃~ 40℃ | ||
| 12.Relative humidity | less than 90% | ||
| Installation Dimension | Figure size | 1884mm*1316mm*1663mm(No contain table top or lighting) | |
| Weight | 295kgs | ||
