1. Video chat to check our factory and products;
2. Free online technical support and training;
3. Free online installation support;
4. 1-3 Years quality warranty;
5. Lifetime after sales support.
Features

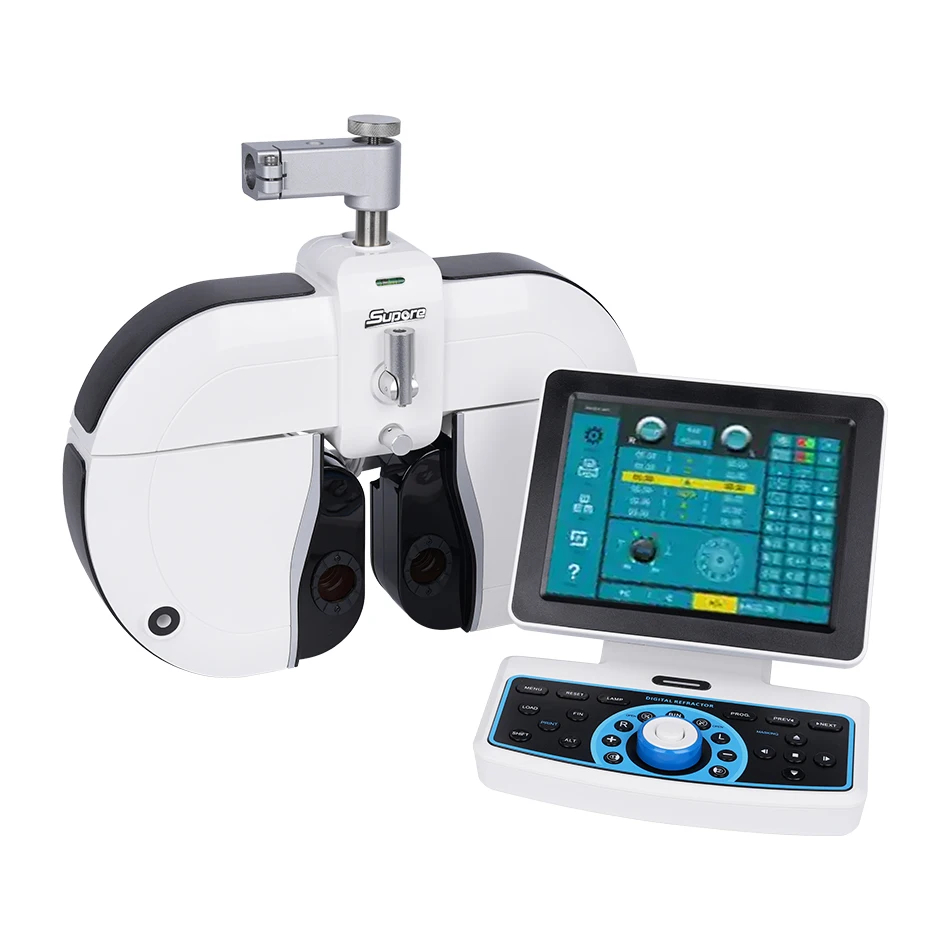

1.The 9.7 inch touch screen
2.Easy to update the software
3.The 180°rotating screen provides the direct communication with customers
4.Various near visual and facilitating icons
5.Abundant online functions
6.Elegant With exquisite workmanship
7.True Color touch screen
Sphere | -29.00~+26.75 D(step:0. 12D/0.25D/0.5D/1D/2D/3D) |
Cylinder | 0.00~8.75D (step:0.25D/0.5D/1D/2D/3D) |
Cylinder axis | 0~180degree(step : 1/5/15/30/45degree) |
PD: Far | 48~80mm Near : 45~75mm (step:0.5/1 .0mm) |
Working distance | 35~70cm (step: 5 cm) |
Prism | 0~20(step 0.1/0.2/0.50/1/2) |
Jackson cross cylinder | Jackson cross cylinder 0.25D Jackson crossclinder 0.50D |
Dual cross cylinder | (separationprism) |
Ophthalmoscope | +1.5D,+2.0D( measuring distance 67cm, 50cm) |
Size and weight | |
Body of main engine: | 362(W) x 83(D) x 2(9)mm, 3.5kg |
Keyboard | 215(W)x 230(D)x 226(H)mm , 1.5kg |

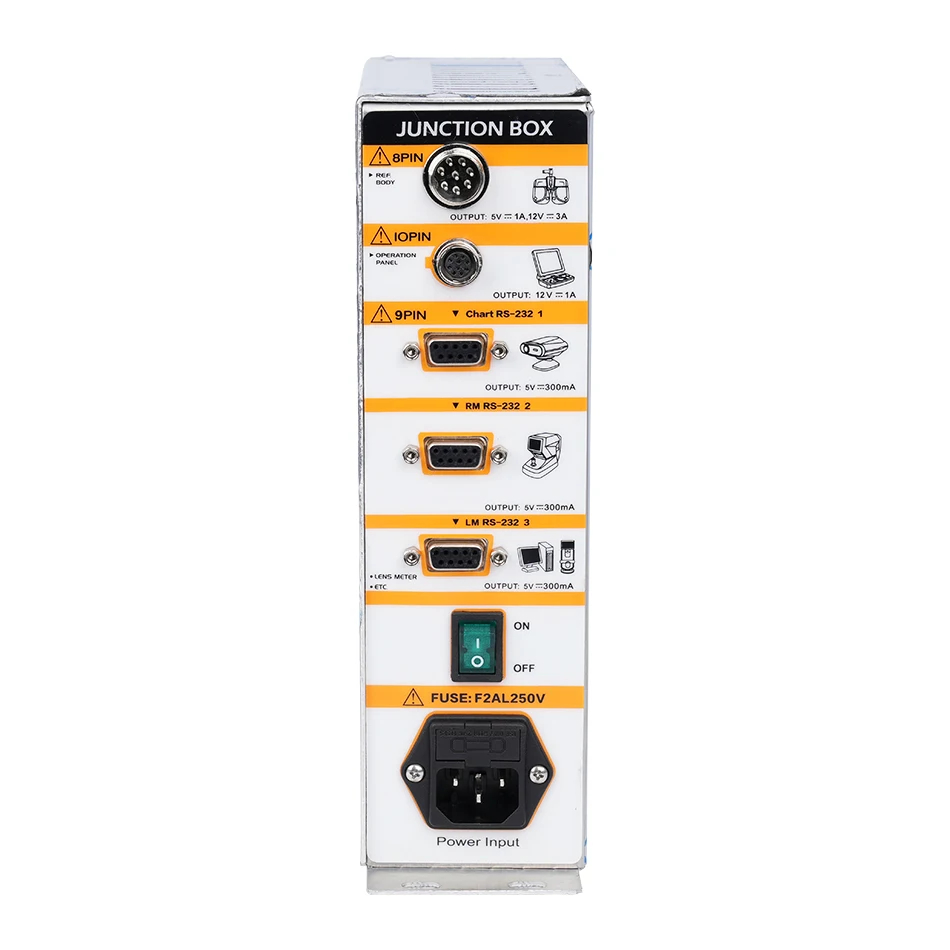

Junction box | 266(W) x 72(D) x 240(H)mm, 1.3kg |
Voltage | AC 100~240V, 50/60Hz |
Power | 90VA |
Auxiliary lens | |
Pinhole lens | 1mm |
Maddox | Right eye (horizon),left eye (vertical) |
Red and green lensRight eye(red) , left eye (green) | |
Polaroid | Right eye(135degree,45degree), left eye (45degree,135degree) |
Separation prism | Right eye(6,BU), Left eye(10,Bl) |
Solid suprachiasmatic cylinder | Jackson cross cylinder +-0.50D |
Axis fixation | 90Degree |
Visual degree | 32Degree |
