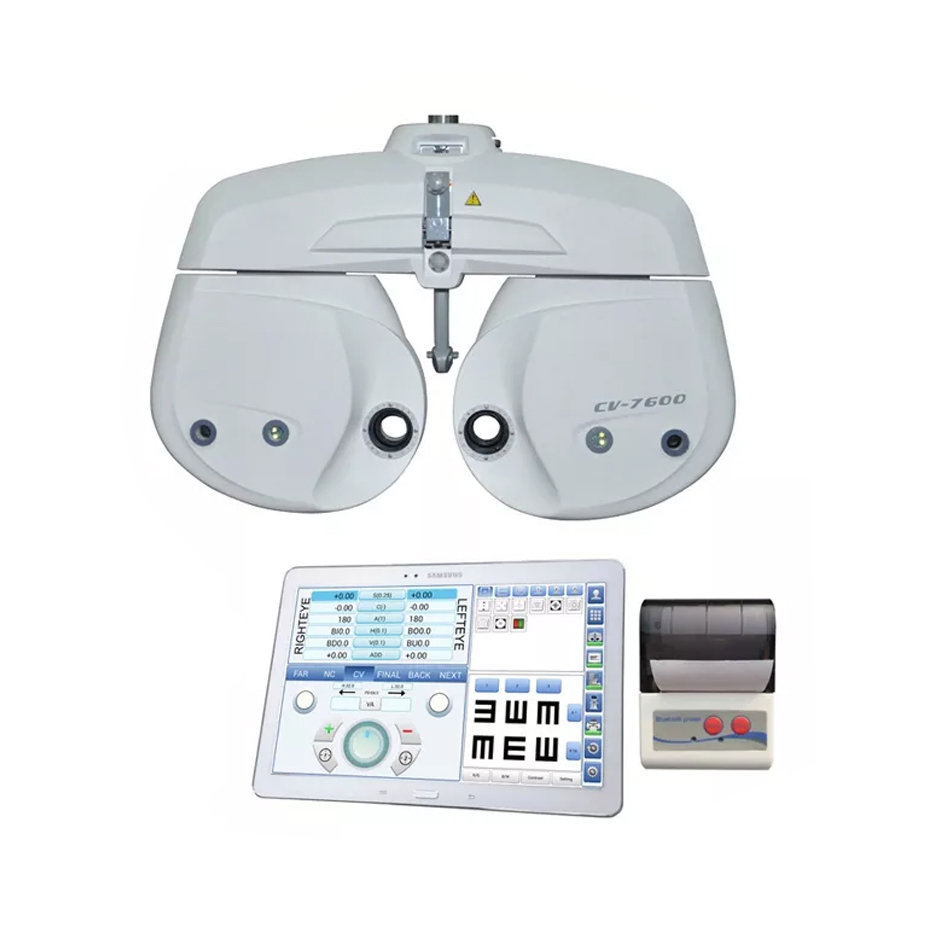

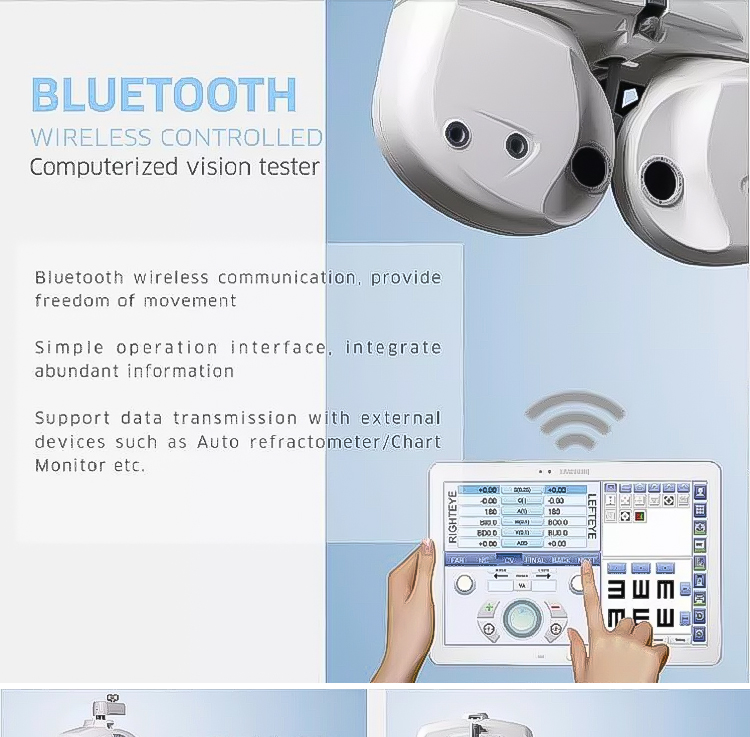

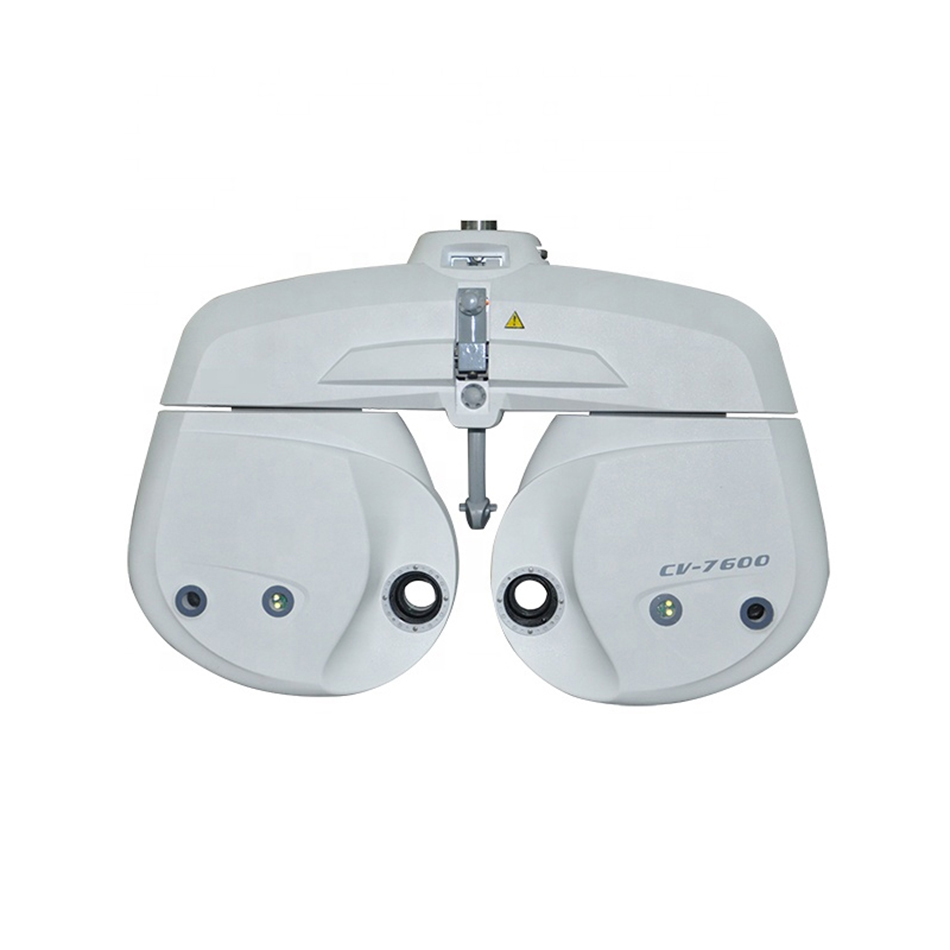

CV-7600 Auto Phoropter an automatic vision tester with reomote bluetooth and wifi control from a tablet. Testing data of CV-7600 Auto Phoropter can be exported to other devices for further use. The CV-7600 Automatic Vision Tester is easy to operate.

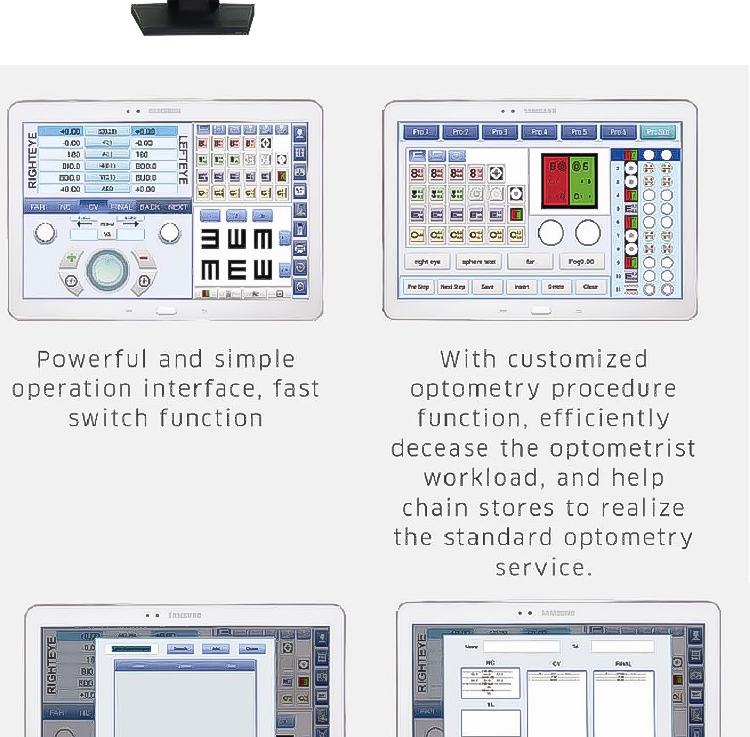

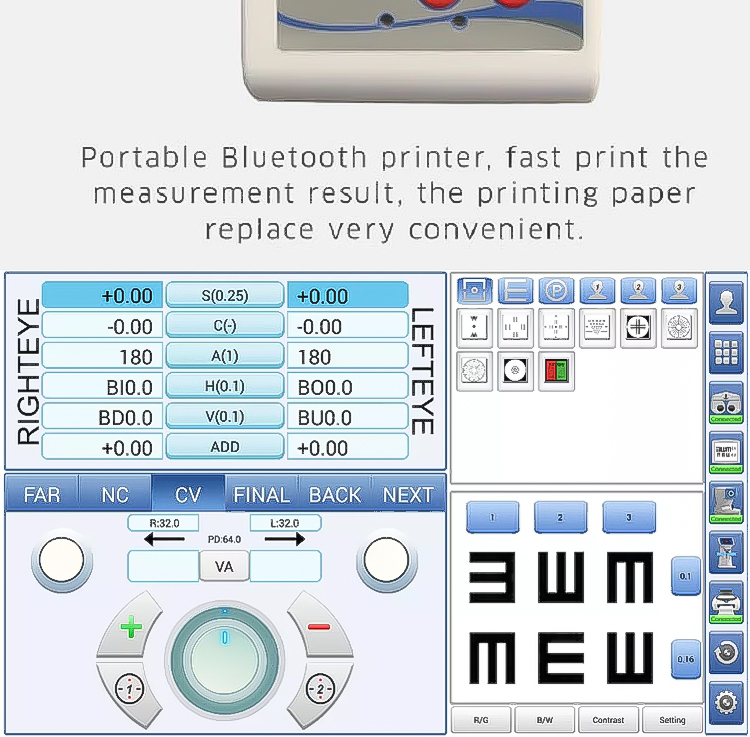

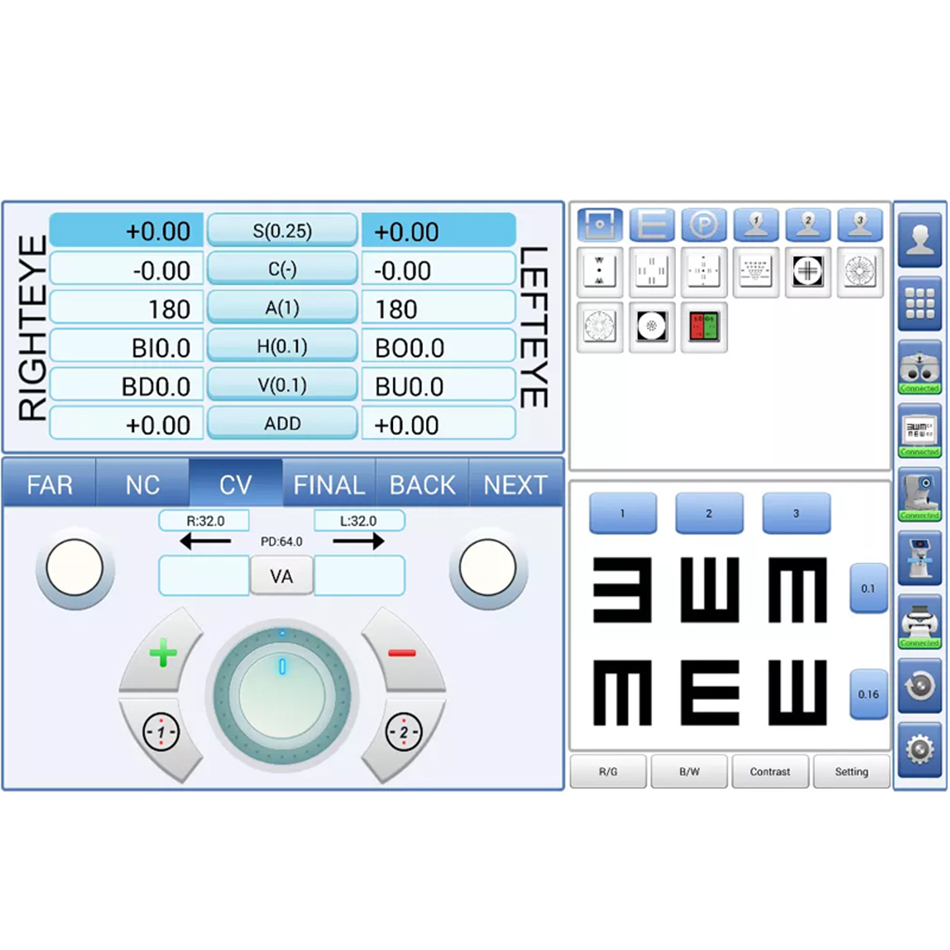

The first auto phoropter in China, that can be controlled by a tablet. More suitable for boutique shops Blue tooth communication, providing more flexibility in space More simple operation interface, ensuring more efficient optometry experience Supports customized programming, easier for chain stores to unify the optometry standards Can connect to remote refraction system to provide hierarchical diagnosis services.
Specifications
Measurement range | Sphere lens | -19.00D~+16.75D(for common check) |
accuracy 0.25D/0.50D/1.00D/3.00D | ||
Cylinder lens | -8.75D~+8.75D(accuracy 0.25D | |
Axis | 0~180º(accuracy1°/5° | |
PD range | far vision 52-80mm, near vision 48-76mm,accuracy0.5/1mm | |
Rotating prism | 0~20△(accuracy 0.1Δ/0.5Δ | |
Cross cylinder | ±0.25D | |
retinoscopy compensator | +1.50D(distance 67cm),2.00D(distance50cm) | |
Auxiliary Lens | Small hole lens | binocular |
Maldox rod | right(red,horizontal), left (green, vertical) | |
green/red filter | right (red), left(green) | |
Polarized filter | right (135º/45º), left (45º/135º) | |
Split prism | right (3△BU,6△BU),left (3△BD,10△BI ) | |
PD lens | binocular(cross) | |
Fixed cross cylinder | ±0.50D(axis fixed at 90° | |
other | Size and Weight | 381(W)*286(H)*110(D)mm (PD=64mm) ,weight 3.8k |
Power supply | AC100-240V ,50Hz/60Hz, 85W |
