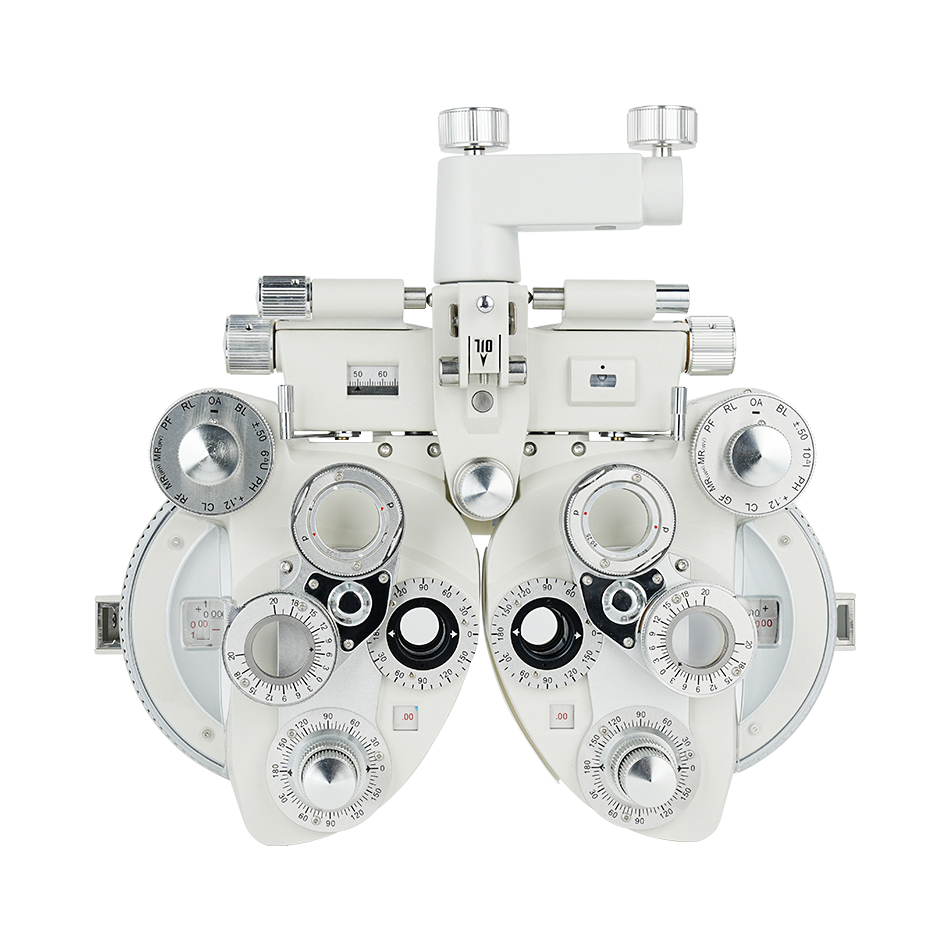

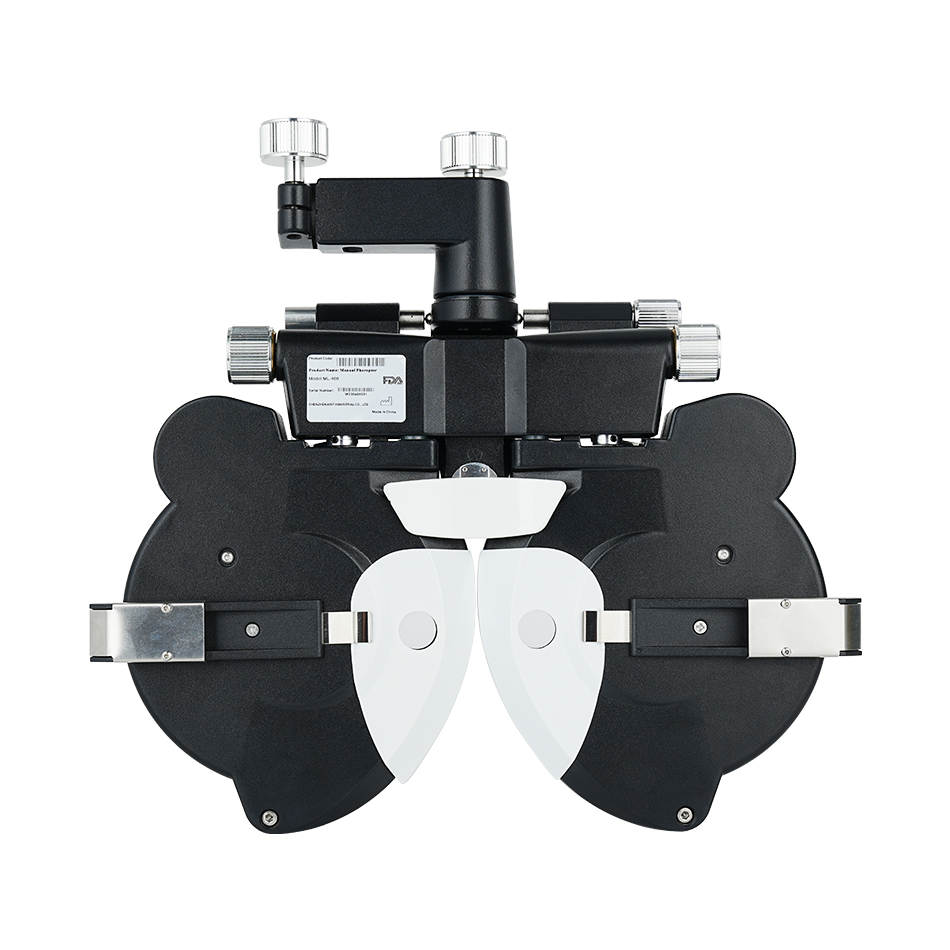

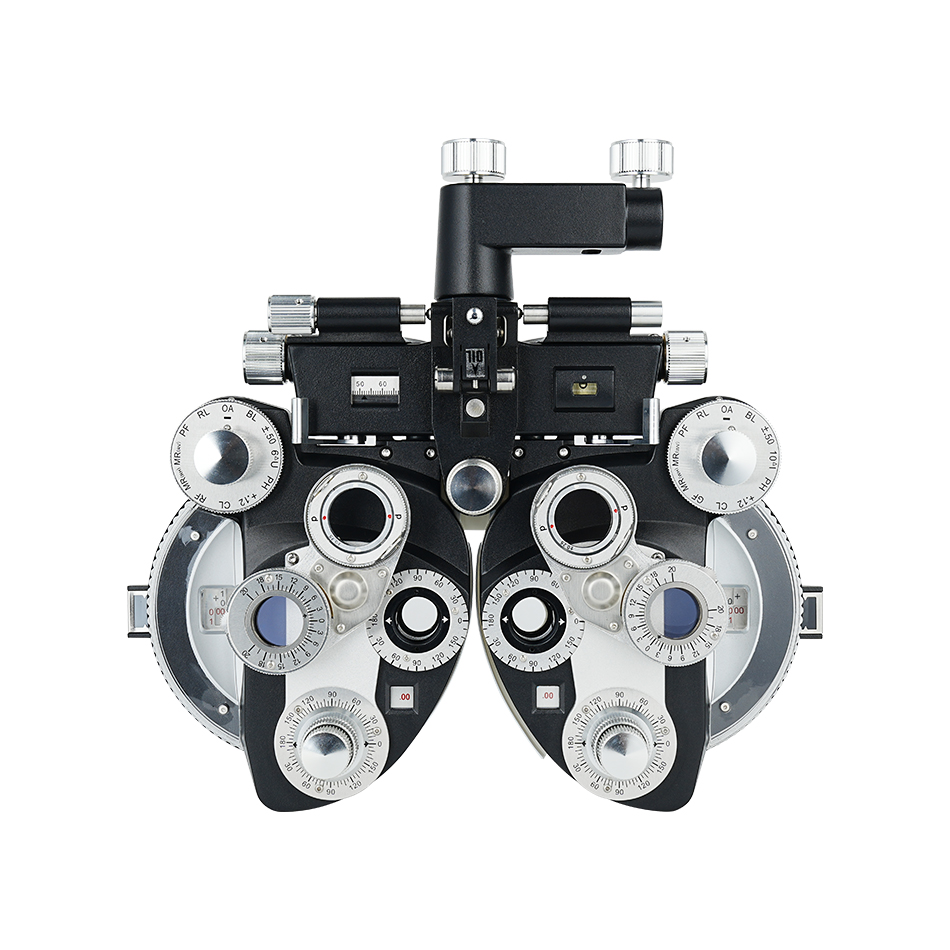

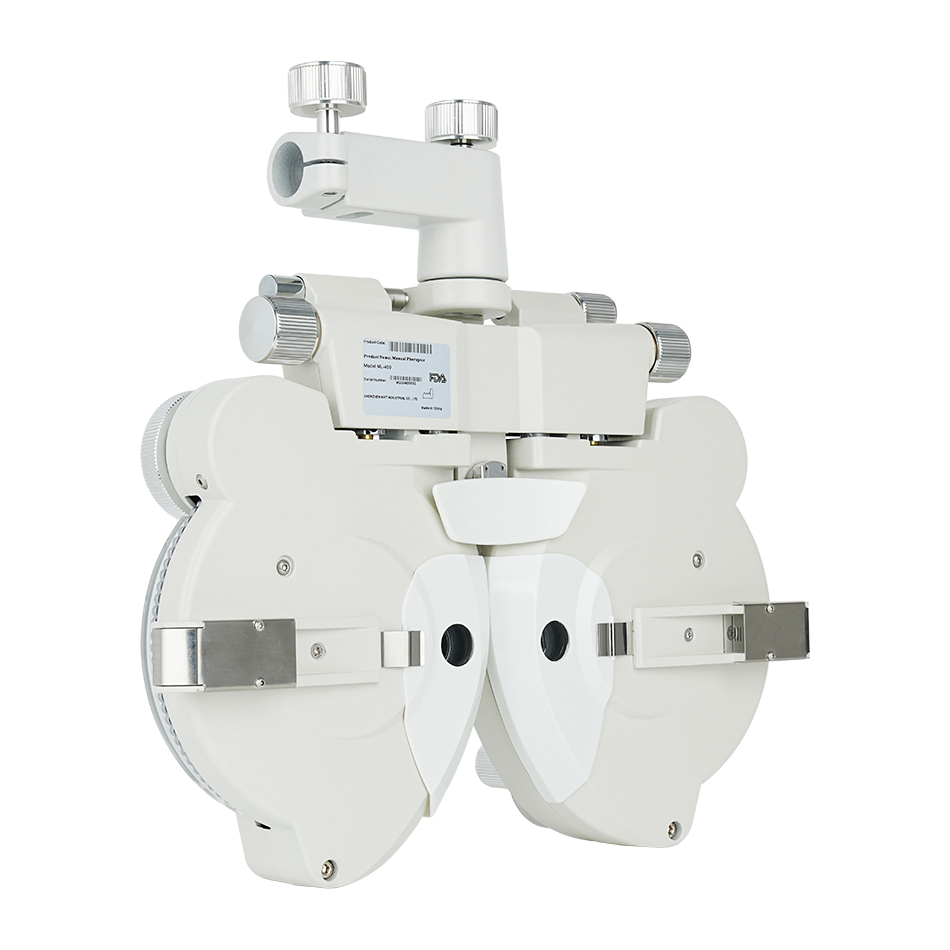

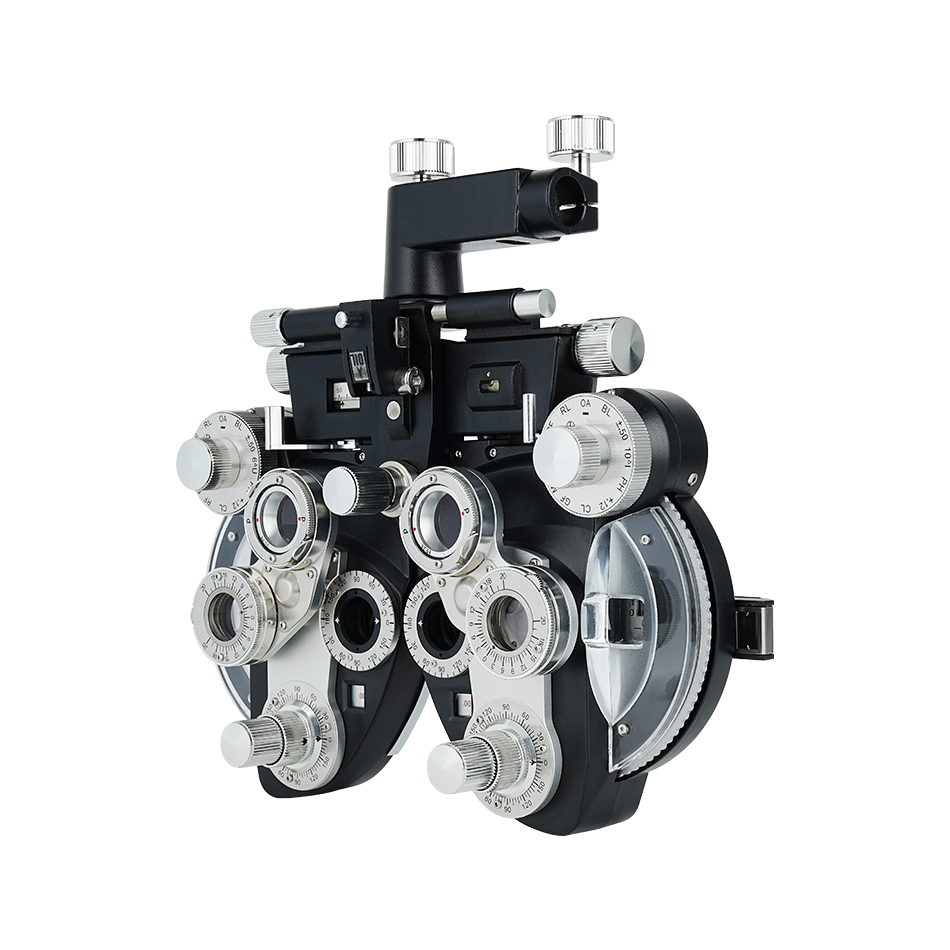

ML-400 Manual Phoropter is designed with classic appearance and professional technology. The ML-400 phoropter features precise measurement, and it is easy and convenient ot operate.
Features
1.Classic appearance, professional technology, precise measurement, easy and convenient operating, and best price value
2.All the lens are anti-reflection coated
3.All Cross-Cylinder lens are Manus lens
4.New leveling mechanism
5.Fingertip adjustment for sphere power control
6.Unique new convergence system mechanism
7.Wide range of auxiliary lens combinations
8.Precision machined to finest tolerances
9.This is suitable for eyesight examination in spectacles shops, department of ophthalmology in hospitals, schools
Specifications
Sphere Power | Range | +16.75 to -19.00 diopters |
Step | 0.25 diopters | |
Range | 0.00 to -6.00 diopters(0.00 to -8.00 diopters with additional lens of -2.00 diopters) | |
Cylinder Power | Step | 0.25 diopters |
Cylinder Axis | 0 to 180°, 5°step | |
Cross Cylinder | ±0.25 diopters | |
Rotary Prisms | 0 to 20, 1 step | |
(O)-Open aperture (two positions) | ||
(R)-Retinoscopic lens, +1.50D | ||
(P)-Polarizing lens 45-left eye, 135-right eye | ||
(WMV) or (RMV)-Maddox rod, vertical white-left eye red-right | ||
(WMV) or (RMV)-Maddox rod, horizontal white-left eye red-right | ||
Auxiliary Lens Dial | (RL)-Red lens | |
(+.12)-+0.12D sphere | ||
(PH)-Pin hole | ||
(10 L) or (6 U)-10 base-in-left eye | ||
6 base-up-right eye | ||
(Dissociating prisms)(±.50)-±0.50 fixed cross cylinder | ||
(OC)-Occluder | ||
PD Adjustment | 48~75MM, 1MM steps | |
Standard Accessory Lenses | wo-.12D and -2.00 cylinder lenses, two plano lenses for sealing front opening | |

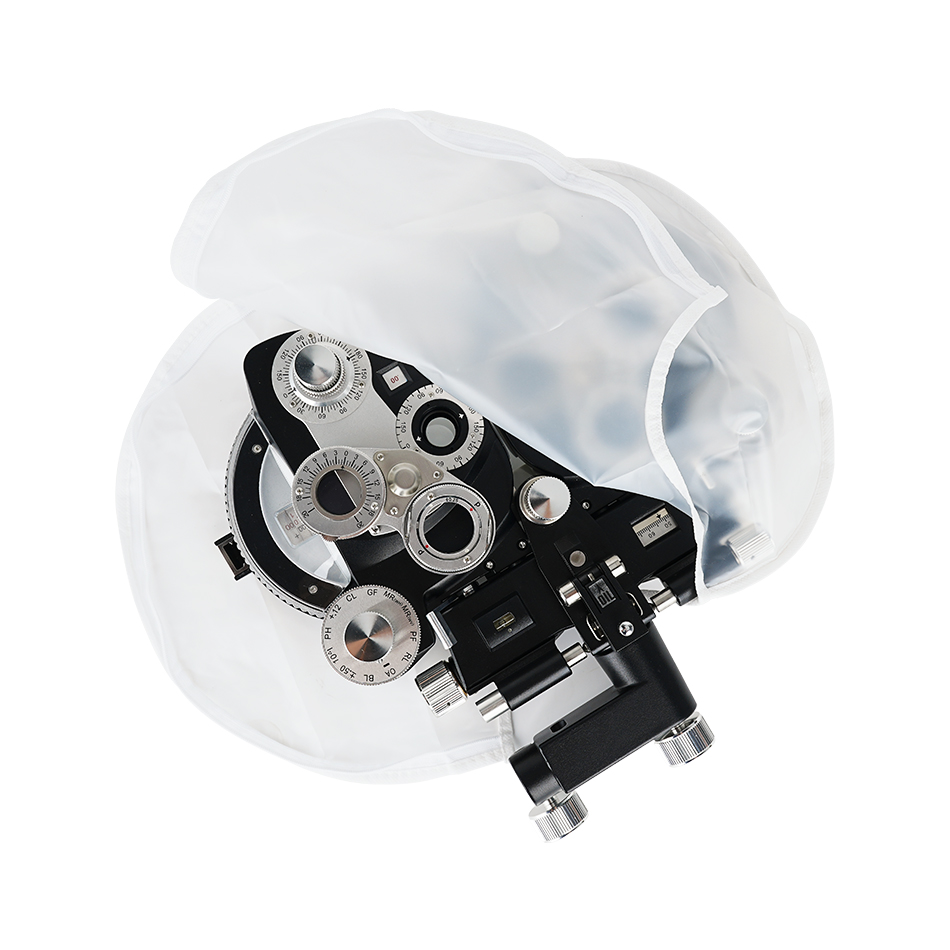

Standard Accessories | 1 near point card with holder and reading rod, dust cover, face shield, accessory case for lenses | |
Dimensions | 400*350*160MM | |
Net Weight | 4.38 KGS | |
